Front Seat Control Switch: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Driver seat shown, passenger seat similar.

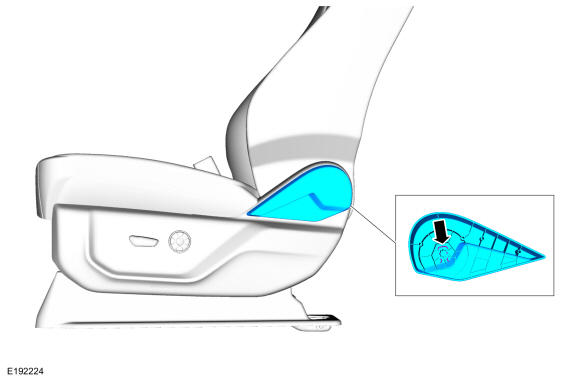

- If equipped. Remove the clip and the recline handle.

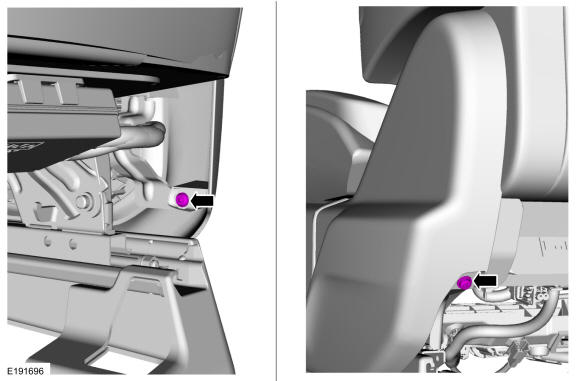

- Remove the side shield screws.
-
NOTE: Side shield with power recline seat shown, all others similar.

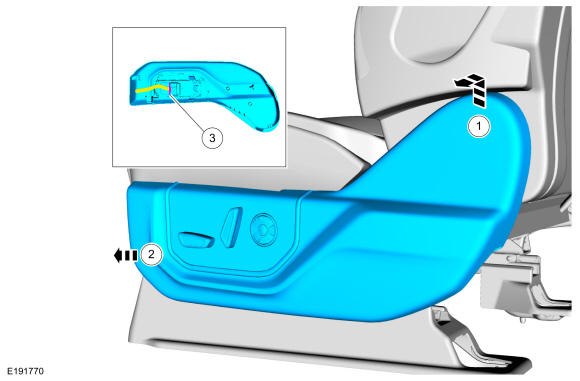

Remove the side shield.
- Lift up on the rear of the side shield and pull outward.
- Push the side shield forward.
- Disconnect the electrical connector.

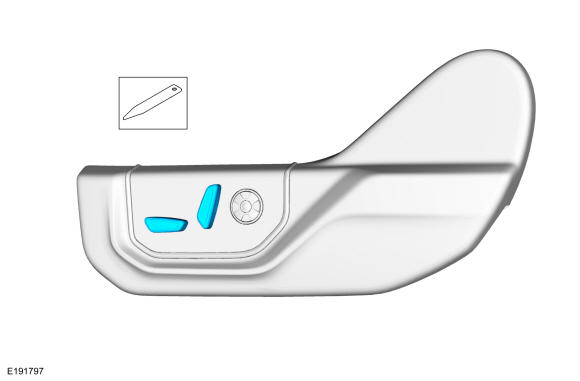

- Remove the seat control switch knob(s).

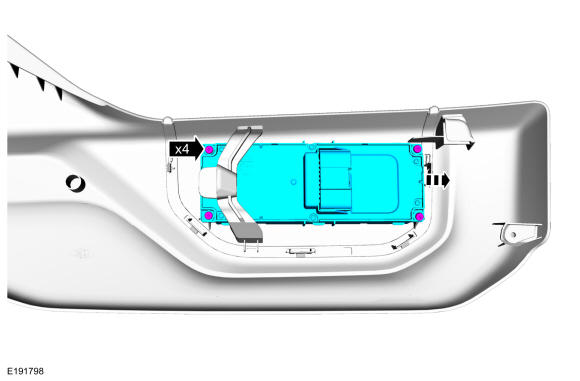

- Remove the screws and the seat control switch.
