Tie Rod: Installation

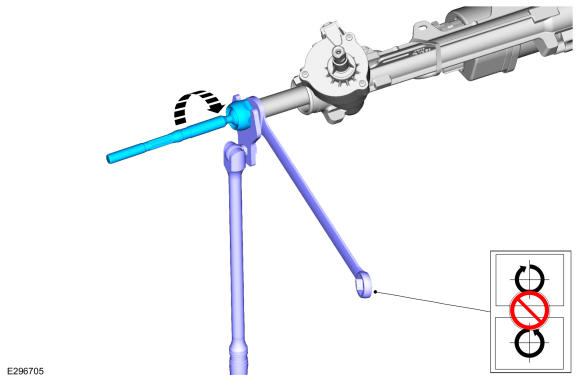

NOTE: Place the steering gear at the center position and hold the steering gear rack while tightening the tie rod. Use an appropriate-sized wrench on the flat/teeth of the rack to resist rotation and to prevent damage during installation of the tie rod.

NOTE: The help of an assistant may be necessary to torque the RH tie rod.

Remove the tie rod.

Torque: 89 lb.ft (120 Nm)

Courtesy of FORD MOTOR COMPANY

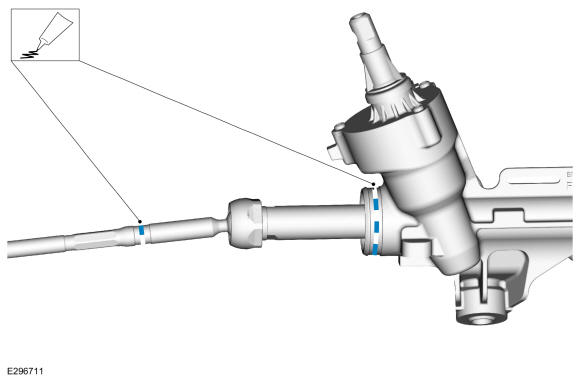

Apply the specified grease to the steering gear-to-bellows boot mating surface and bellows boot groove on the tie-rod.
Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

Courtesy of FORD MOTOR COMPANY

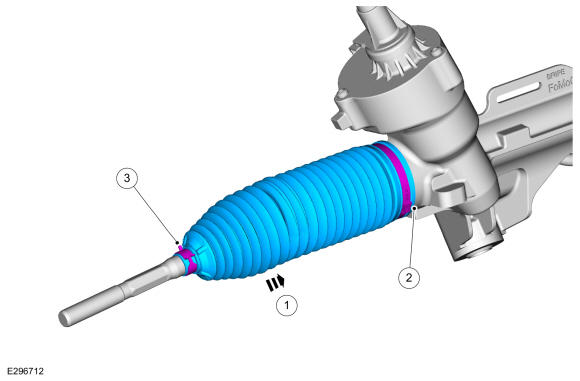

1. Install the new steering gear bellows boot.
2. Install the new inner bellows boot clamp. Use the General Equipment: Boot Clamp Pliers
3. Install the new outer bellows boot clamp.
Courtesy of FORD MOTOR COMPANY
If equipped. Install the underbody shield. Refer to: Engine Front Undershield .

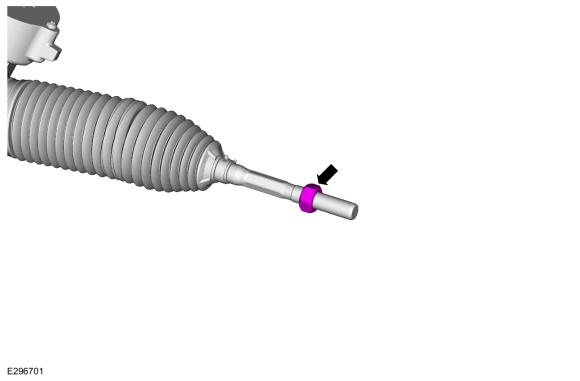

Thread the tie rod end jam nut onto the tie rod.

Courtesy of FORD MOTOR COMPANY
Install the tie rod end. Refer to: Tie Rod End .
