Steering Wheel: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Make sure the wheels and steering wheel is in the straight ahead position.

NOTE: Vehicle without heated steering wheel shown others similar.

Remove the driver airbag. Refer to: Driver Airbag .

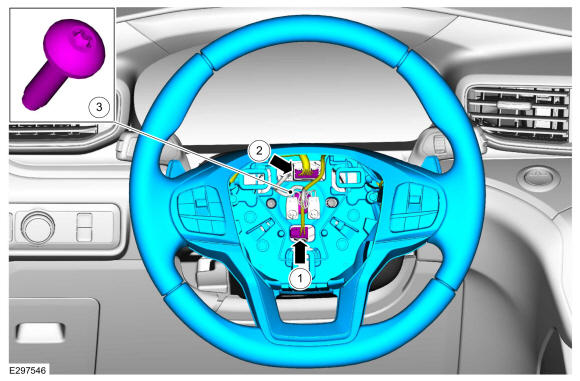

1. NOTE: If equipped with heated steering wheel

  Disconnect the heated steering wheel electrical connector.
2. Disconnect the steering wheel electrical connector.
3. Remove the steering wheel bolt and the steering wheel.
  Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY

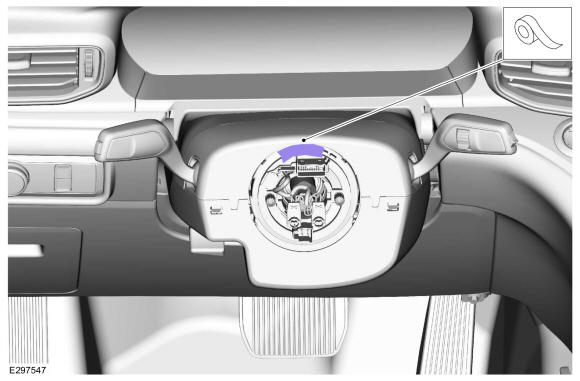

NOTE: Make sure the clockspring rotor does not rotate.

NOTE: Make sure the clockspring pins are not bent or damaged.

Tape the clockspring rotor to the outer housing to keep it from rotating. Use the General Equipment: Adhesive Tape

Courtesy of FORD MOTOR COMPANY
