Electronic Engine Controls - LH side

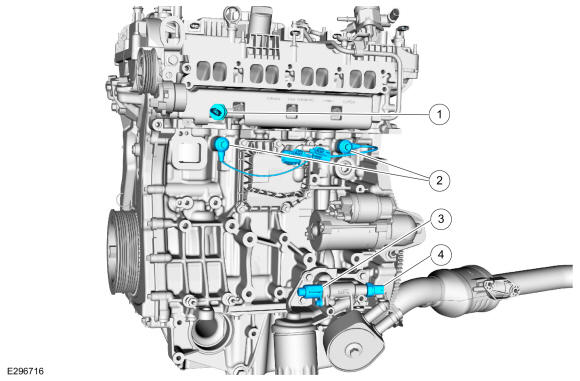

GFD513833Courtesy of FORD MOTOR COMPANY
Item Description
1 FRP sensor
2 KS sensors
3 Oil Pressure Control Solenoid
4 EOP sensor
