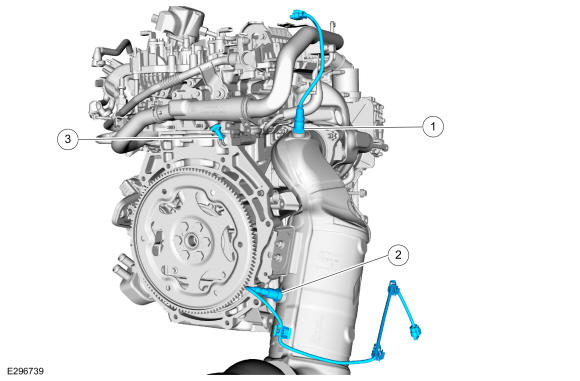

Electronic engine Controls - Rear of engine

GFD513834Courtesy of FORD MOTOR COMPANY
Item Description
1 HO2S (HO2S) sensor
2 Catalyst Monitor sensor
3 ECT sensor
