Body Control Module B (BCMB): Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Adjustable brake pedal and bracket shown, fixed brake pedal and bracket similar.
All vehicles
-
NOTE: This step is only necessary if the BCMB is being replaced.
Using a diagnostic scan tool, begin the PMI process for the BCMB following the on-screen instructions.
Vehicles equipped adjustable pedals
- Move the pedals to the full forward (away from the driver) position.
All vehicles

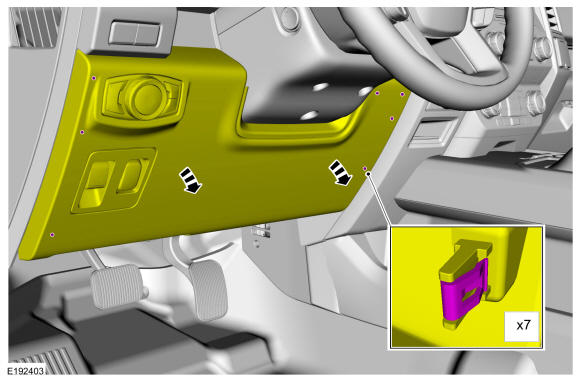

- Pull outward on the steering column opening cover detaching the clips and allow the cover to hinge downward.

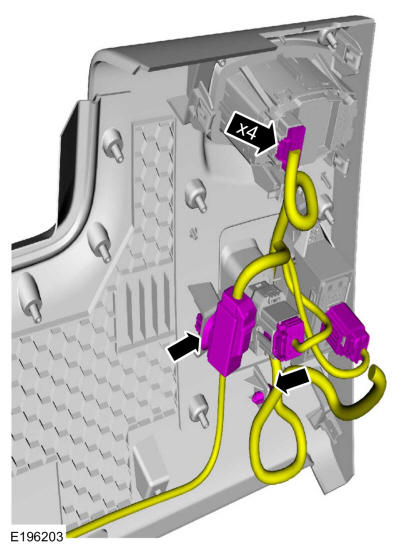

- Disconnect the electrical connector(s) and the wiring retainer(s).
-
NOTE: The steering column opening cover brace is removed for clarity.

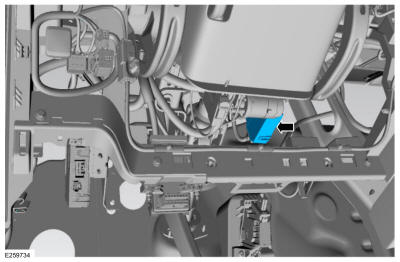

The BCMB is located above the accelerator pedal and mounted to an instrument panel brace.
-
NOTE: The BCMB bracket bolts face the bulkhead.

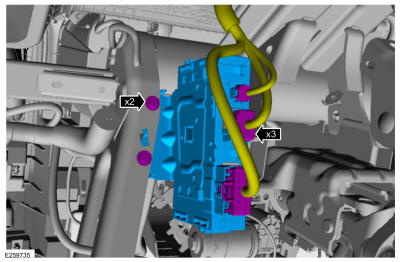

Disconnect the electrical connectors, remove the bolts and the BCMB.
Torque:
80 lb.in (9 Nm)
