Section 13 (Engine - 3.0L ECOBOOST): Removal: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	100-001 (T50T-100-A) Slide Hammer
Courtesy of FORD MOTOR COMPANY	205-832 Remover, Halfshaft TKIT-2006C-FFMFLM TKIT-2006C-LM TKIT-2006C-ROW
Courtesy of FORD MOTOR COMPANY	303-1246 Engine Spreader Bar TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1634 Lift Eyes (2) TKIT-2014D-ROW3 TKIT-2014D-FL_ROW
Adjustable Mounting Arm
Powertrain Jack
Wooden Block

Materials

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2. Using a holding device, hold the steering wheel.

   Courtesy of FORD MOTOR COMPANY

3. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
4. Disconnect the battery ground. Refer to: BATTERY DISCONNECT AND CONNECT
5. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
6. Recover the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant .
7. Remove the bolts and the suspension support bar.

   Courtesy of FORD MOTOR COMPANY

8. Remove the engine oil filter and drain the engine oil. Refer to: Engine Oil Draining and Filling .
9. Remove the following items:
   1. Refer to: Cowl Panel .
   2. Refer to: Degas Bottle .
   3. Refer to: Air cleaner .
   4. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
   5. Refer to: Air cleaner Outlet Pipe LH .
   6. LH side. Refer to: Charge Air Cooler (CAC) Intake Pipe .

10. Release the clamp and remove the coolant hose.

    Courtesy of FORD MOTOR COMPANY

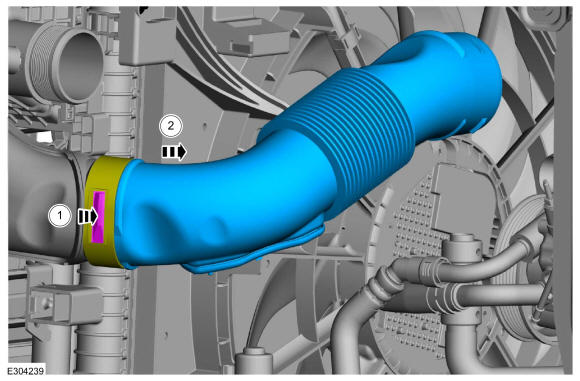

11. 1. Depress the raised area of the pipe.
    2. Remove the air cleaner inlet pipe.

    Courtesy of FORD MOTOR COMPANY

12. 1. Loosen the clamp and remove the air cleaner outlet pipe.
    2. Loosen the clamps and remove the CAC inlet pipe.

    Courtesy of FORD MOTOR COMPANY

13. Release the clamp and disconnect the lower radiator hose.
    • Loosen the clamp and disconnect the upper radiator hose.
    • Position the hoses aside.

    Courtesy of FORD MOTOR COMPANY

14. Release the clamp and disconnect the coolant hose.
    • Disconnect the coolant hose quick release coupling.
    • Position the hoses aside.

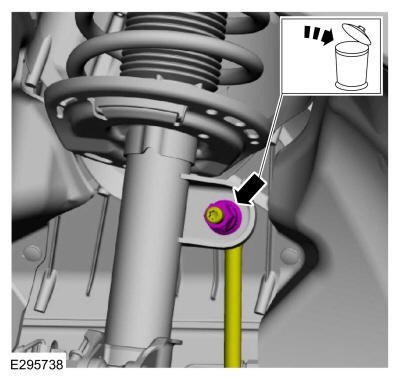

    Courtesy of FORD MOTOR COMPANY

15. Release the clamps and disconnect the oil cooler hoses.
    • Position the hoses aside.

    Courtesy of FORD MOTOR COMPANY

16. Remove the bolt and position the ground cable aside.

    Courtesy of FORD MOTOR COMPANY

17. Remove the generator. Refer to: Generator - 3.0L EcoBoost .

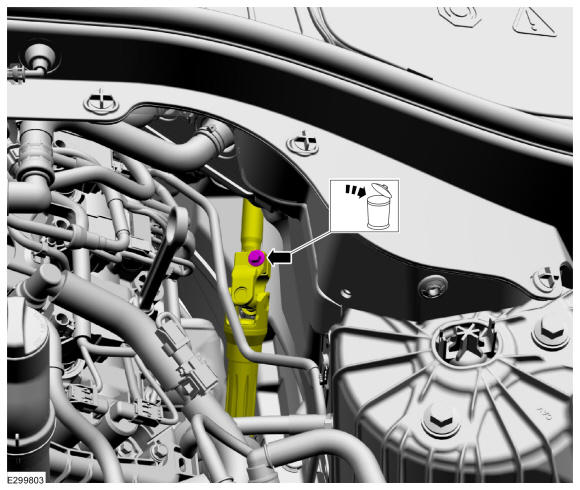

18. • Remove the bolt and disconnect the steering shaft.
    • Discard the bolt.

    Courtesy of FORD MOTOR COMPANY

19. • Disconnect the center PCM electrical connector and wiring harness retainer.
    • Disconnect the engine harness electrical connector, retainer and position the engine wiring harness on the engine.

    Courtesy of FORD MOTOR COMPANY

20. • Release the clamp and disconnect the heater hose.
    • Remove the bolts and position the heater hose brackets aside.
    • Remove the bolts and the intake manifold bracket.

    Courtesy of FORD MOTOR COMPANY

21. NOTE: When removing or installing the fuel injection pump noise insulator, spreading the openings will reduce the risk of damage.
    1. Detach the coolant hose retainers.
    2. Remove the fuel injection pump noise insulator.

    Courtesy of FORD MOTOR COMPANY

22. Remove the nuts, the bolt and the high-pressure fuel pump shield.

    Courtesy of FORD MOTOR COMPANY

23. Remove the bolt and position the ground cable aside.

    Courtesy of FORD MOTOR COMPANY

24. Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

25. • Disconnect the fuel supply tube quick release coupling. Refer to: QUICK RELEASE COUPLING .
    • Disconnect the EVAP supply tube quick release coupling. Refer to: QUICK RELEASE COUPLING .

    Courtesy of FORD MOTOR COMPANY

26. Remove the front wheels and tires. Refer to: Wheel and Tire .
27. • Disconnect the A/C wiring harness electrical connectors.
    • Detach the wiring harness retainer.
    • Remove the nuts and disconnect the A/C lines from A/C compressor.
    • Discard the O-ring seal.
    • Make sure that all openings are sealed.

    Courtesy of FORD MOTOR COMPANY

28. Remove the pin-type retainers and the steering shield from the LH subframe.

    Courtesy of FORD MOTOR COMPANY

29. Remove the splash shield pin-type retainer from the LH subframe and position aside.

    Courtesy of FORD MOTOR COMPANY

30. • Disconnect the vent hose.
    • Disconnect the wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

31. Loosen the clamps and disconnect the coolant hoses.

    Courtesy of FORD MOTOR COMPANY

32. Remove the steering shield pin-type retainers from the RH subframe.

    Courtesy of FORD MOTOR COMPANY

33. Remove the pin-type retainers and the steering shield from the RH subframe.

    Courtesy of FORD MOTOR COMPANY

34. Remove the splash shield pin-type retainer from the RH subframe.

    Courtesy of FORD MOTOR COMPANY

35. Disconnect the wiring harness electrical connector from the RH transfer case.

    Courtesy of FORD MOTOR COMPANY

36. Detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

37. • Disconnect the RH transfer case vent hose.
    • Disconnect the steering gear wiring harness electrical connectors, wiring harness retainers and position the harness to the RH side of vehicle.

    Courtesy of FORD MOTOR COMPANY

38. Remove the following items:
    1. RH and LH side. Refer to: Brake Disc .
    2. RH and LH side. Refer to: Halfshaft .
    3. If equipped with 10R60 transmission. Refer to: Transmission - 3.0L EcoBoost .
    4. If equipped with 10R80 transmission. Refer to: Transmission - 3.0L EcoBoost .
    5. RH side. Refer to: Exhaust Flexible Pipe .

39. Detach the retainer and remove the vent hose(s).

    Courtesy of FORD MOTOR COMPANY

40. Detach the wiring harness retainers from the LH subframe.

    Courtesy of FORD MOTOR COMPANY

41. • Disconnect the catalyst monitor sensor electrical connector.
    • Detach the wiring harness retainers from the RH subframe.

    Courtesy of FORD MOTOR COMPANY

42. • Disconnect the RH heated oxygen sensor electrical connector.
    • Detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

43. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

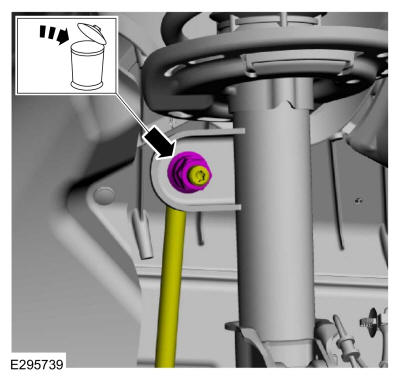

    Remove the nut and position the LH sway bar link aside.

    Courtesy of FORD MOTOR COMPANY

44. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the RH sway bar link aside.

    Courtesy of FORD MOTOR COMPANY

45. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.
    • Remove the LH engine mount nut.
    • Discard the engine mount nut.

    Courtesy of FORD MOTOR COMPANY

46. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.
    • Remove the RH engine mount nut.
    • Discard the engine mount nut.

    Courtesy of FORD MOTOR COMPANY

47. Remove the bolt and position the RH underbody shield aside.

    Courtesy of FORD MOTOR COMPANY

48. Remove the bolt and position the LH underbody shield aside.

    Courtesy of FORD MOTOR COMPANY

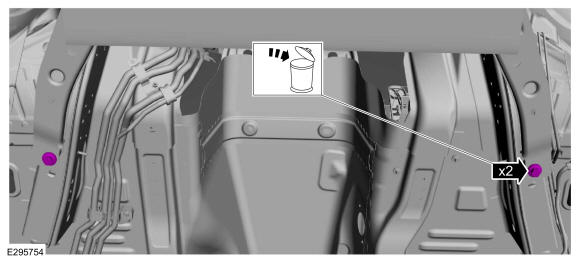

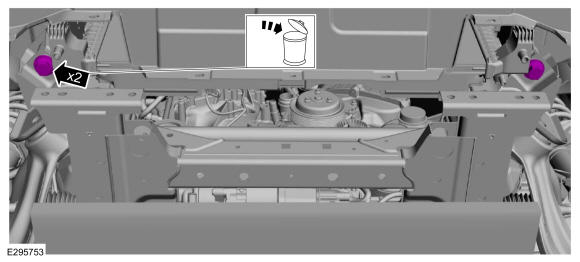

49. • Remove the middle subframe bolts.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

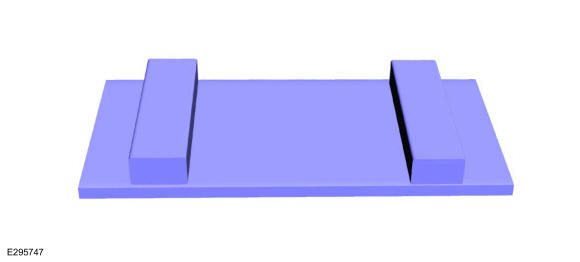

50. Position two boards onto the powertrain jack as shown.

    Courtesy of FORD MOTOR COMPANY

51. Position the powertrain jack and blocks of wood under the powertrain and subframe. Use the General Equipment: Powertrain Jack, Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

52. Install, adjust and tighten the adjustable mounting arm. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

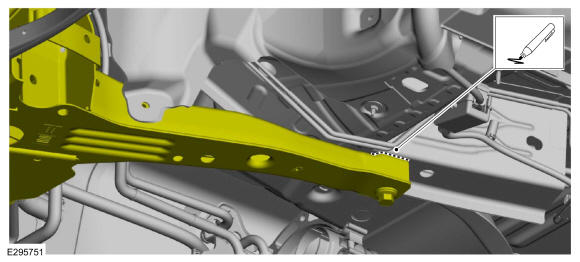

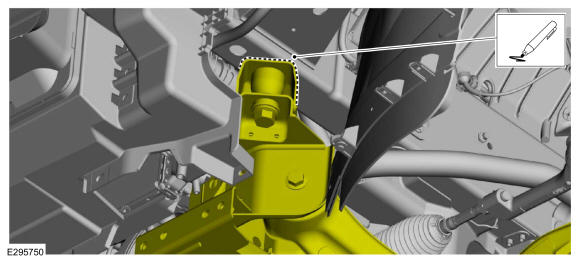

53. Mark the front subframe location.

    Courtesy of FORD MOTOR COMPANY

54. Mark the rear subframe location.

    Courtesy of FORD MOTOR COMPANY

55. Remove the front radiator support bar bolts.

    Courtesy of FORD MOTOR COMPANY

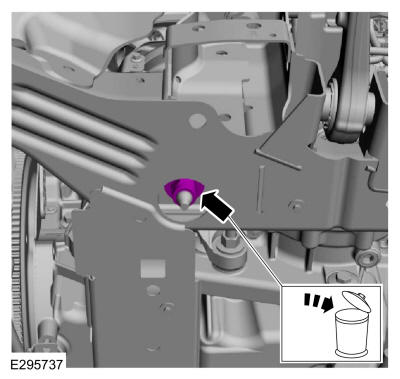

56. • Remove the front subframe bolts.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

57. • Remove the rear subframe bolts.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

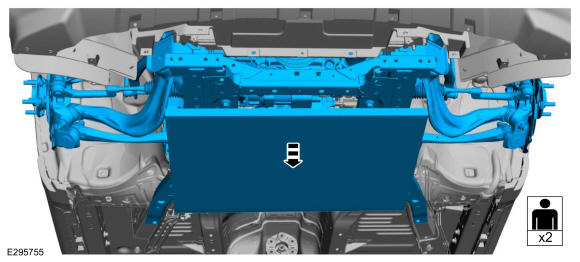

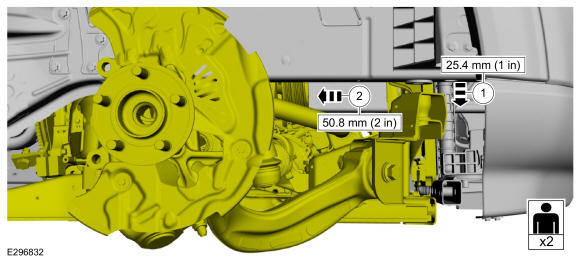

58. 1. With the aid of an assistant and using the powertrain jack, lower the powertrain and subframe 25.4 mm (1 in).
    2. With the aid of an assistant and using the powertrain jack, position the powertrain and subframe rearwards 50.8 mm (2 in).

    Courtesy of FORD MOTOR COMPANY

59. With the aid of an assistant and using the powertrain jack, lower the powertrain and subframe as an assembly.

    Courtesy of FORD MOTOR COMPANY

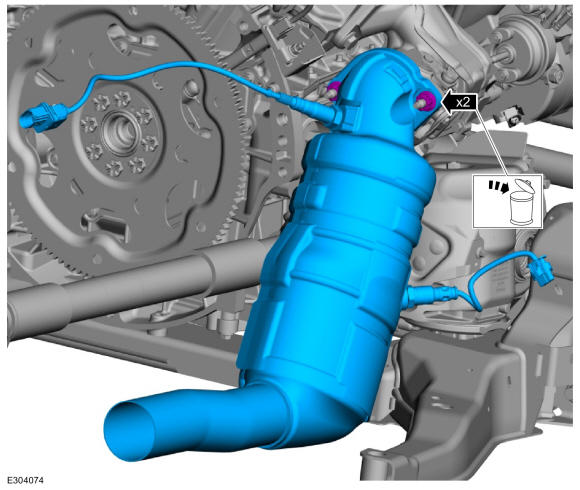

60. • Remove the nuts and the RH catalytic converter.
    • Discard the nuts.

    Courtesy of FORD MOTOR COMPANY

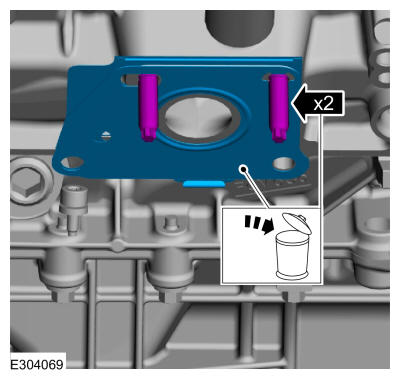

61. • Remove and discard the gasket.
    • If damaged, remove and discard the studs.

    Courtesy of FORD MOTOR COMPANY

62. Remove the fasteners and the heat shield.

    Courtesy of FORD MOTOR COMPANY

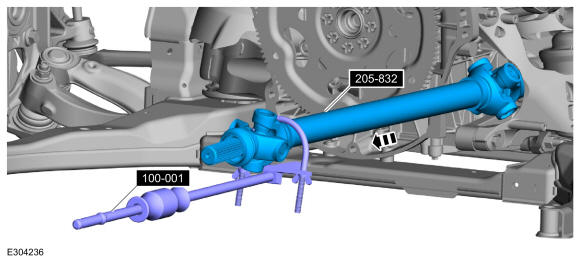

63. Using the special tools, remove the front drive shaft. Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer, 205-832 Remover, Halfshaft.

    Courtesy of FORD MOTOR COMPANY

64. Remove and discard the front axle pinion stem circlip.

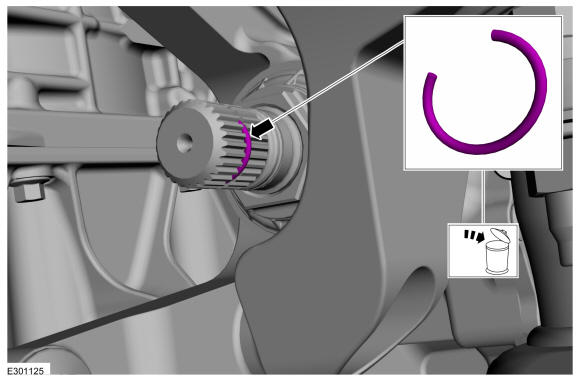

    Courtesy of FORD MOTOR COMPANY

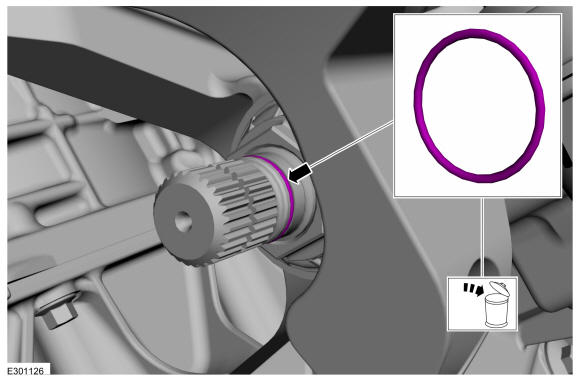

65. Remove and discard the front axle pinion stem O-ring.

    Courtesy of FORD MOTOR COMPANY

66. Remove the fasteners and the TC oil return tube.

    Courtesy of FORD MOTOR COMPANY

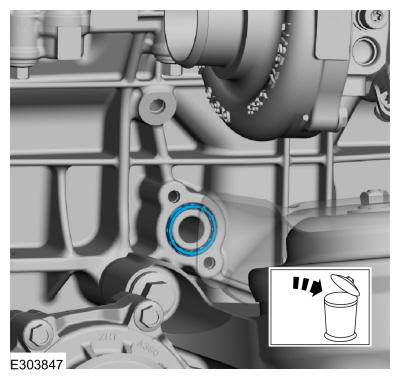

67. Remove and discard the TC oil return tube tube-to-engine block gasket.

    Courtesy of FORD MOTOR COMPANY

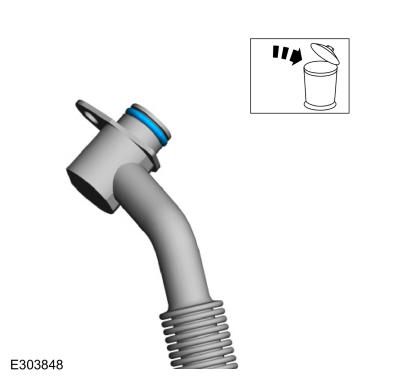

68. Remove and discard the TC oil return tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

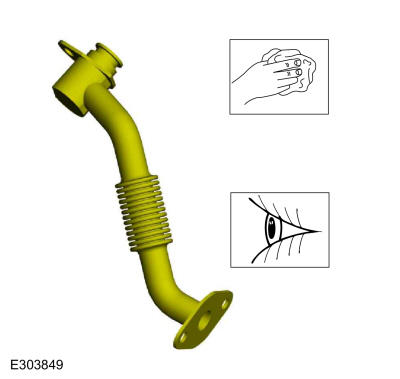

69. NOTE: Inspect for blockage in the turbocharger tube. Check the tube, the sealing surfaces and the flange for flatness and damage. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a NYLON brush to clean. DO NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

    Clean and inspect the TC oil return tube.

    Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

    Courtesy of FORD MOTOR COMPANY

70. Remove the bolts and the heat shield.

    Courtesy of FORD MOTOR COMPANY

71. • Remove the TC coolant supply tube bolt.
    • Release the clamp and disconnect the TC coolant return hose.

    Courtesy of FORD MOTOR COMPANY

72. • Remove the TC oil supply tube bolt.
    • Release the clamp and disconnect the vacuum hose.

    Courtesy of FORD MOTOR COMPANY

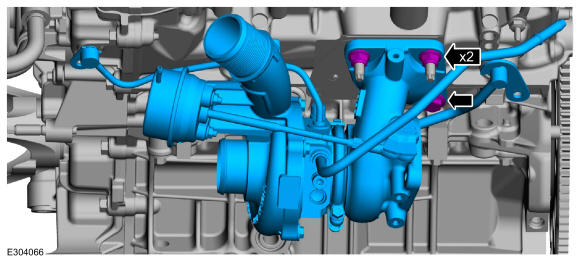

73. Remove the fasteners and the TC.

    Courtesy of FORD MOTOR COMPANY

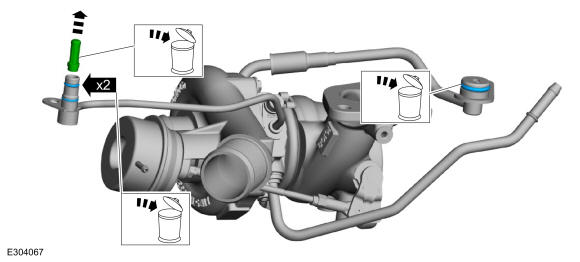

74. • Remove and discard the TC oil supply tube filter and O-ring seals.
    • Remove and discard the TC coolant supply tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

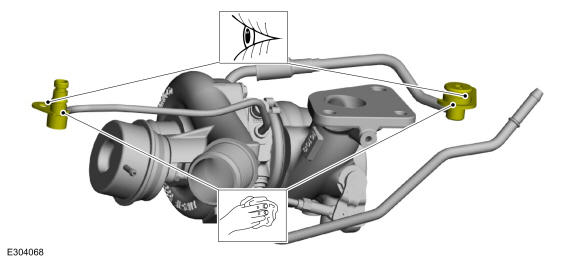

75. NOTE: Inspect the turbocharger tubes and the sealing surfaces. Ensure that the retaining brackets are not bent, check for square-ness of the retaining brackets to the O-ring areas. Use brake cleaner and a NYLON brush to clean. DO NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
    • Clean and inspect the TC oil supply tube.

      Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

    • Clean and inspect the TC coolant supply tube.

      Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

    Courtesy of FORD MOTOR COMPANY

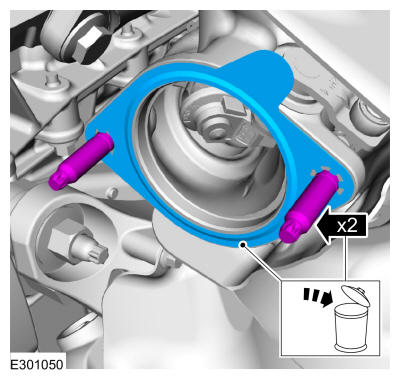

76. • Remove and discard the TC gasket.
    • If damaged, remove and discard the TC stud(s).

    Courtesy of FORD MOTOR COMPANY

77. Install Special Service Tool: 303-1634 Lift Eyes (2).

    Courtesy of FORD MOTOR COMPANY

78. Install Special Service Tool: 303-1634 Lift Eyes (2).

    Courtesy of FORD MOTOR COMPANY

79. Install commercially available quick links to the spreader bar and lift eyes. Install Special Service Tool: 303-1246 Engine Spreader Bar.

    Courtesy of FORD MOTOR COMPANY

80. Install the floor crane and chain.

    Courtesy of FORD MOTOR COMPANY

81. Remove. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

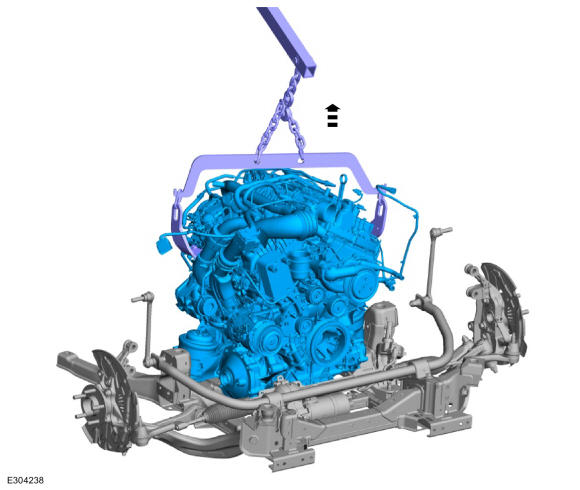

82. Using the floor crane, remove the engine from subframe.
