Tie Rod End: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire .

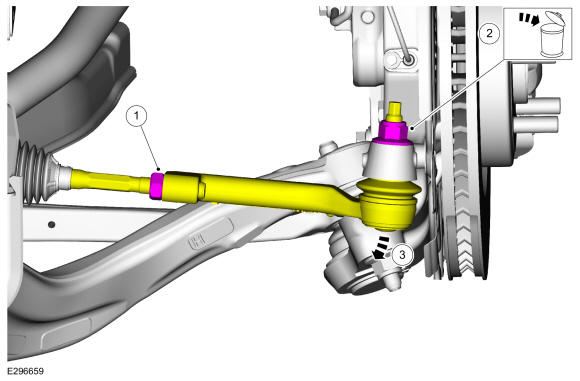

1. Loosen the tie rod end jam nut.
  Torque: 35 lb.ft (48 Nm)
2. Remove and discard the outer tie rod end nut.
  Torque: 52 lb.ft (70 Nm)
3. NOTE: Do not use a hammer to separate the outer tie-rod end from the wheel spindle or damage to the wheel spindle may result.

  NOTE: Use care when installing the tie rod separator or damage to the outer tie-rod end boot may occur.

  Separate the outer tie rod end from the wheel knuckle. Use the General Equipment: Tie Rod End Remover
Courtesy of FORD MOTOR COMPANY

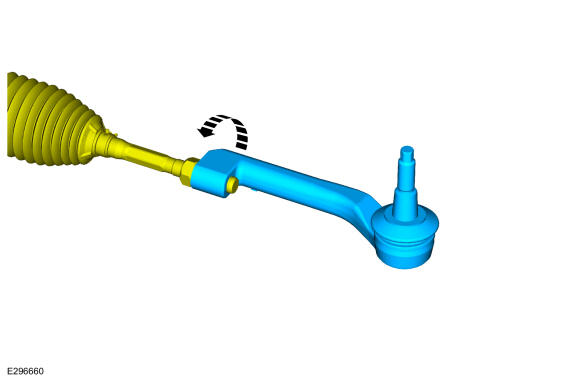

NOTE: Count and record the number of turns required to remove the outer tie-rod end for reference during installation.

Remove the tie-rod end.

Courtesy of FORD MOTOR COMPANY
