Front Bumper: Disassembly

All vehicles

1. Remove the front bumper. Refer to: Front Bumper .
2. If equipped. Remove the tow hook covers.

   Torque

   : 9 lb.in (1 Nm)

   Courtesy of FORD MOTOR COMPANY

   Vehicles With: Active Air Dam

3. LH side. Disconnect the AAD electrical connector, detach the retainer and position the wiring harness aside.

   Courtesy of FORD MOTOR COMPANY

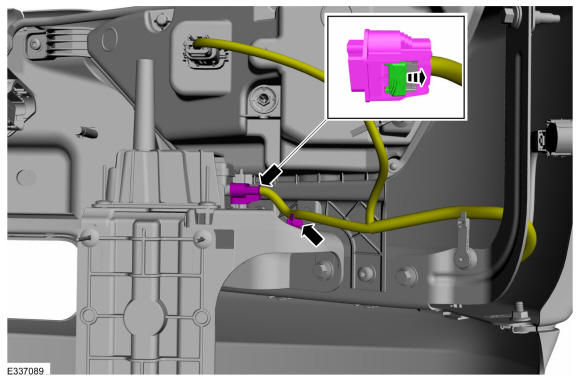

4. RH side. Release the locking tab and disconnect the AAD electrical connector. Detach the retainer and position the wiring harness aside.

   Courtesy of FORD MOTOR COMPANY

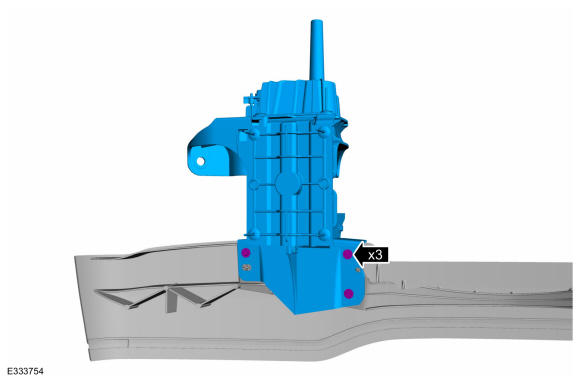

5. On both sides. Remove the bolts and the AAD assembly.

   Torque

   : 18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

6. On both sides. Remove the bolts and the AAD actuator.

   Torque

   : 27 lb.in (3 Nm)

   Courtesy of FORD MOTOR COMPANY

   All vehicles

7. On both sides.
   1. If equipped. Disconnect the retainer and position the wiring harness aside.

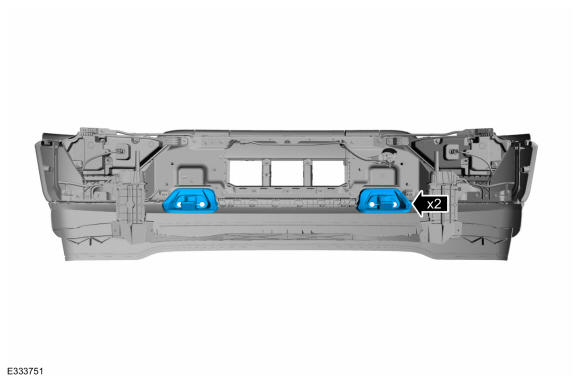

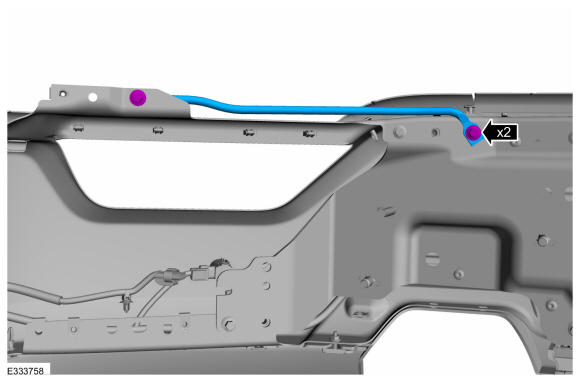

   2. Remove the bolts and the front bumper outer bracket.

      Torque

      : 18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

8. On both sides. Remove the bolts and the molding assembly.

   Torque

   : 44 lb.in (5 Nm)

   Courtesy of FORD MOTOR COMPANY

   Vehicles With: Front Fog Lamps

9. On both sides. Disconnect the fog lamp electrical connector, detach the retainer and position the wiring harness aside.

   Courtesy of FORD MOTOR COMPANY

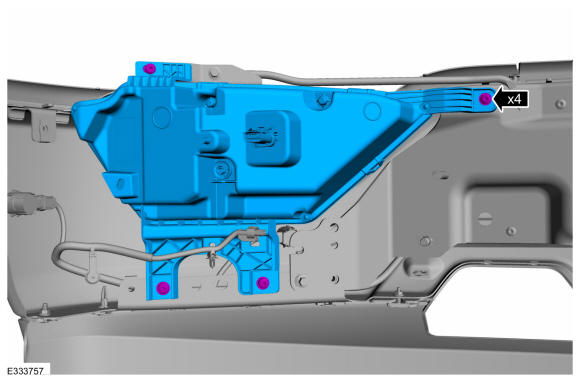

10. On both sides. Remove the bolts and the fog lamp assembly.

    Torque

    : 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

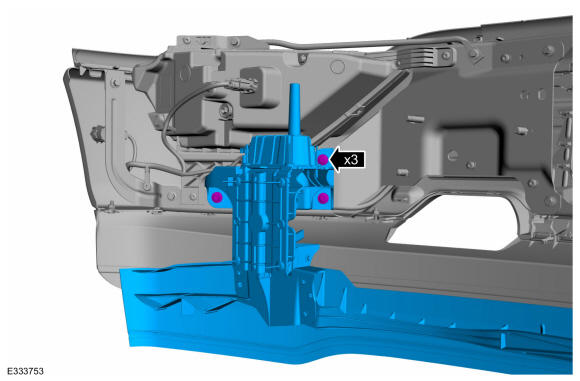

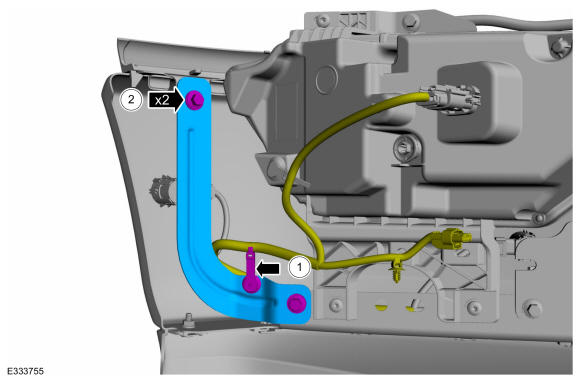

11. If equipped, on both sides. Remove the bolts and the front bumper bracket outer arm.

    Torque

    : 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

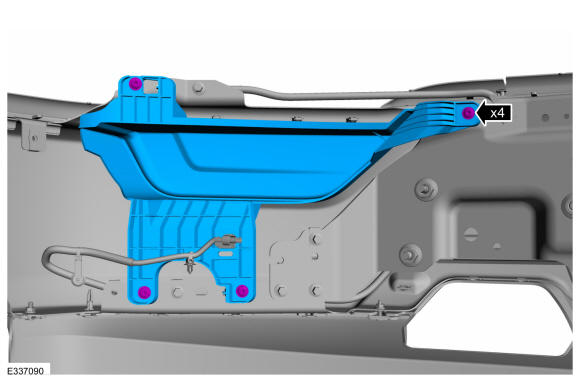

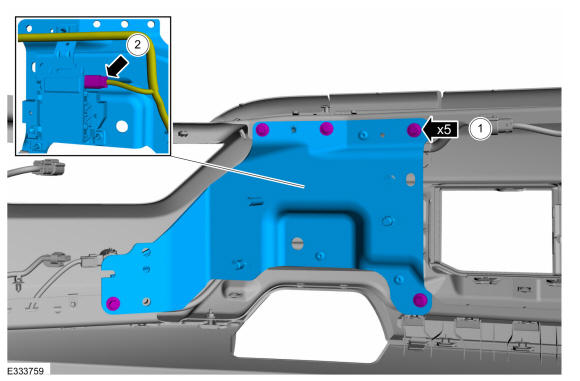

12. 1. On both sides. Remove the bolts and the front bumper bracket.

       Torque

       : 18 lb.ft (25 Nm)

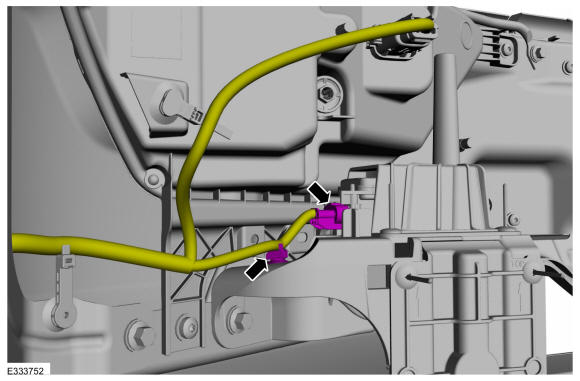

    2. If equipped. Disconnect the CCM electrical connector.

    Courtesy of FORD MOTOR COMPANY

    Vehicles With: Active Park Assist/Front Parking Aid

13. NOTE: Make sure that the isolator rings are installed correctly while installing the sensors.

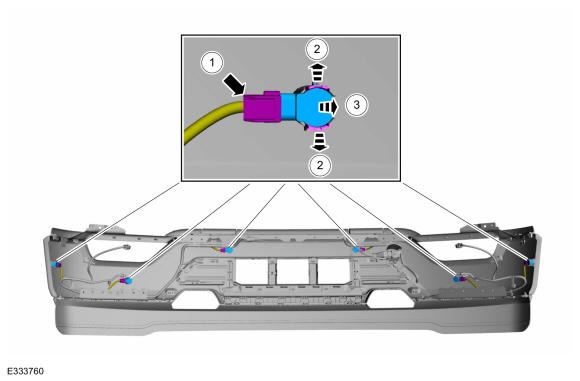

    1. Disconnect the front parking aid sensor and the front active park assist sensor electrical connectors.
    2. Release the tabs.
    3. Remove the front parking aid sensors and front active park assist sensors from the bracket.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

14. NOTE: The number and location of wiring harness retainers will vary depending on option content.

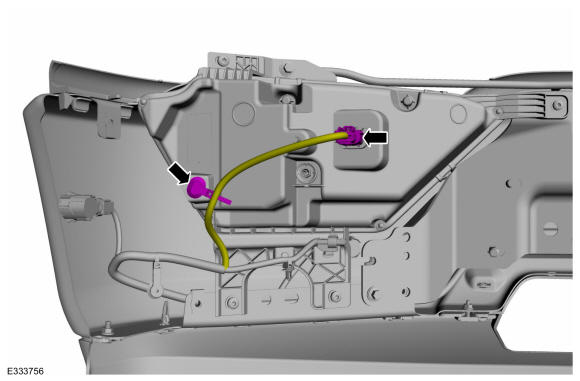

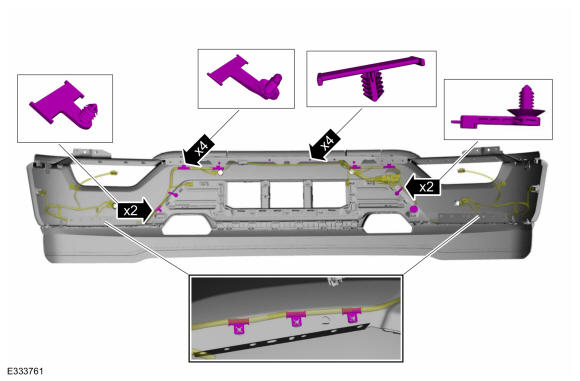

    Separate the front bumper cover wiring harness retainers and remove the harness.

    Courtesy of FORD MOTOR COMPANY

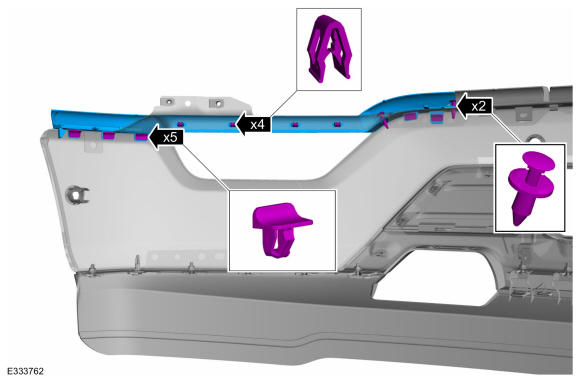

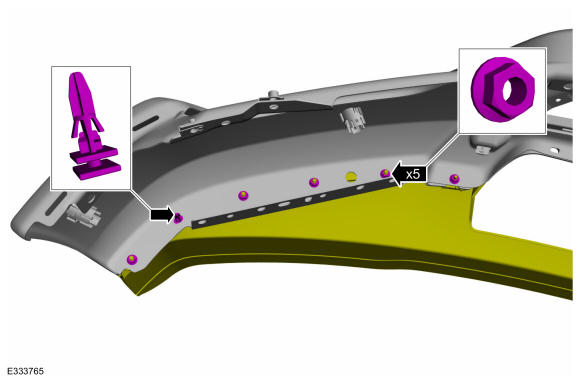

15. On both sides. Remove the push pins, release the clips and remove the front bumper side valence panel.

    Courtesy of FORD MOTOR COMPANY

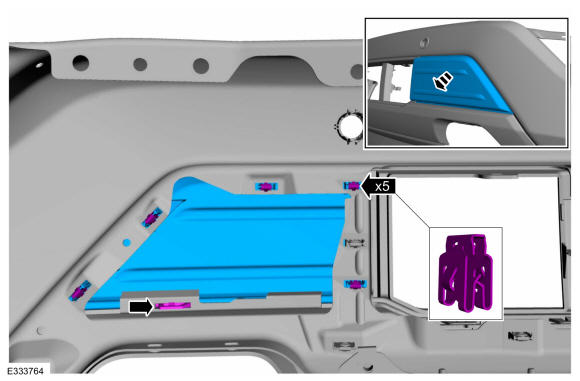

16. Release the clips, the tabs and remove the front bumper upper valence panel.

    Courtesy of FORD MOTOR COMPANY

17. On both sides. Release the clips, the tab and remove the front bumper trim panel.

    Courtesy of FORD MOTOR COMPANY

18. On both sides. Remove the nuts and detach the retainer.

    Torque

    : 27 lb.in (3 Nm)

    Courtesy of FORD MOTOR COMPANY

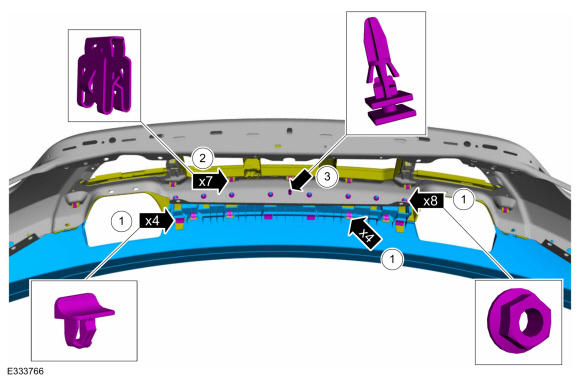

19. 1. Remove the nuts, the push pins and release the tabs.

       Torque

       : 27 lb.in (3 Nm)

    2. Release the clips and position the protective shield aside.

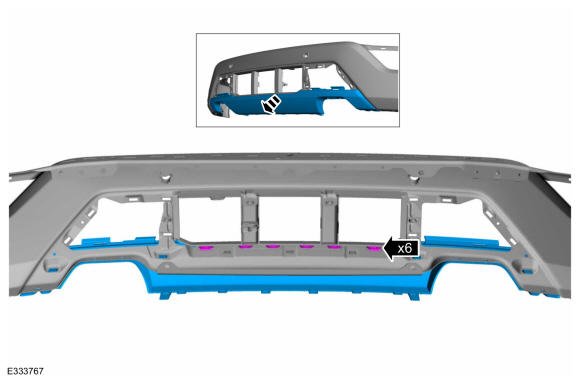

    3. Detach the retainer and remove the front bumper lower valence panel.

    Courtesy of FORD MOTOR COMPANY

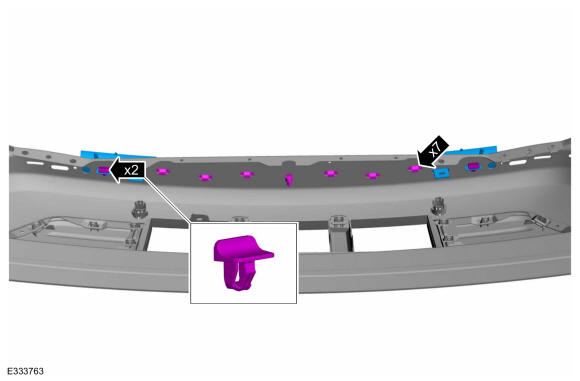

20. Release the clips and remove the protective shield.

    Courtesy of FORD MOTOR COMPANY

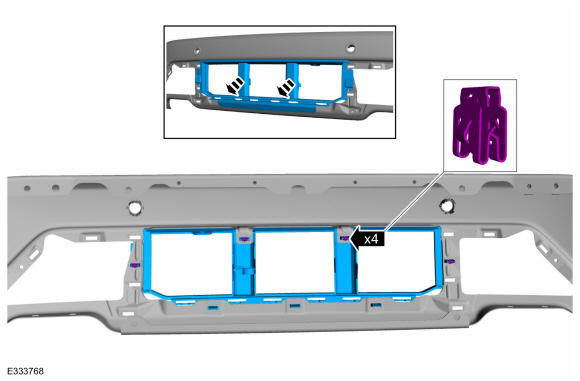

21. Release the clips and remove the front bumper grille assembly.
