Pinpoint Tests K: Engine Coolant Temperature (ECT) Sensor: Introduction
NOTE:
Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.
This pinpoint test is intended to diagnose the following:
- ECT sensor (12A648)
- harness circuits: ECT and SIGRTN
- PCM (12A650)
TEMPERATURE AND RESISTANCE VALUE SPECIFICATION (APPROXIMATE)
| °C | °F | Ohms |
|---|---|---|
| 100 | 212 | 2, 080 |
| 90 | 194 | 2, 803 |
| 80 | 176 | 3, 836 |
| 70 | 158 | 5, 337 |
| 60 | 140 | 7, 556 |
| 50 | 122 | 10, 908 |
| 45 | 113 | 13, 216 |
| 40 | 104 | 16, 092 |
| 35 | 95 | 19, 696 |
| 30 | 86 | 24, 329 |
| 25 | 77 | 30, 000 |
| 20 | 68 | 37, 352 |
| 15 | 59 | 46, 797 |
| 10 | 50 | 59, 016 |
| 5 | 41 | 74, 940 |
| 0 | 32 | 95, 851 |
| -5 | 23 | 123, 485 |
| -10 | 14 | 160, 313 |
| -15 | 5 | 209, 816 |
| -20 | -4 | 276, 959 |
| -30 | -22 | 496, 051 |
| -40 | -40 | 925, 021 |

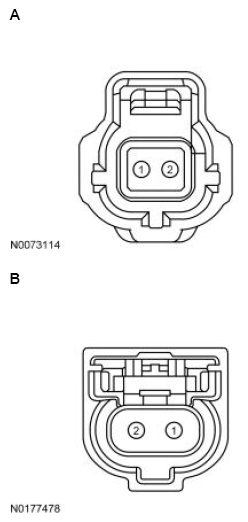

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| F-650/F-750 | A | 2 1 |
SIGRTN ECT |
| All other vehicles | B | 2 1 |
SIGRTN ECT |
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Transit Connect | A | 57 | ECT |
| All other vehicles | B | 36 34 |
SIGRTN ECT |
