Pinpoint Tests RI: Reductant Temperature Sensor: Introduction
NOTE:
Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.
This pinpoint test is intended to diagnose the following:
- reductant temperature sensor
- reductant pump assembly
- harness circuits: RDT and SIGRTN
- reductant dosage control module (5H298)
- PCM (12A650)
REDUCTANT TEMPERATURE SENSOR EXPECTED VALUE SPECIFICATION
| Temperature (°C) |
Temperature (°F) |
Resistance (K Ohms) |
| -40 |
-40 |
45 |
| -30 |
-22 |
26 |
| -20 |
-4 |
16 |
| -10 |
14 |
9.4 |
| 0 |
32 |
5.9 |
| 10 |
50 |
3.8 |
| 20 |
68 |
2.5 |
| 30 |
86 |
1.7 |
| 40 |
104 |
1.2 |
| 50 |
122 |
0.84 |
| 60 |
140 |
0.60 |
| 70 |
158 |
0.44 |
| 80 |
176 |
0.32 |
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
| 3 |
SIGRTN (Signal Return) |
| 2 |
SIGRTN (Signal Return) |
| 1 |
RDT (Reductant Temperature) |
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
| 4 |
SIGRTN (Signal Return) |
| 5 |
REDQUALVL (Reductant Quality Value) |
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
| 63 |
SIGRTN (Signal Return) |
| 62 |
REDQUALVL (Reductant Quality Value) |
Courtesy of FORD MOTOR CO.

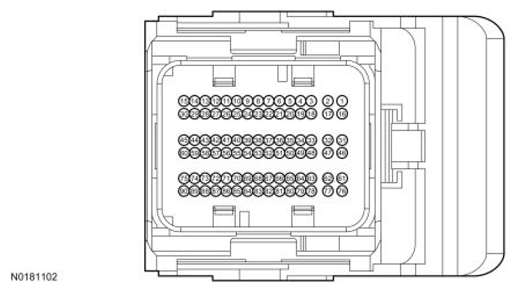

| Pin |
Circuit |
| 70 |
SIGRTN (Signal Return) |
| 69 |
RDT (Reductant Temperature) |
