Pinpoint Tests WA: Exhaust Gas Recirculation Temperature (EGRT) Sensor: Introduction

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

harness circuits: EGRT11, EGRT12, and SIGRTN
EGRT11 and EGRT12 sensors
PCM (12A650)

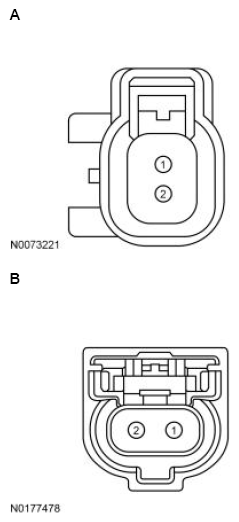

Fig 1: Exhaust Gas Recirculation Temperature Bank 1, Sensor 1 (EGRT11) Sensor Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
F-650/F-750, F-Series Super Duty	A	2 1	SIGRTN EGRT11
F-150	A	1 2	SIGRTN EGRT11
Transit Connect	B	2 1	SIGRTN EGRT11

Fig 2: Exhaust Gas Recirculation Temperature Bank 1, Sensor 2 (EGRT12) Sensor Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
2	SIGRTN (Signal Return)
1	EGRT12 (Exhaust Gas Recirculation Temperature Bank 1, Sensor 2)

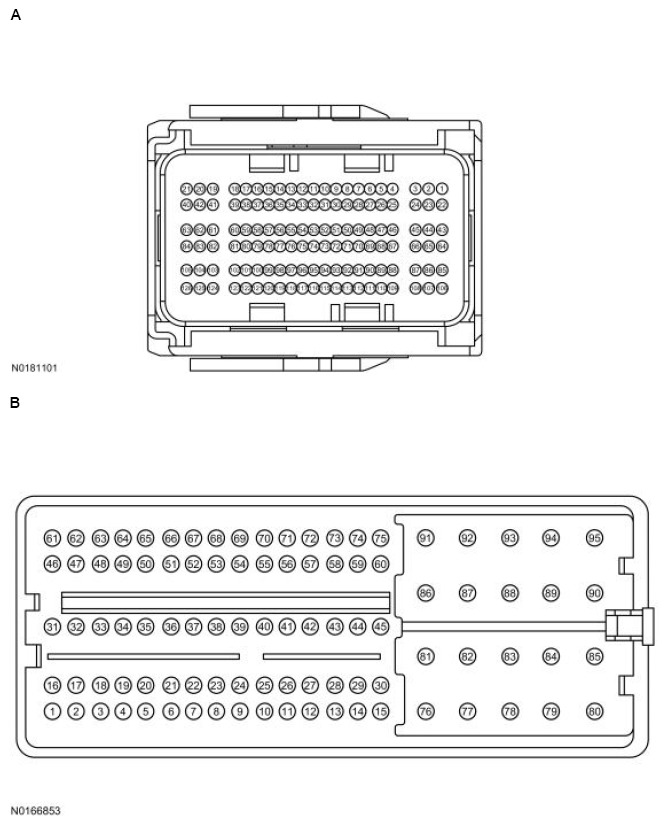

Fig 3: Powertrain Control Module-E (PCM-E) Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Transit Connect	A	30 42	SIGRTN EGRT11
All other vehicles	B	78 99 101	EGRT12 SIGRTN EGRT11
