6.7L 4V F-650/F-750: Notes

Fig 1: 6.7L 4V F-650/F-750 PCM Connector (90 Pin B Connector)
G13373325Courtesy of FORD MOTOR CO.

90 Pin B Connector

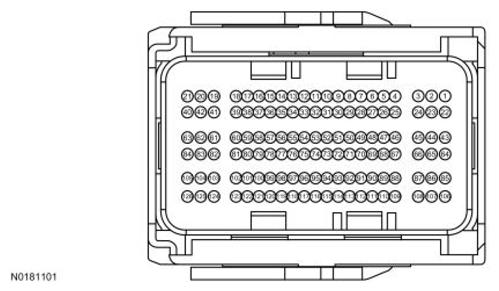

Fig 2: 6.7L 4V F-650/F-750 PCM Connector (126 Pin E Connector)
G13373326Courtesy of FORD MOTOR CO.

126 Pin E Connector

Fig 3: 6.7L 4V F-650/F-750 PCM Connector (90 Pin T Connector)
G13373327Courtesy of FORD MOTOR CO.

90 Pin T Connector
