Electronic Engine Controls- Front

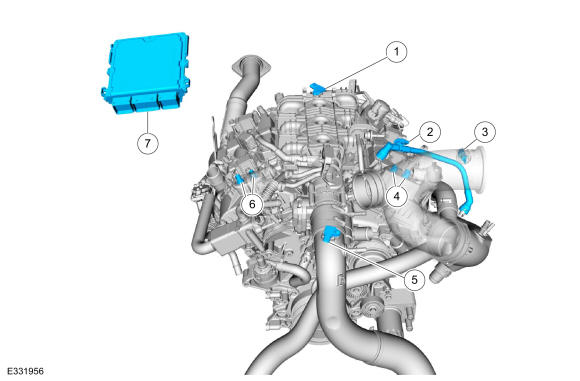

GFD558243Courtesy of FORD MOTOR COMPANY
Item Description
1 MAPT sensor
2 Crankcase Pressure Sensor
3 IAT sensor
4 Left hand VCT oil control solenoids
5 Turbocharger Boost Pressure (TCBP) Charge Air Cooler (CAC) Temperature sensor
6 Right hand VCT oil control solenoids
7 PCM

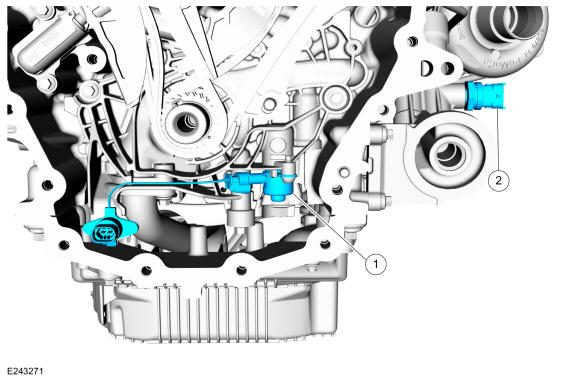

GFD558244Courtesy of FORD MOTOR COMPANY
Item Description
1 Oil Pressure Control Solenoid
2 EOP sensor
