Front Wheel Speed Sensor: Removal
- Remove the wheel and tire. Refer to: Wheel and Tire .
-
NOTE: Note the positioning of the front wheel speed sensor wiring retainers.
Disconnect the front wheel speed sensor electrical connector and detach the wiring retainers.
-

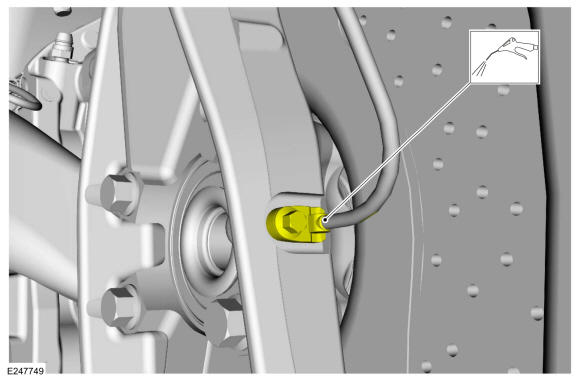

NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.
Using compressed air, clean the sensor housing area.

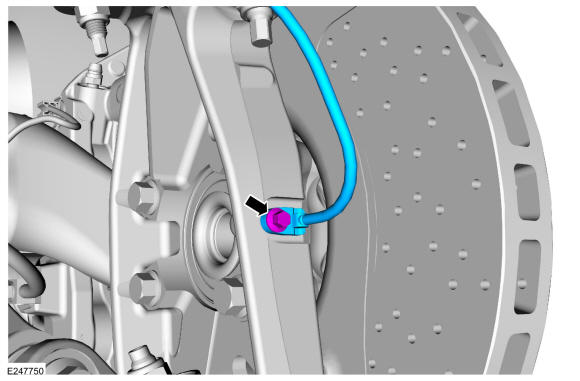

- Remove the bolt and the front wheel speed sensor.
Torque: 80 lb.in (9 Nm)
