Starter Motor: Installation

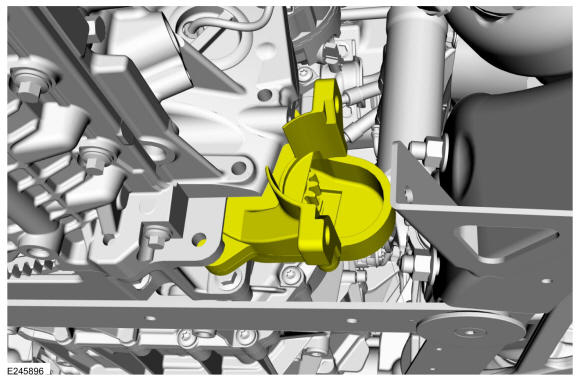

Position the starter transfer gearbox.

Courtesy of FORD MOTOR COMPANY

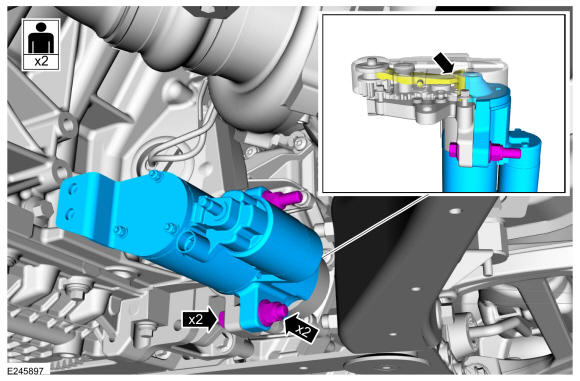

NOTE: The starter transfer gear box arm must be aligned and properly engaged with the starter motor bushing. If they are not aligned and properly engaged, the starter motor will bind.

Align and properly engage the starter transfer gearbox arm to the starter motor bushing and install the starter motor.

Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

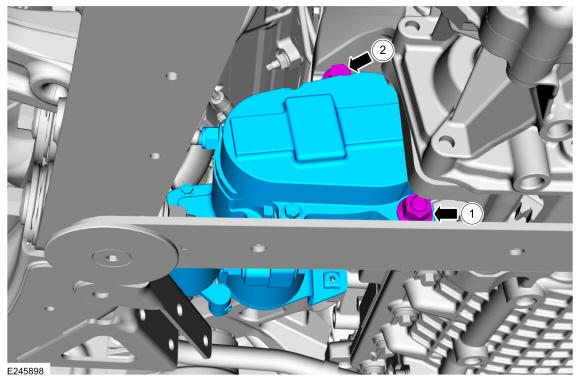

1. Install the starter transfer gearbox, starter motor, bolt and nut.
  Torque: 35 lb.ft (48 Nm)
2. Install the bolt.
  Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY

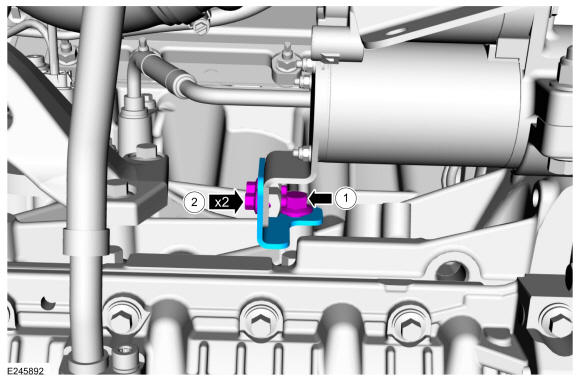

1. Install the bracket and bolt.
  Torque: 35 lb.ft (48 Nm)
2. Install the bolts.
  Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

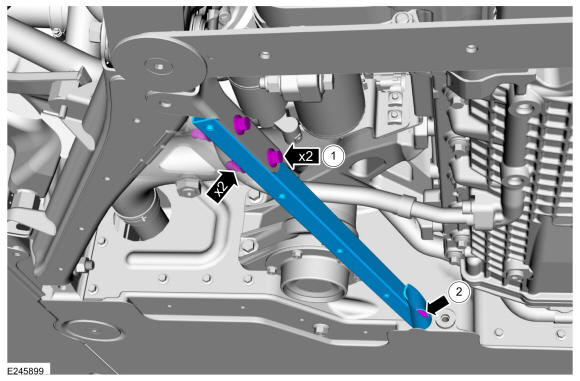

1. Install the LH support bar, bolts and nuts.
  Torque: 18 lb.ft (25 Nm)
2. Install the LH support bar bolt.
  Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY

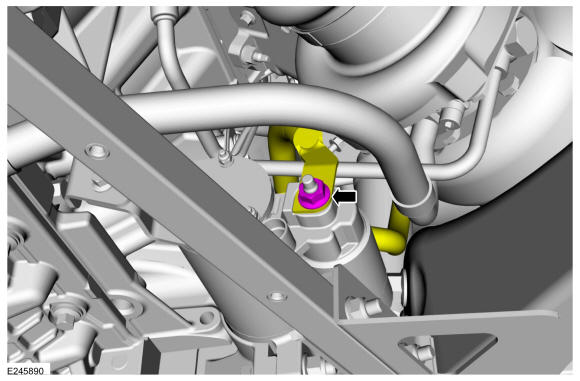

Install the battery cable and nut.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

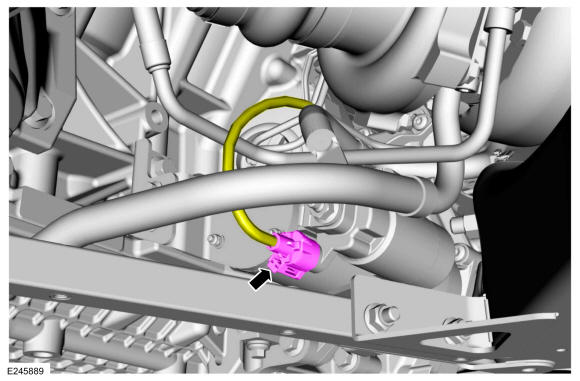

Connect the starter motor electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the engine undertray and the bolts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the battery. Refer to: Battery Disconnect and Connect .
