Starter Motor: Removal

WARNING: Always disconnect the battery ground cable at the battery before disconnecting the starter motor battery terminal lead. If a tool is shorted at the starter motor battery terminal, the tool can quickly heat enough to cause a skin burn. Failure to follow this instruction may result in serious personal injury.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery. Refer to: Battery Disconnect and Connect .
Remove the bolts and the engine undertray.

Courtesy of FORD MOTOR COMPANY
Disconnect the starter motor electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the nut and the battery cable.

Courtesy of FORD MOTOR COMPANY

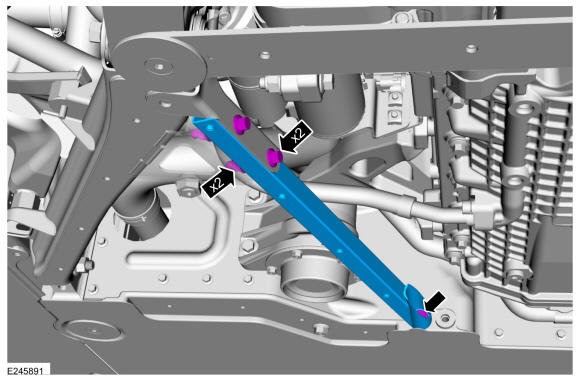

Remove the nuts, bolts and the LH support bar.

Courtesy of FORD MOTOR COMPANY
1. Remove the bolt.
2. Remove the bolts and the bracket.
Courtesy of FORD MOTOR COMPANY

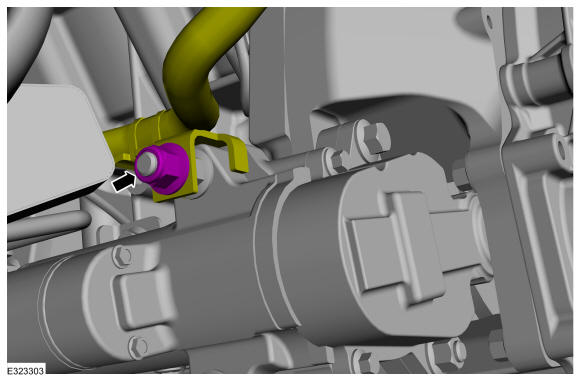

Remove battery cable harness clamp nut.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

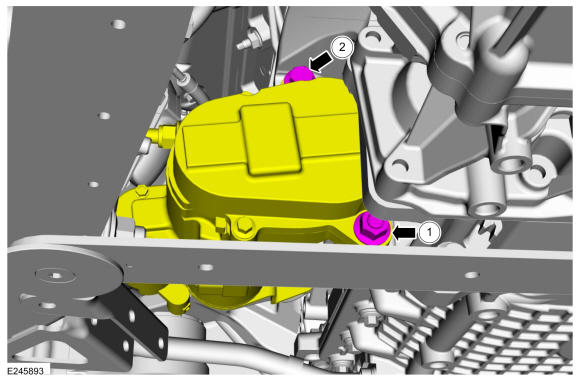

1. Remove the nut and bolt.
2. Remove the bolt and position the starter and starter transfer gear box aside.
Courtesy of FORD MOTOR COMPANY
Remove the nuts, bolts, and the starter motor.

Courtesy of FORD MOTOR COMPANY

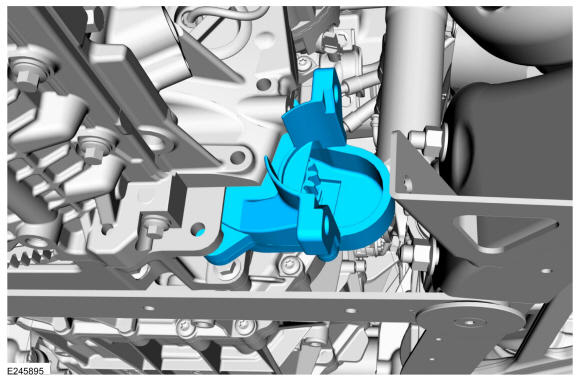

Remove the starter transfer gear box.

Courtesy of FORD MOTOR COMPANY
Inspect the starter motor drive gear, starter transfer gearbox gears, and the flywheel ring gear. Refer to: Starter Motor Drive Gear and Flywheel Ring Gear Inspection .
