Engine Mount RH: Installation
-
NOTE: The following 2 steps are only necessary if the engine mount bracket was removed.

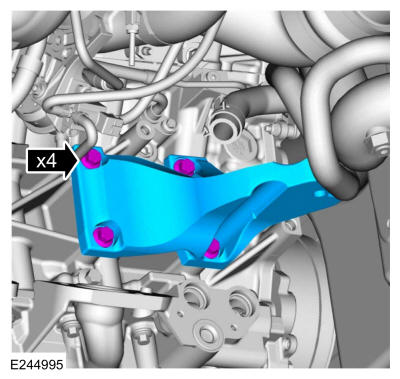

If removed, install the RH engine mount bracket and the bolts.
Torque: 35 lb.ft (48 Nm)
- If removed, install the oil pump. Refer to: Oil Pump .

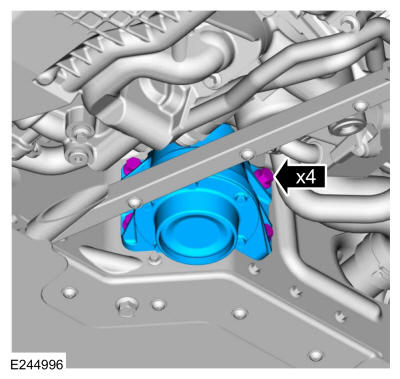

- Install the RH engine mount and the bolts.
Torque: 35 lb.ft (48 Nm)

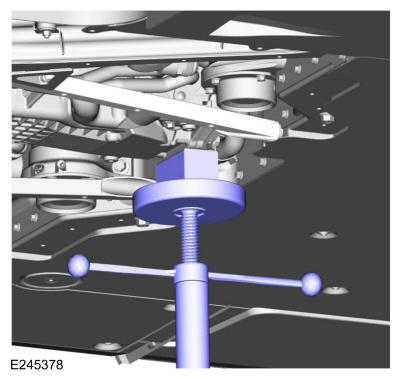

- Remove the wooden block and vehicle stand. Use the General Equipment: Wooden Block. Use the General Equipment: Vehicle/Axle Stands

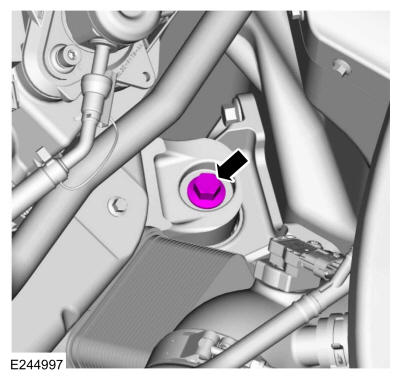

- Install the top RH engine mount bolt.
Torque: 59 lb.ft (80 Nm)
- Lower the vehicle and position the hoist using the front and mid lift points and raise the vehicle. Refer to: Jacking and Lifting - Overview .
-
NOTE: Apply threadlock to the bolts before installation.
Install the engine underbody cover and the bolts.
Material: Motorcraft® Threadlock and Sealer / TA-25-B
Torque: 60 lb.in (6.8 Nm)
