Steering Column Cable Assembly: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the steering column. Refer to: Steering Column .

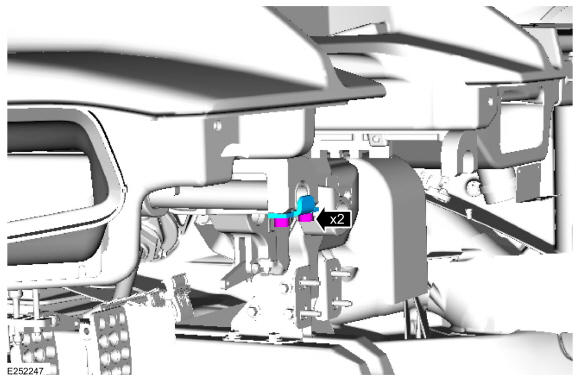

- Remove the bolts and the front steering column rail cap.
Torque: 93 lb.in (10.5 Nm)

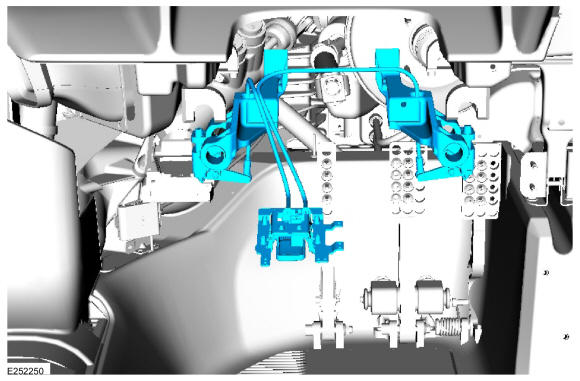

- Loosen the rear steering column rail cap bolts.
Torque: 93 lb.in (10.5 Nm)

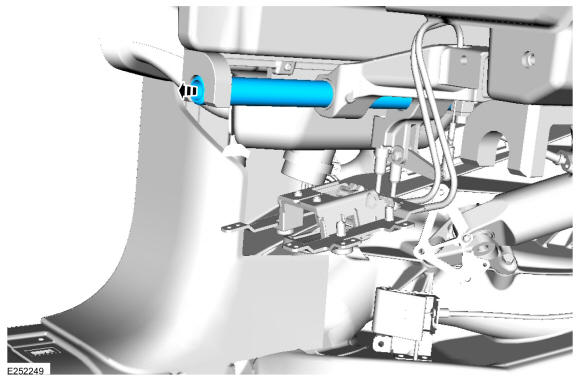

- Remove the pivot pin.

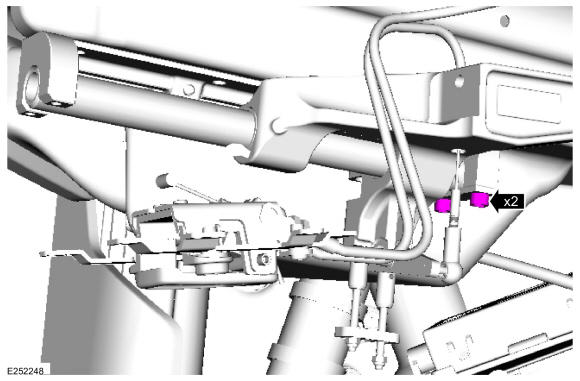

- Remove the steering column cable assembly.
