Steering Wheel: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Make sure the steering wheel and the road wheels are in the straight ahead position.

Remove the driver airbag. Refer to: Driver Airbag .

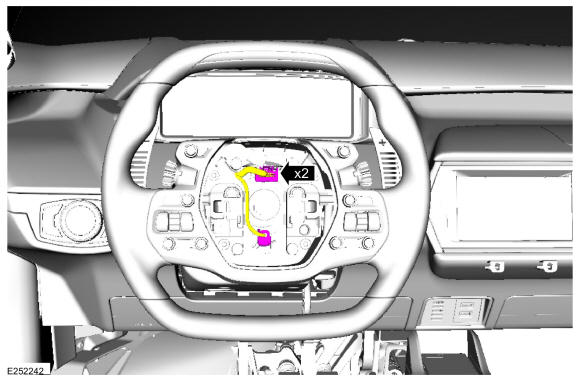

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

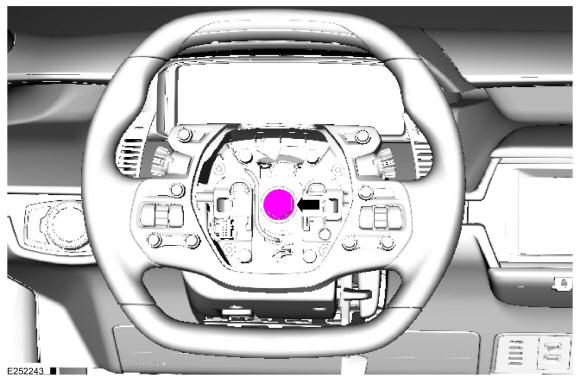

Remove the bolt.
Torque: 35 lb.ft (47.5 Nm)

Courtesy of FORD MOTOR COMPANY

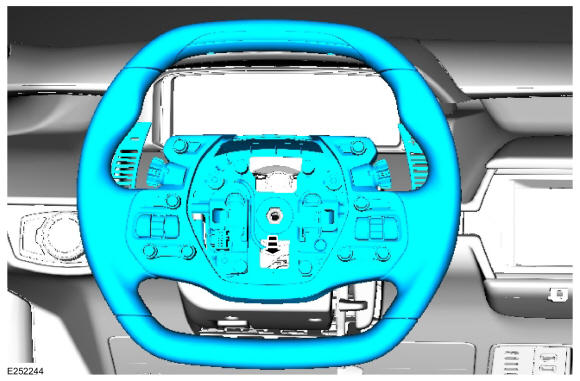

Remove the steering wheel.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the clockspring rotor does not rotate.

NOTE: Make sure the clockspring electrical connector pins are not bent or damaged.

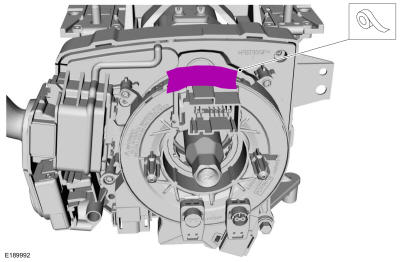

Tape the clockspring rotor to the outer housing to keep it from rotating.

Courtesy of FORD MOTOR COMPANY
