Gear Shift Module (GSM): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the floor console. Refer to: Floor Console .

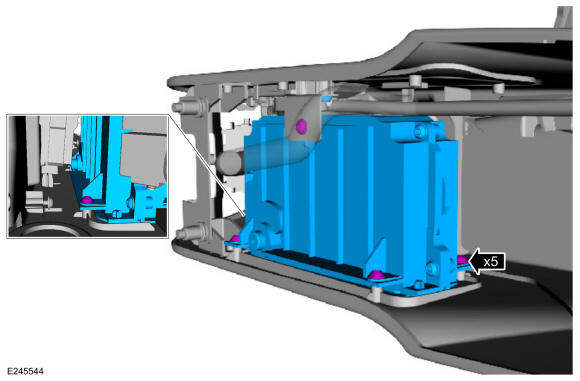

  2. Remove the screws and the cupholder.
    GFD345447Courtesy of FORD MOTOR COMPANY

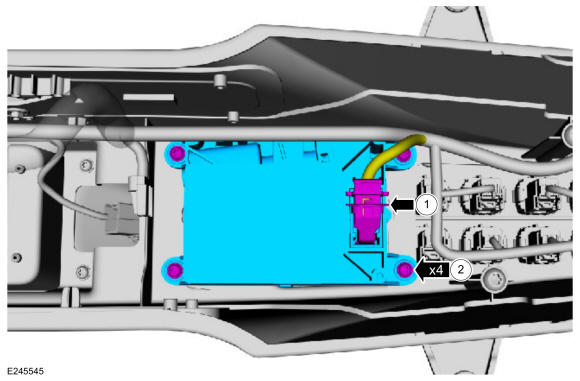

  3. Remove the GSM

    1. Disconnect the electrical connector.
    2. Remove the bolts and the GSM.

      Torque: 89 lb.in (10 Nm)

GFD345448Courtesy of FORD MOTOR COMPANY
