Upshift Paddle Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering wheel. Refer to: Steering Wheel .

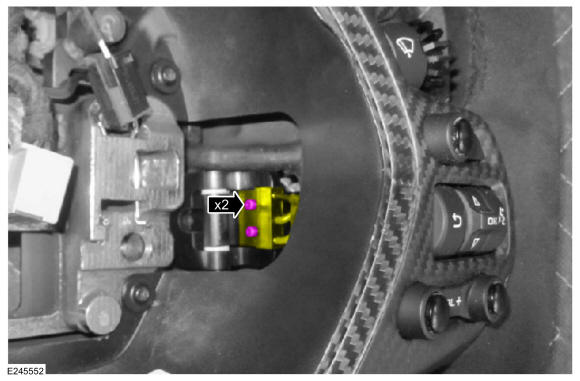

  2. Remove the screws and disconnect the upshift paddle switch electrical connector.
    GFD345449Courtesy of FORD MOTOR COMPANY

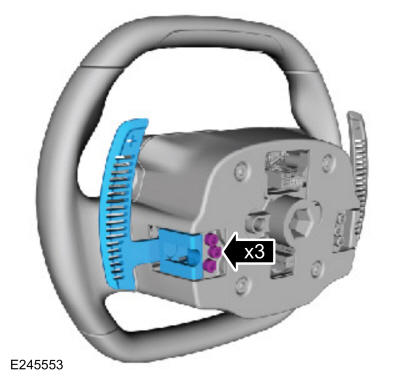

  3. Remove the bolts and the upshift paddle switch.

    Torque: 89 lb.in (10 Nm)

GFD345450Courtesy of FORD MOTOR COMPANY
