Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire

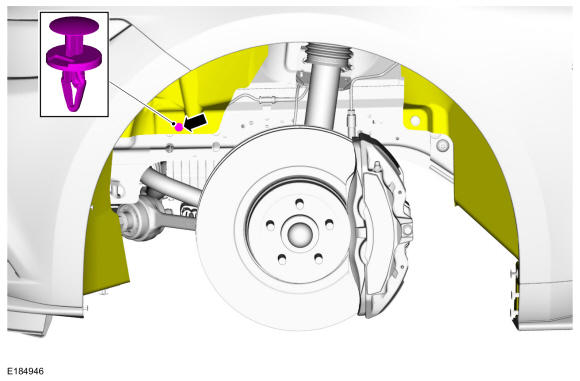

  2. Remove the retainer and position aside the fender splash shield.
    GFD599626Courtesy of FORD MOTOR COMPANY

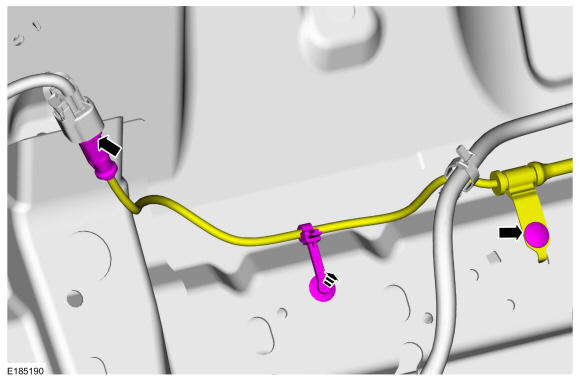

  3. Disconnect the front wheel speed sensor electrical connector and detach the 2 harness retainers.
    GFD599627Courtesy of FORD MOTOR COMPANY

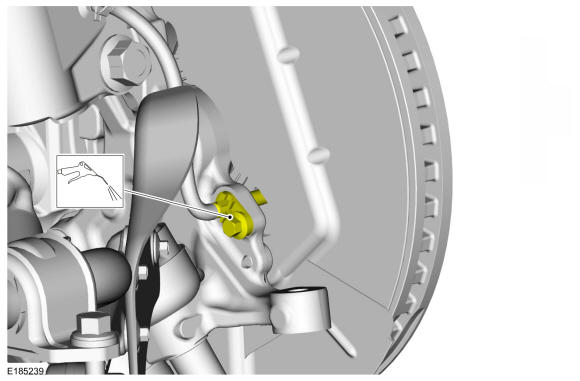

  4. Using compressed air, clean the area surrounding the front wheel speed sensor.
    GFD599628Courtesy of FORD MOTOR COMPANY

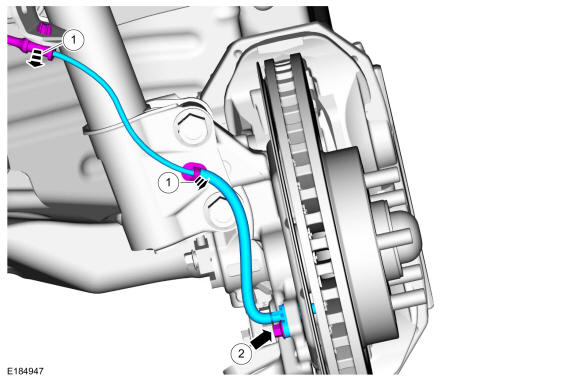

    1. Detach the 2 sensor harness retainers.
    2. Remove the bolt and the front wheel speed sensor.

      Torque

      : 133 lb.in (15 Nm)

GFD599629Courtesy of FORD MOTOR COMPANY
