Rear Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire

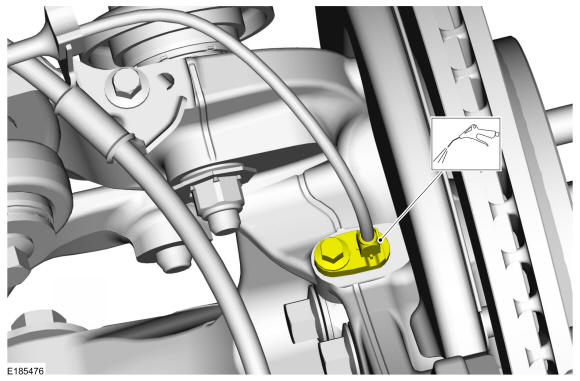

Using compressed air, clean the area surrounding the rear wheel speed sensor.

Courtesy of FORD MOTOR COMPANY

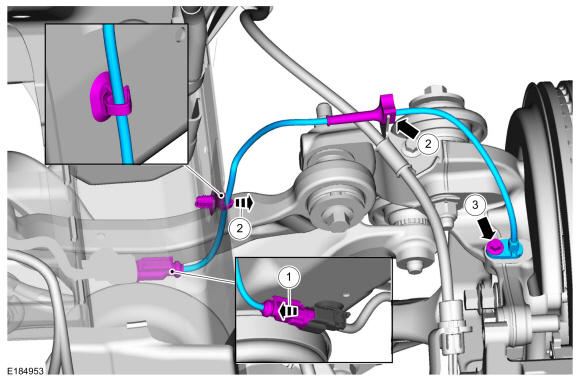

1. Disconnect the rear wheel speed sensor from electrical connector.
2. Detach the 2 sensor harness retainers.
3. Remove the bolt and the rear wheel speed sensor.
  Torque

  : 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
