Connector Repair Procedures

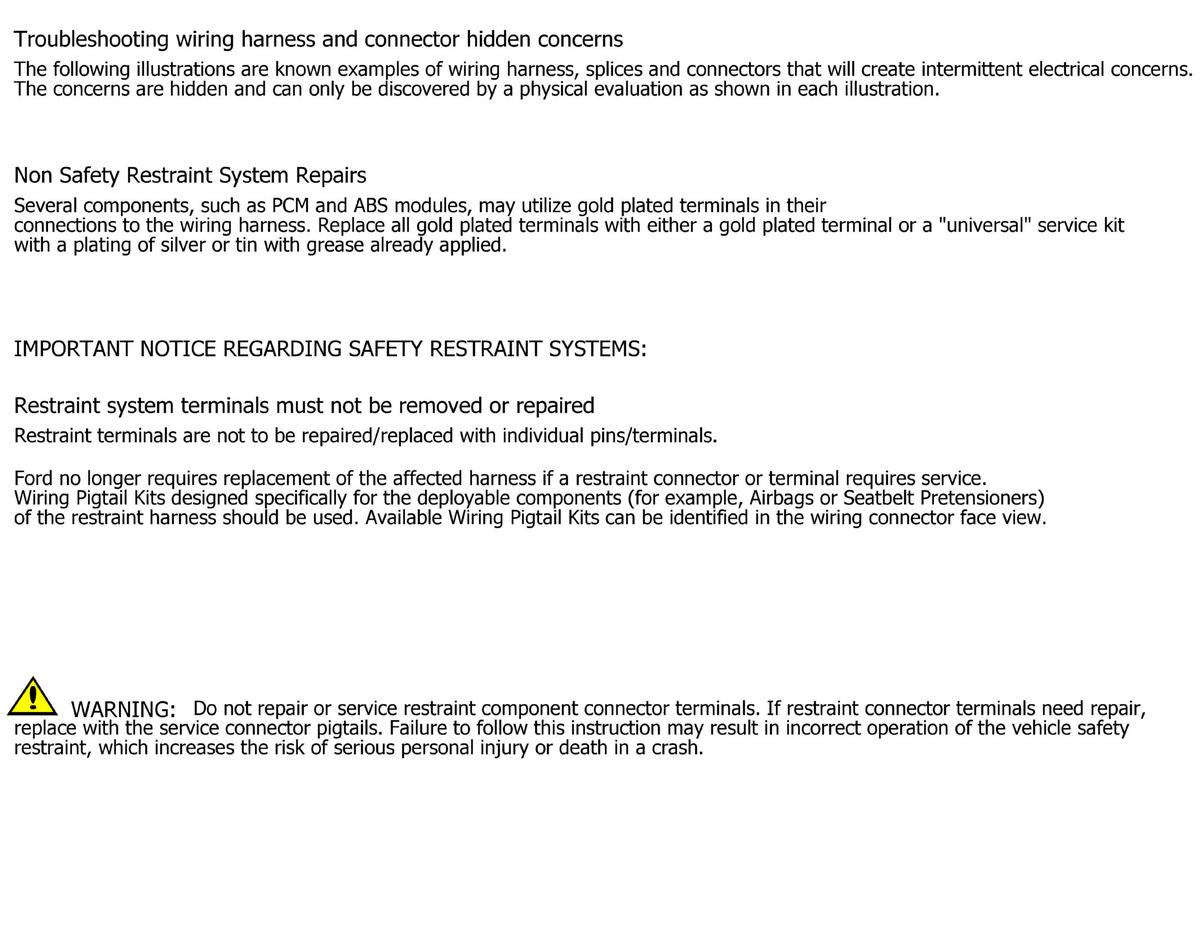

GFDWR141536Courtesy of FORD MOTOR COMPANY

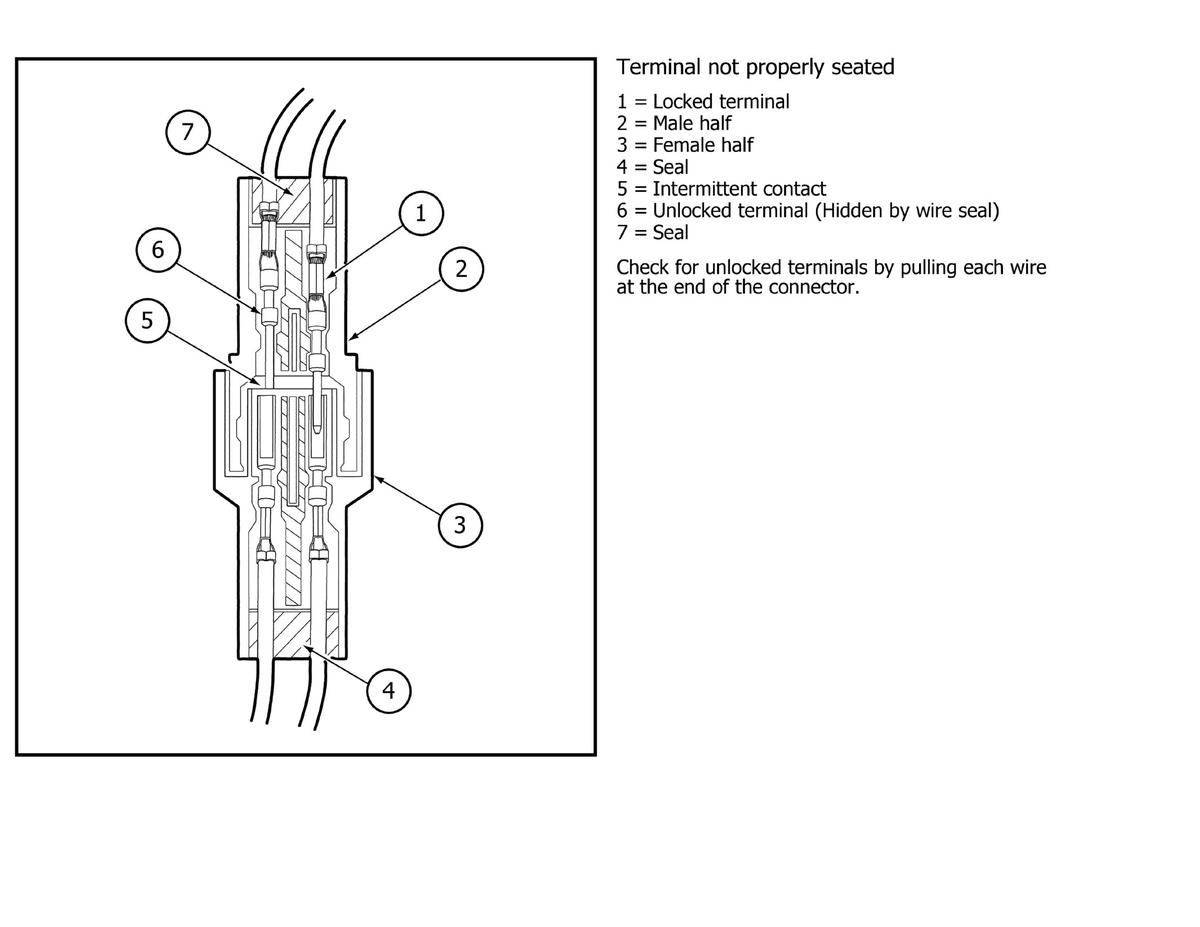

GFDWR141537Courtesy of FORD MOTOR COMPANY

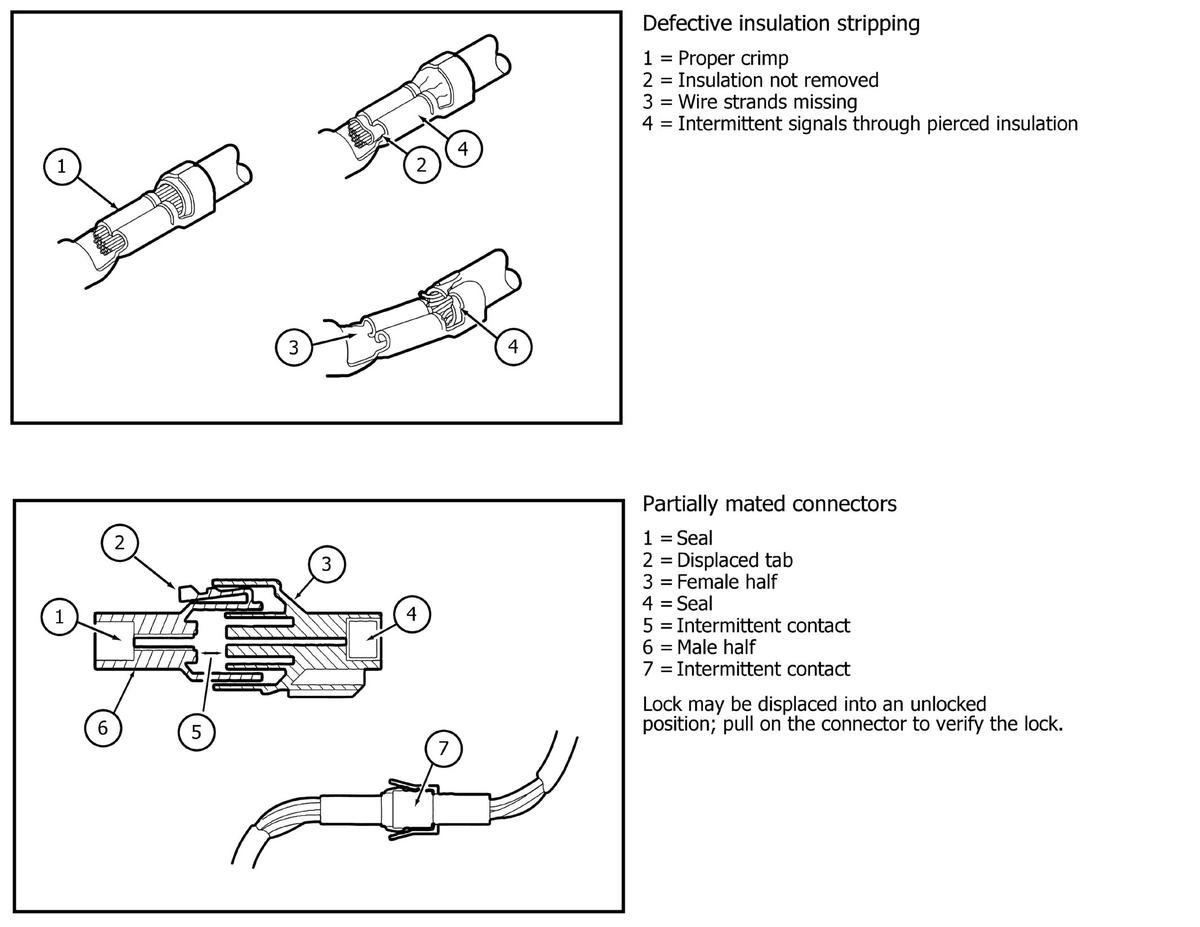

GFDWR141538Courtesy of FORD MOTOR COMPANY

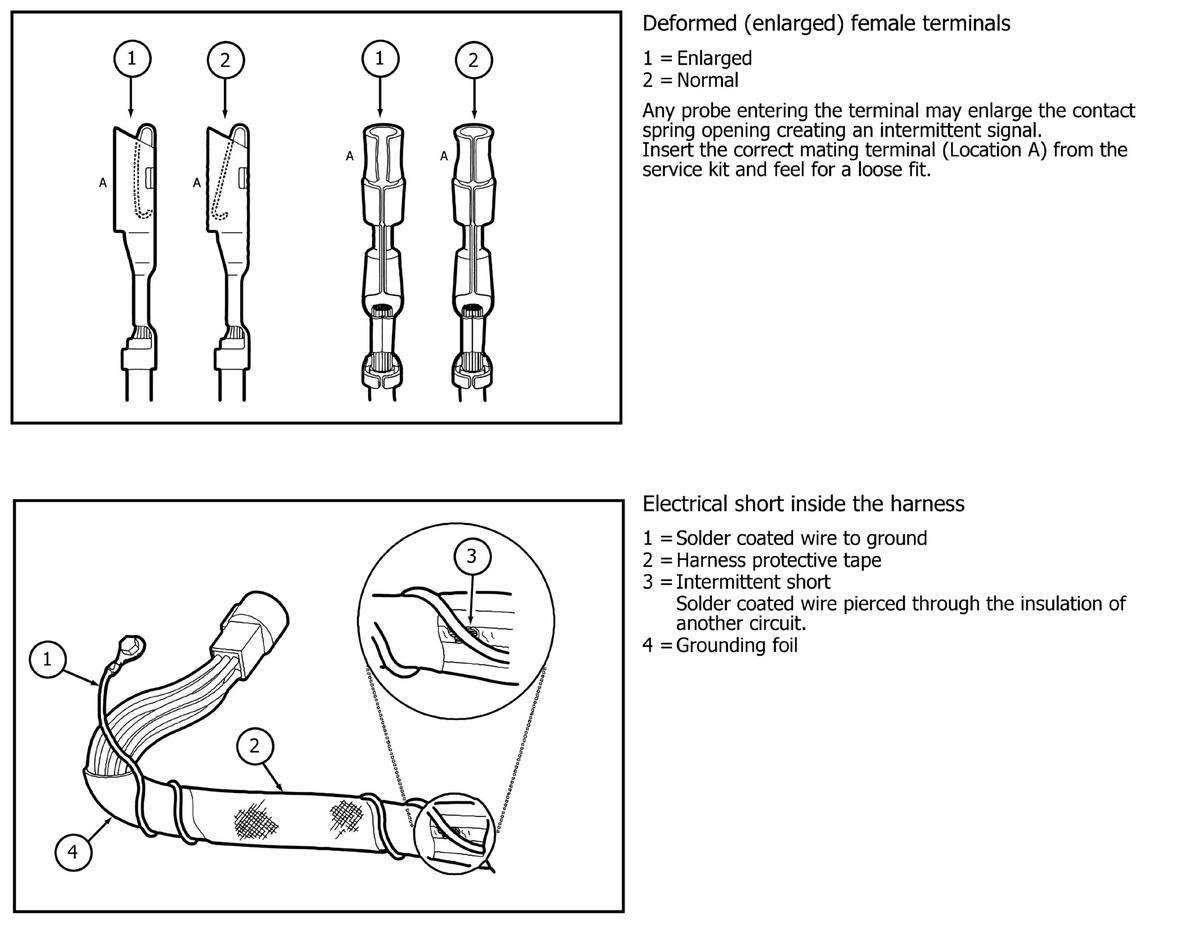

GFDWR141539Courtesy of FORD MOTOR COMPANY

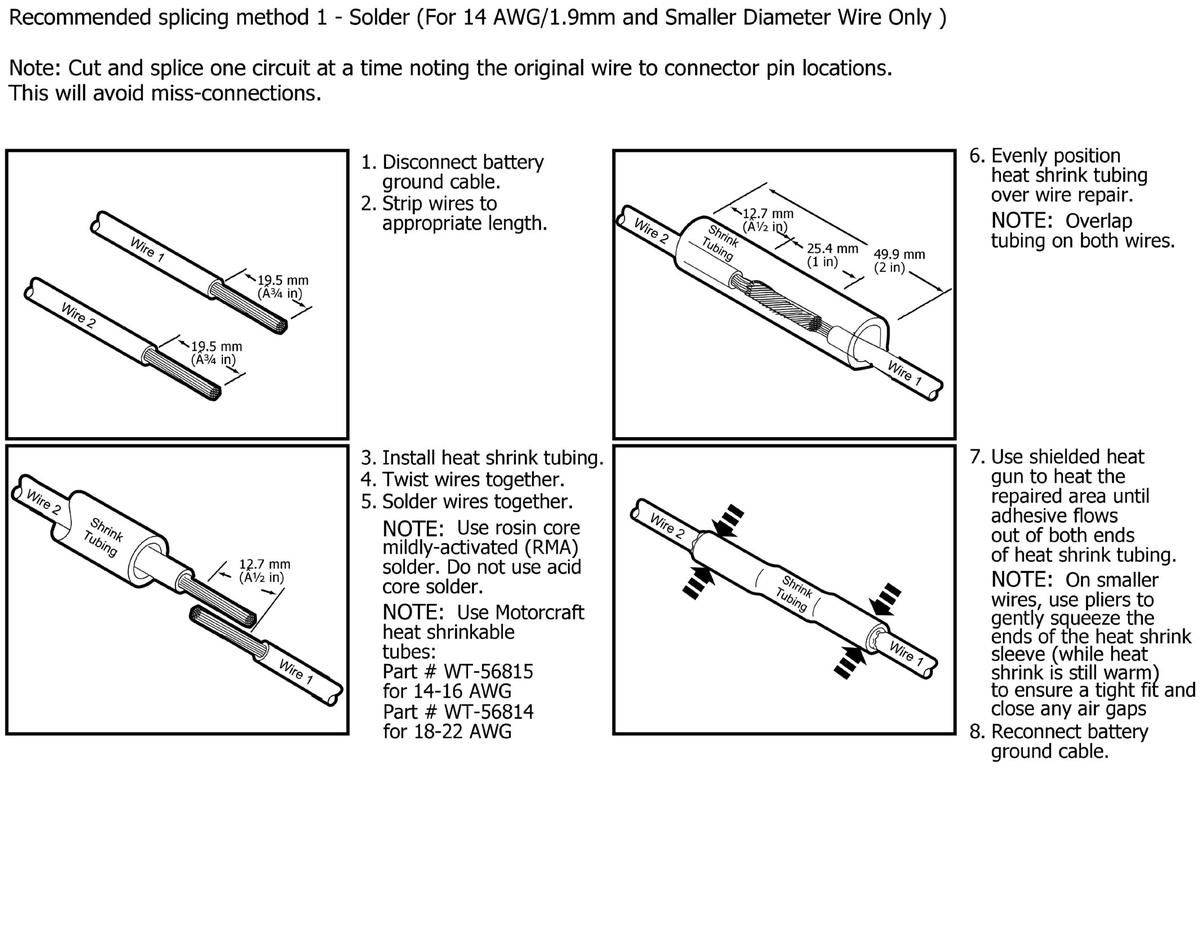

GFDWR141540Courtesy of FORD MOTOR COMPANY

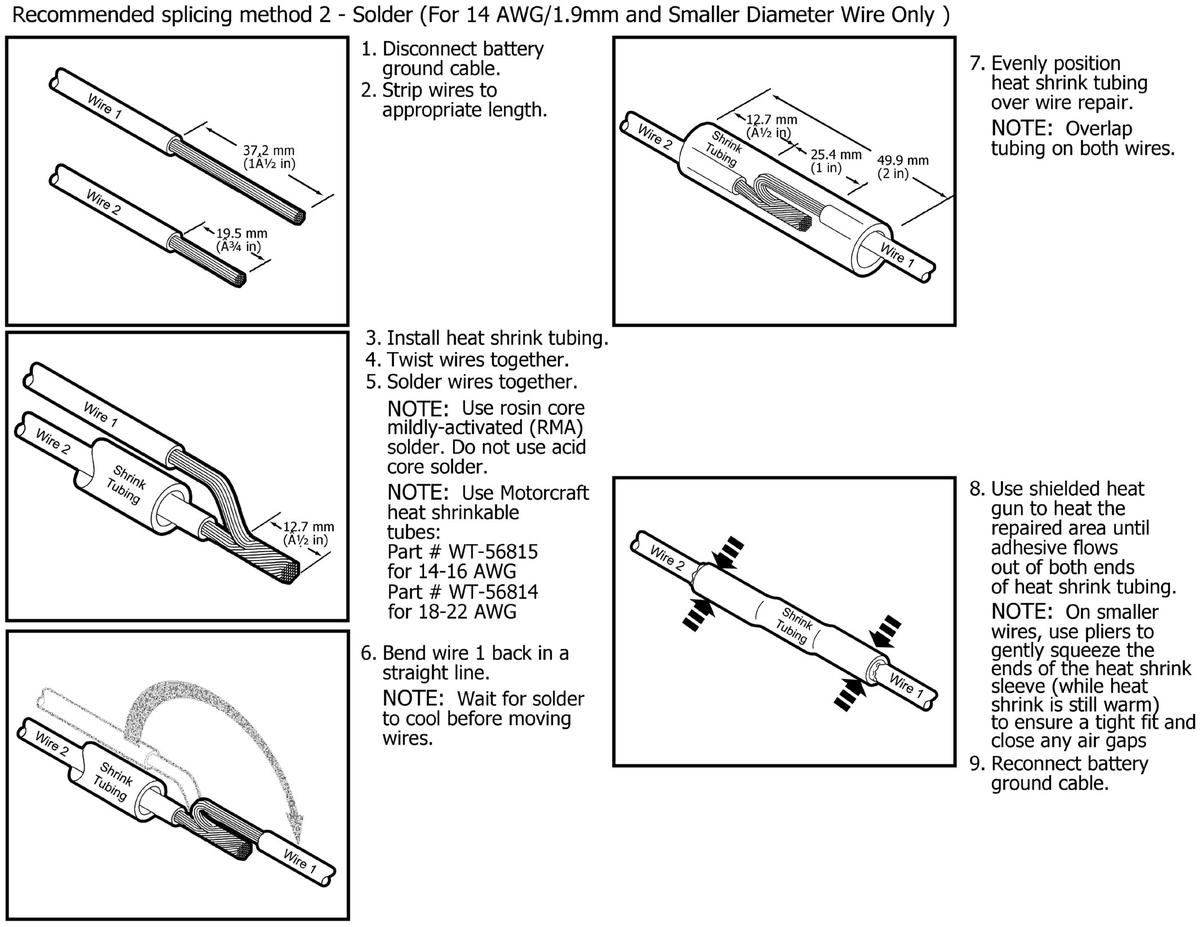

GFDWR141541Courtesy of FORD MOTOR COMPANY

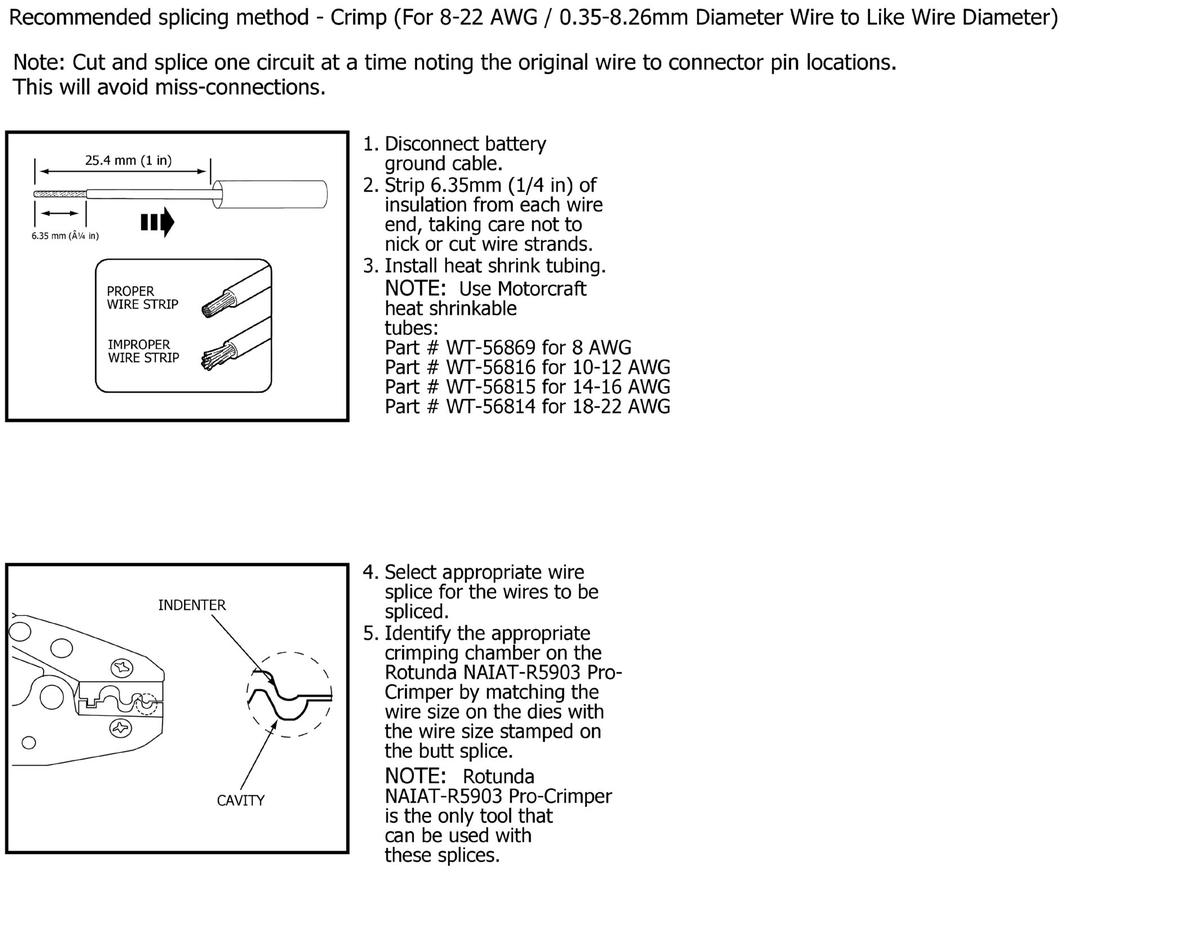

GFDWR141542Courtesy of FORD MOTOR COMPANY

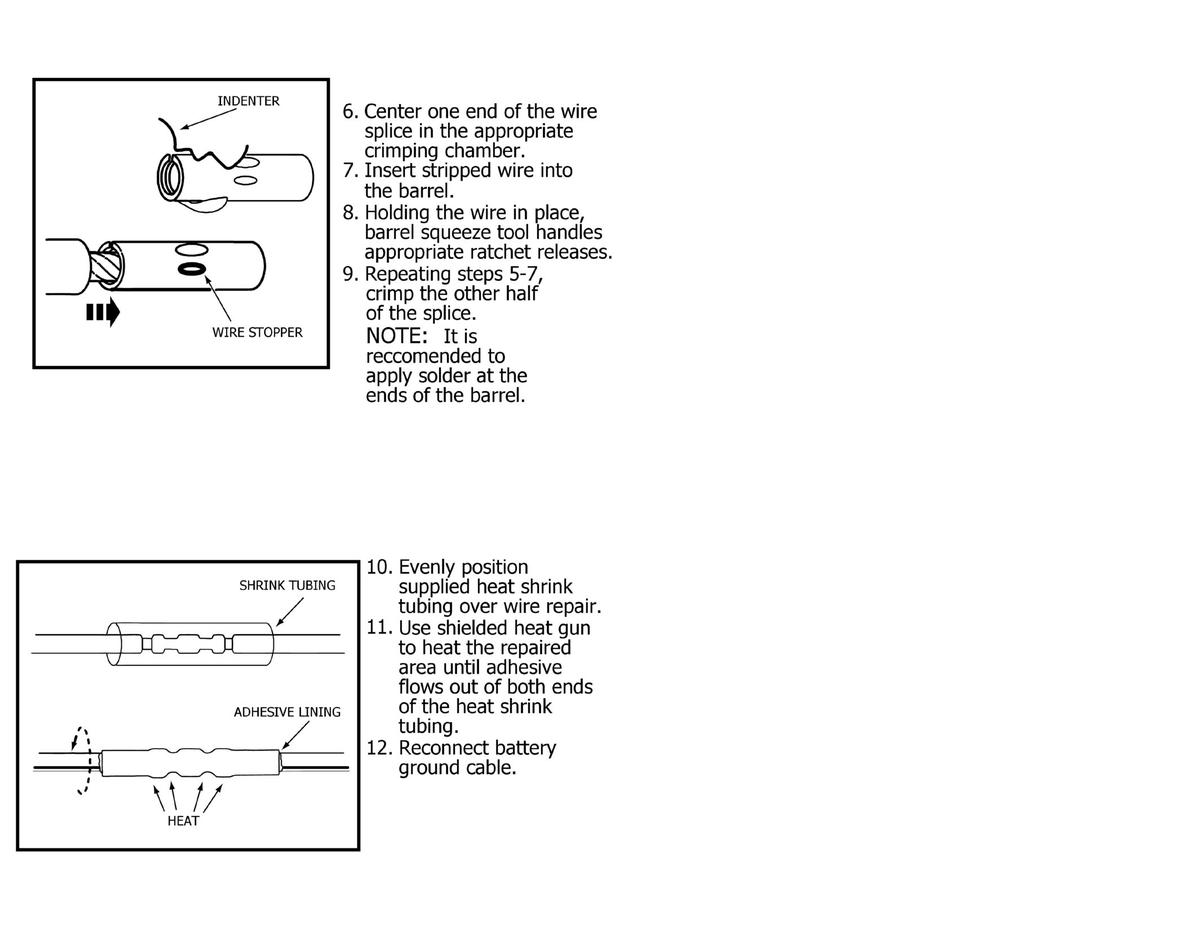

GFDWR141543Courtesy of FORD MOTOR COMPANY

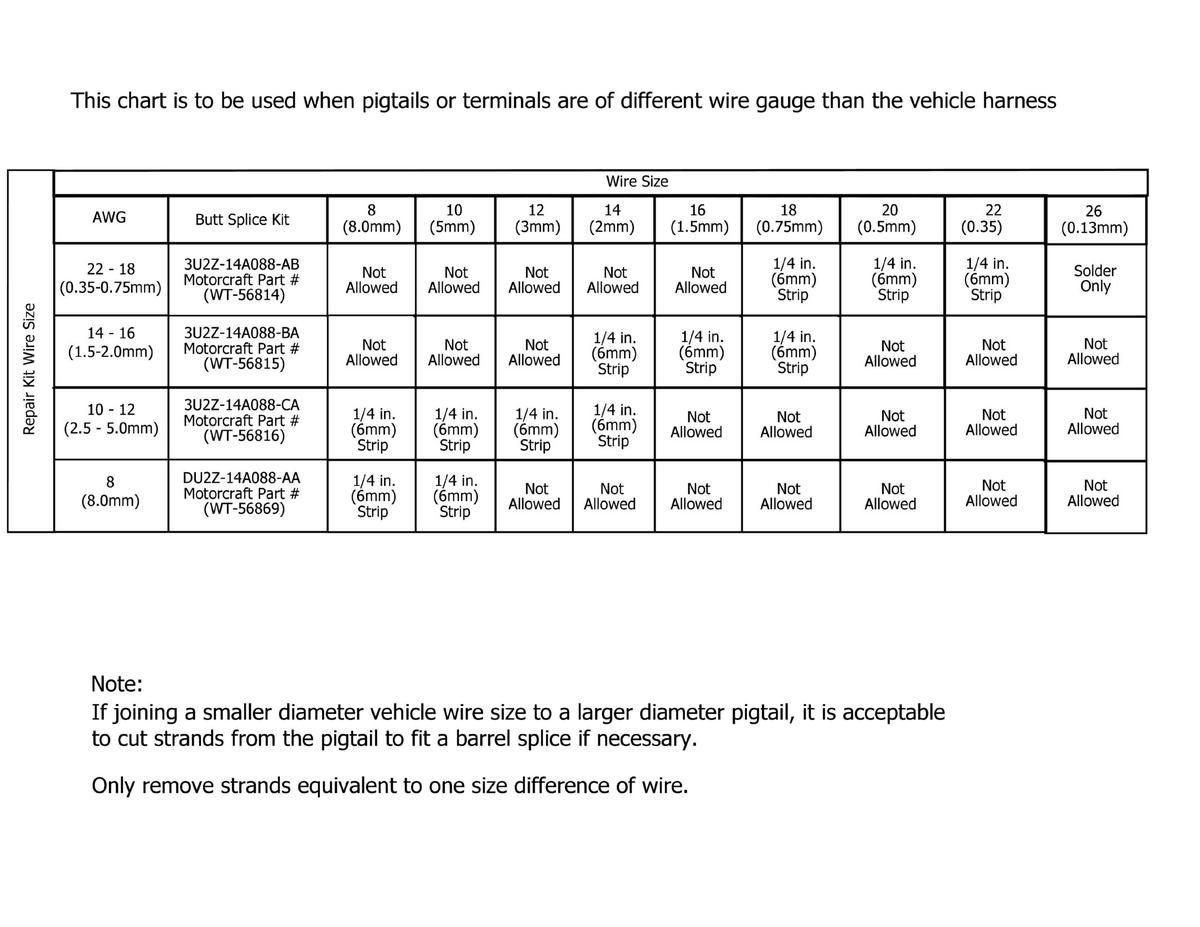

GFDWR141544Courtesy of FORD MOTOR COMPANY
