Steering Gear: Installation

All vehicles

NOTE: This step is only necessary when installing a new component.

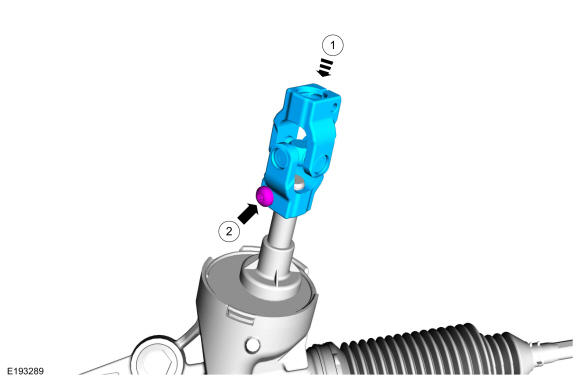

1. Install the steering coupler
2. Install the new steering coupler bolt.
  Torque: 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY

NOTE: The steering gear is shipped without the inner tie rods attached. The inner tie rods, bellows boots, bellows boot clamps and tie rod end jamb nuts are supplied in a kit and are to be installed after the steering gear is installed into the vehicle.
NOTE: It will be necessary to raise the LH side of the steering gear and slide it to the LH side of the vehicle, then rotate and raise the RH side of the steering gear in order to install it into the vehicle.

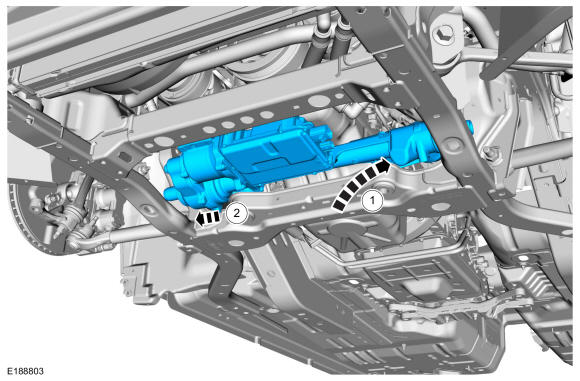

Install the steering gear.
1. Lift the LH side of the steering gear and slide it to the LH side of the vehicle.
2. Raise the RH side of the steering gear and slide it to the RH side of the vehicle.
Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolt finger tight at this stage.

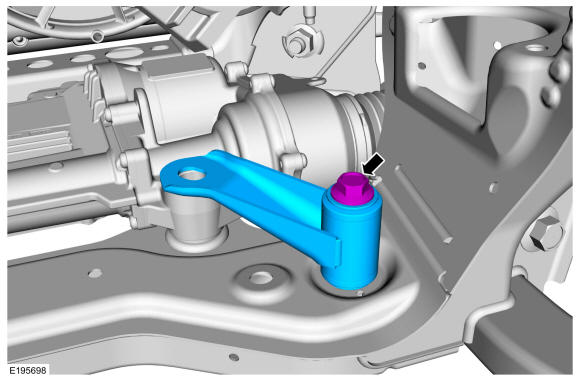

On convertible vehicles. If equipped. Install the steering gear bracket and the steering gear bracket bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolt finger tight at this stage.

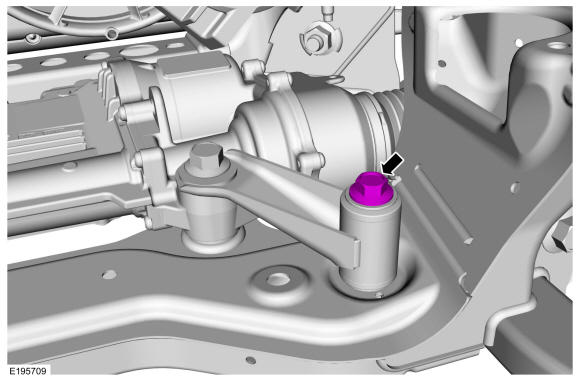

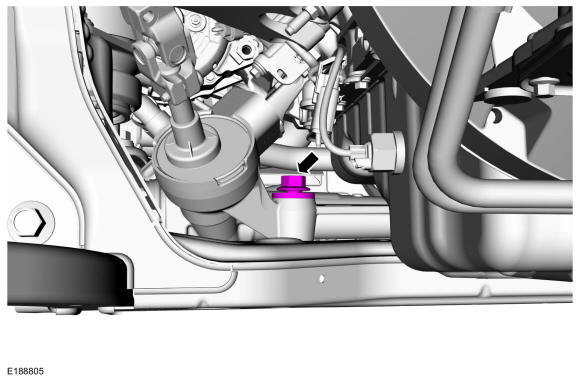

Install the new RH steering gear bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolt finger tight at this stage.

Install the new LH steering gear bolt.

Courtesy of FORD MOTOR COMPANY
On convertible vehicles. If equipped. Tighten the steering gear bracket bolt.
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the new RH steering gear bolt.
Torque: 148 lb.ft (200 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the new LH steering gear bolt.
Torque: 148 lb.ft (200 Nm)

Courtesy of FORD MOTOR COMPANY

5.2L 32V Ti-VCT

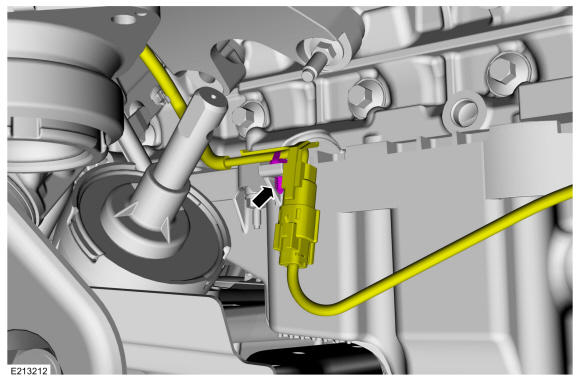

Position the O2 sensor wire harness and attach the harness retainer to the oil pan.

Courtesy of FORD MOTOR COMPANY

5.0L Ti-VCT V8 (308kW/418PS)

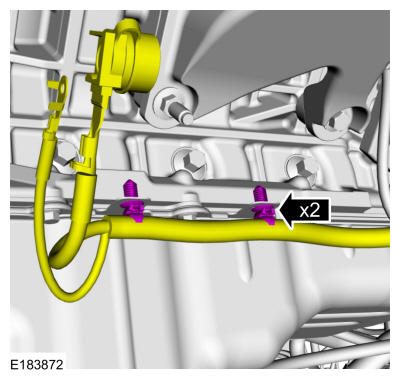

Attach the wire harness retainers to the oil pan.

Courtesy of FORD MOTOR COMPANY

6-Speed Manual Transmission - MT82
Position the bracket for the wire harness and install the nut on the front of the RH engine mount bracket stud bolt.
Torque: 35 lb.ft (47.5 Nm)

Courtesy of FORD MOTOR COMPANY

2.3L EcoBoost (231kW/314PS)
NOTE: If equipped with 2.3L EcoBoost and automatic transmission.

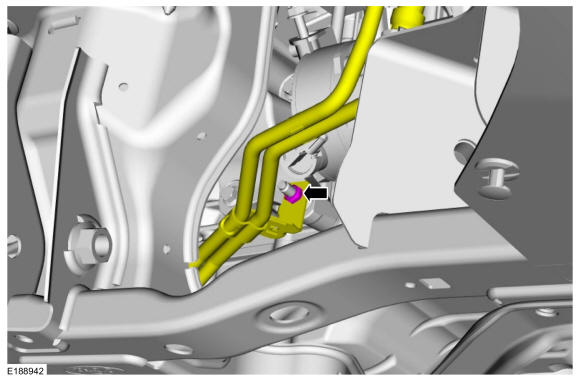

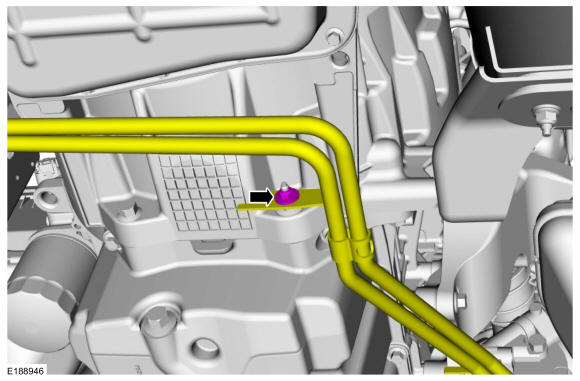

Position the tubes and install the transmission fluid cooler tubes bracket-to-transmission nut.

Torque: 124 lb.in (14 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with 2.3L EcoBoost and automatic transmission.

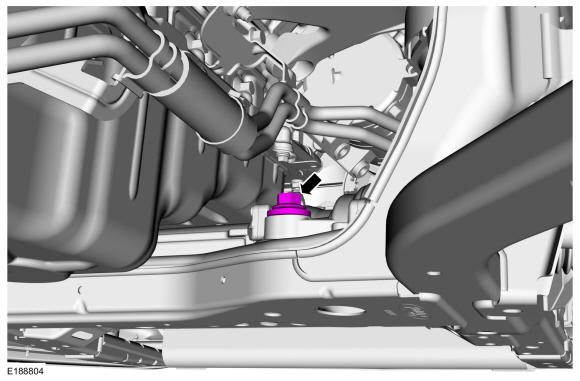

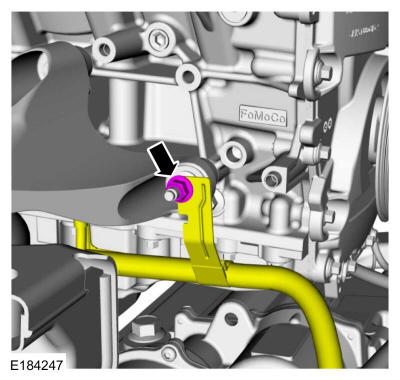

Install the transmission fluid cooler tubes bracket-to-engine mount nut.

Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

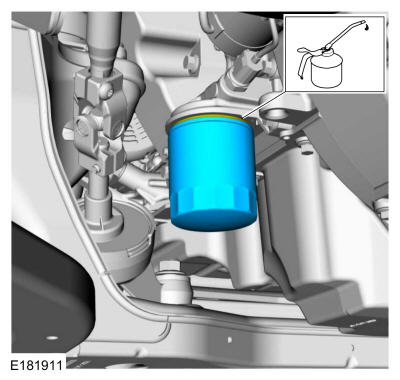

Install the new engine oil filter.
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

Torque: Stage 1: 71 lb.in (8 Nm) Stage 2:180 deg.

Courtesy of FORD MOTOR COMPANY

All vehicles

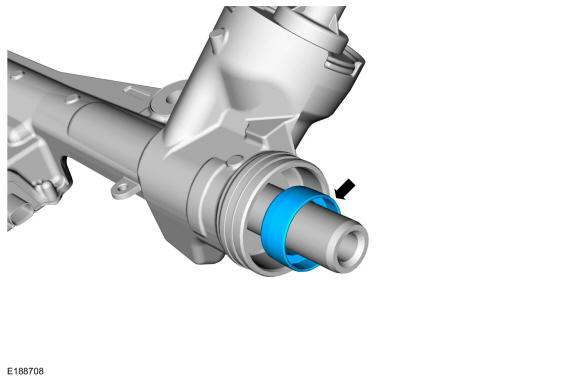

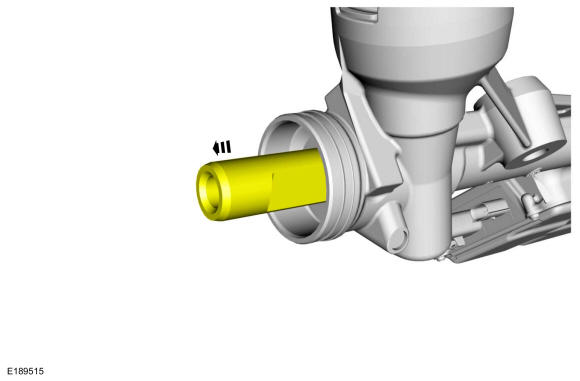

Position the new steering stop.
- GT350R and GT500 Models, LH side only.
- All other models, On both sides.
Courtesy of FORD MOTOR COMPANY
Position the steering rack completely to the LH side.

Courtesy of FORD MOTOR COMPANY
NOTE: Hold the steering gear rack while tightening the inner tie rod. Failure to hold the rack securely could result in steering gear damage.

NOTE: The steering gear rack holding tool must be reversed to install the RH tie rod or damage to the rack and/or special tool may occur.

NOTE: The holding tool can only be used on the LH side of the steering gear.

NOTE: LH side shown RH side similar.

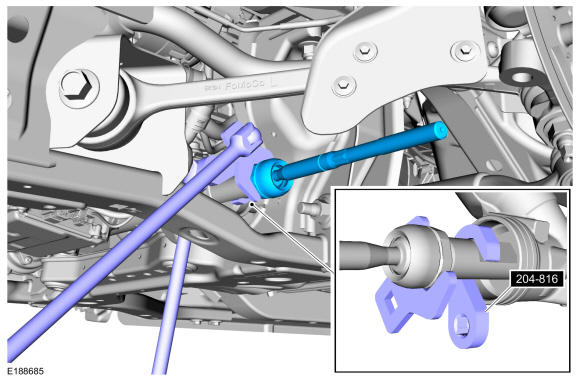

On both sides. Using the special tool to hold the rack and an appropriate size crows foot wrench or open end wrench, install the inner tie rod and steering stop. Use Special Service Tool: 204-816 Rack Holding Tool.

Torque: 89 lb.ft (120 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Install the steering stop using hand force only. Striking the steering stop may cause damage to the stop.

NOTE: An audible click will be heard when the steering stop seats onto the inner tie rod. Make sure that the steering stop is fully seated and cannot be separated by hand.

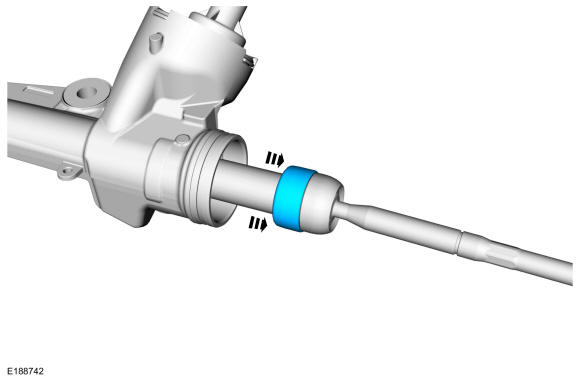

Install the steering stop onto the inner tie rod using hand force only.
- GT350R and GT500 Models, LH side only.
- All other models, On both sides.
Courtesy of FORD MOTOR COMPANY

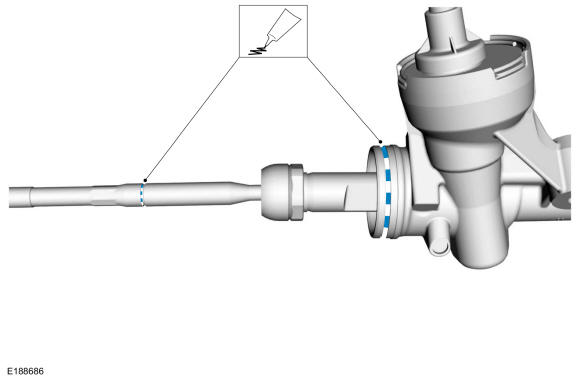

On both sides. Apply the specified grease to the steering gear-to-bellows boot mating surface and bellows boot groove on the inner tie-rod.
Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

Courtesy of FORD MOTOR COMPANY
NOTE: LH side shown, RH side similar.

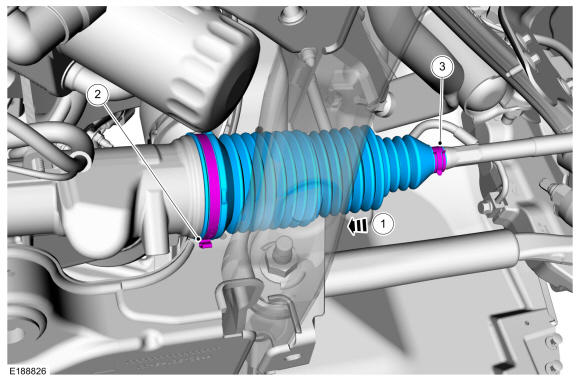

1. NOTE: Make sure the steering gear bellows boot is positioned correctly over the steering gear housing bead and the groove in the inner tie rod.

  On both sides. Install the new steering gear bellows boot.
2. On both sides. Install the new inner bellows boot clamp. Use the General Equipment: Boot Clamp Pliers
3. On both sides. Install the new outer bellows boot clamp.
Courtesy of FORD MOTOR COMPANY

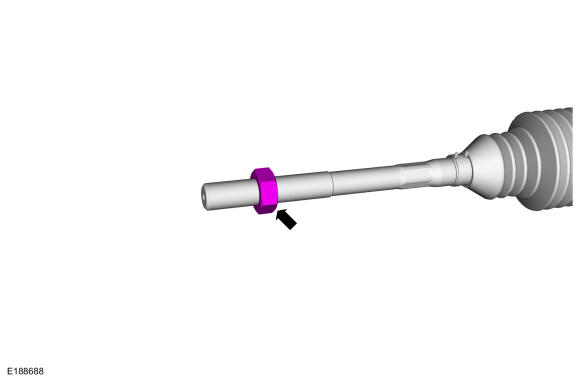

On both sides. Thread the tie-rod end jam nut onto the inner tie rod.

Courtesy of FORD MOTOR COMPANY

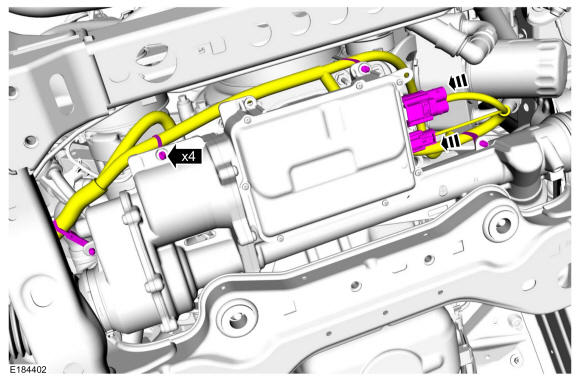

Position the EPAS gear wiring harness, clip the 4 wiring fasteners and connect the 2 electrical connectors.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure steering gear is centered before connecting the steering column shaft. Damage to the steering gear and/or clockspring may result.

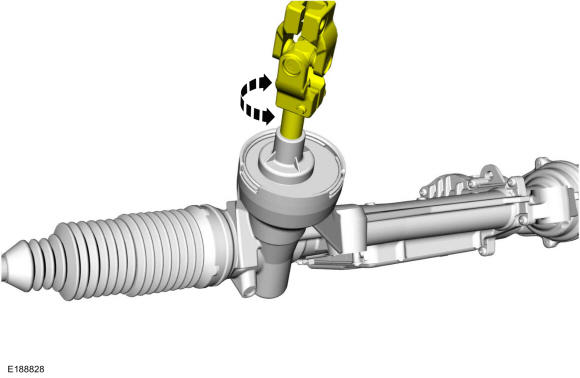

Turn the steering gear input shaft completely to the right then completely to the left and return to the center position.

Courtesy of FORD MOTOR COMPANY
NOTE: DO NOT hammer, pry or force steering column and column shafts during installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.

NOTE: DO NOT attempt to remove or install the steering column lower coupler at the steering gear without first loosening the steering column dash seal and fasteners. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.

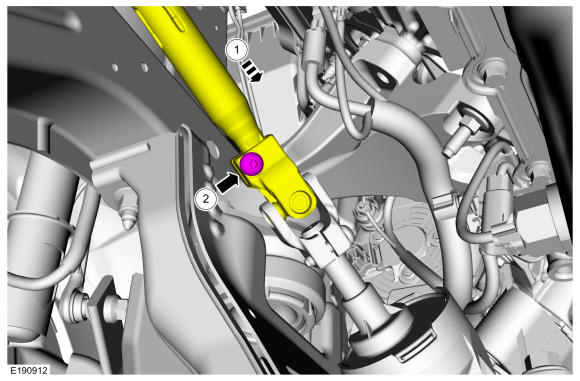

1. Connect the steering column shaft to the steering gear universal joint.
2. Install the new steering column shaft bolt.
  Torque: 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY
Inspect the steering column lower shaft. Refer to: Steering Column Collapsed Check

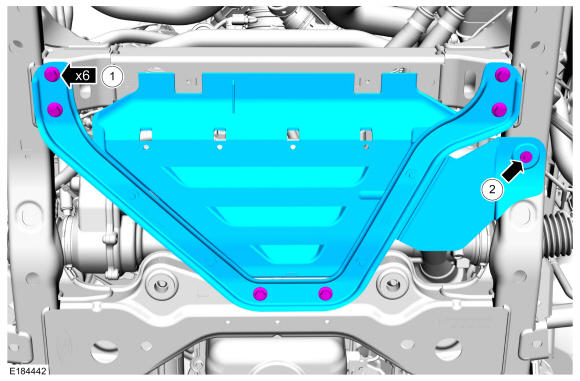

1. NOTE: If equipped.

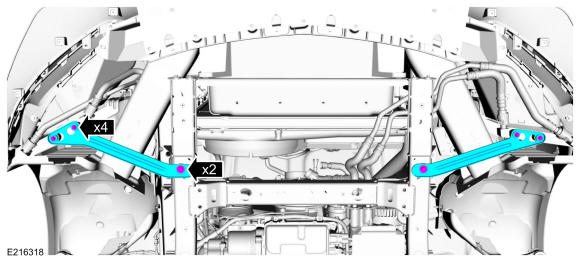

  Position the V-brace and underbody shield and install the 6 V-brace bolts.

  Torque: 46 lb.ft (63 Nm)
2. Install the underbody shield bolt.
Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

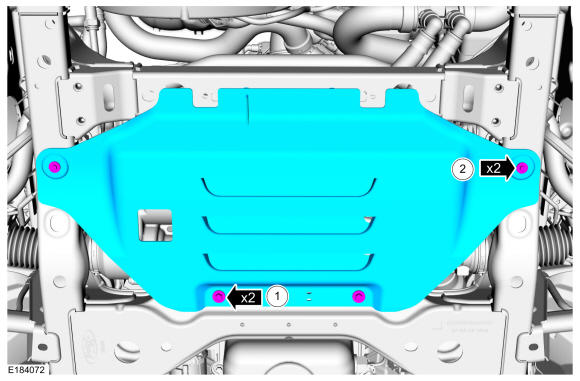

1. Position the underbody shield and install the 2 rearward underbody shield bolts.
2. Install the 2 remaining underbody shield bolts.
Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Install the 2 support brackets and the bolts.

Torque: Bracket to subframe bolts: 22 lb.ft (30 Nm) / Bracket to cooler bolts: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

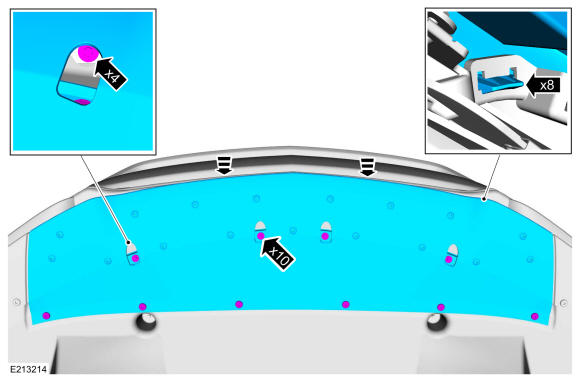

Position the underbody shield and install the bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

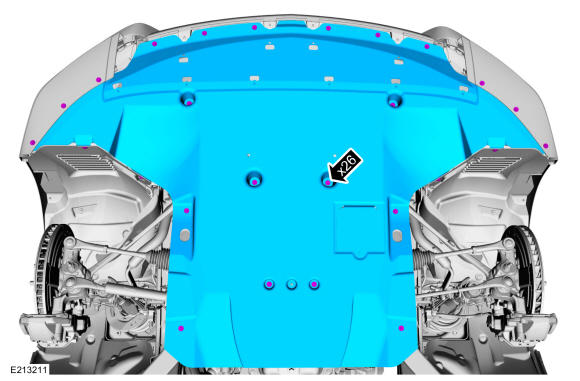

Position the underbody shield and install the bolts.

Courtesy of FORD MOTOR COMPANY
On both sides. Install the tie rod end. Refer to: Tie Rod End

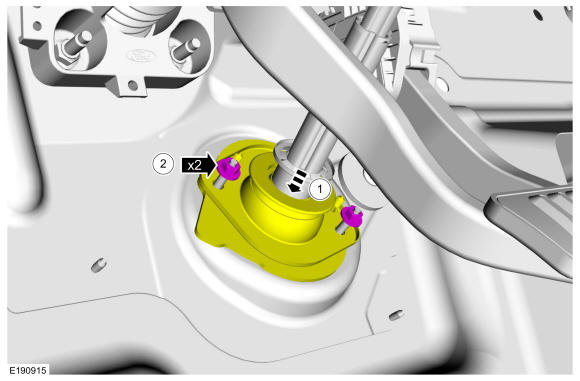

1. Position the steering column dash seal.
2. Tighten the steering column dash seal nuts.
  Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY
Turn the steering wheel lock-to-lock to assure the steering stops are fully seated.
2.3L EcoBoost (231kW/314PS)

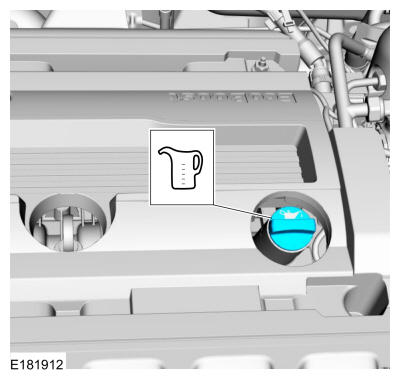

Fill the engine with clean engine oil. Refer to: appropriate service information.
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

Courtesy of FORD MOTOR COMPANY

All vehicles
When installing a new steering gear, it must be configured (using vehicle as-built data or module configuration information retrieved earlier in this procedure). Connect a scan tool and follow the scan tool instructions. Refer to: MODULE CONFIGURATION .
Check and if necessary adjust front toe. Refer to: Front Toe Adjustment
