Front Brake Disc: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Activate the brake service mode. Refer to: Brake Service Mode Activation and Deactivation .
- Remove the wheel and tire. Refer to: Wheel and Tire .
-
NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

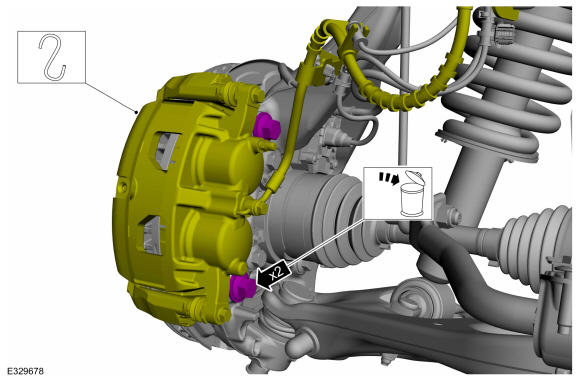

Remove the 2 anchor plate bolts and position the brake caliper and anchor plate assembly aside. Discard the bolts.
Torque
: 184 lb.ft (250 Nm)

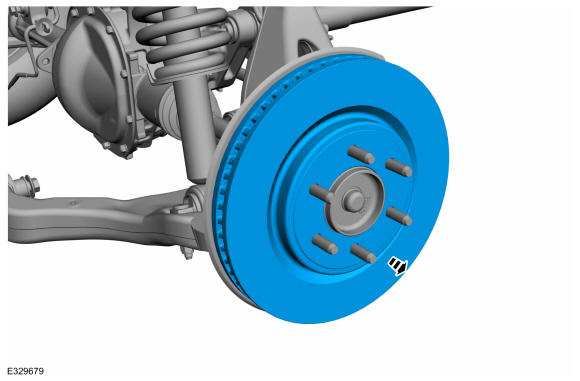

- Remove the brake disc.
