Connector Repair Procedures

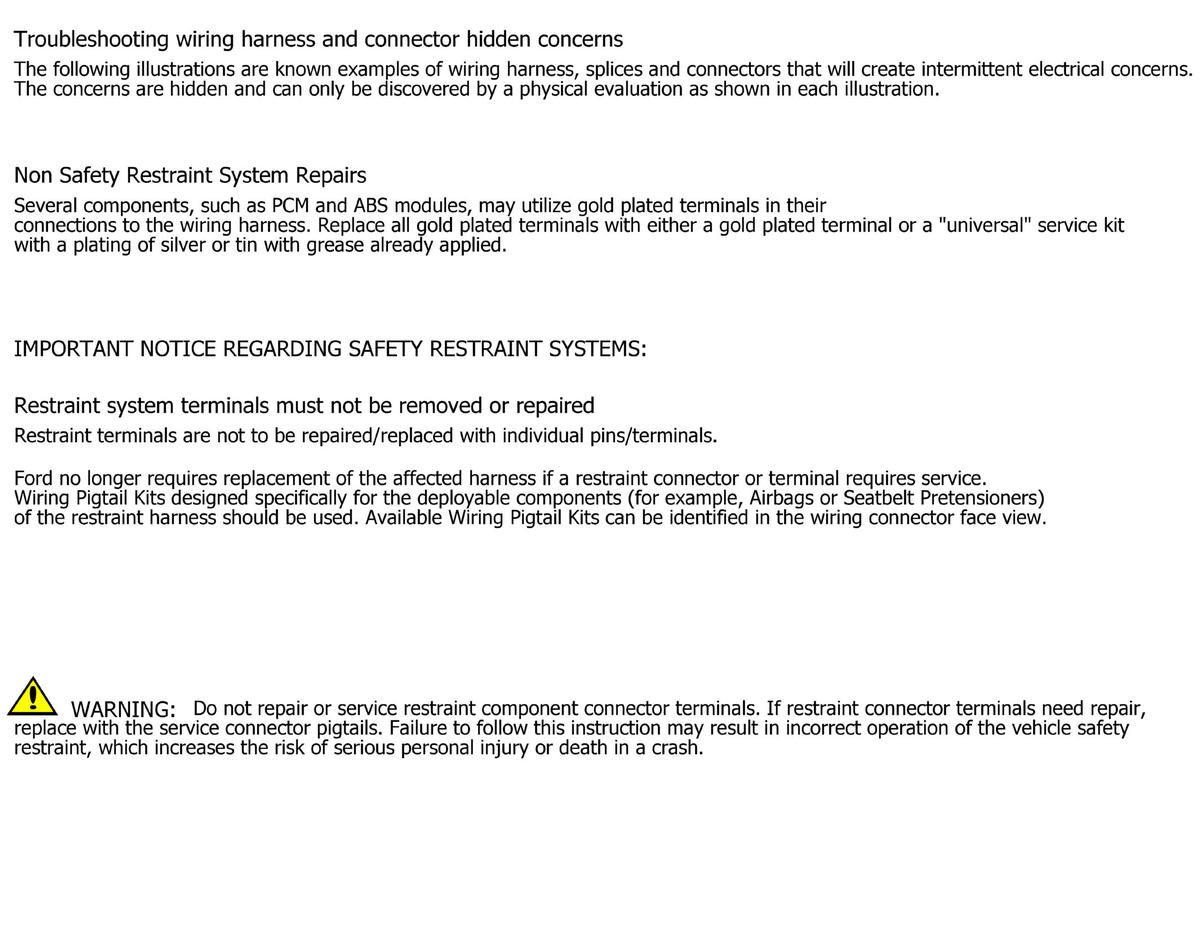

GFDWR145128Courtesy of FORD MOTOR COMPANY

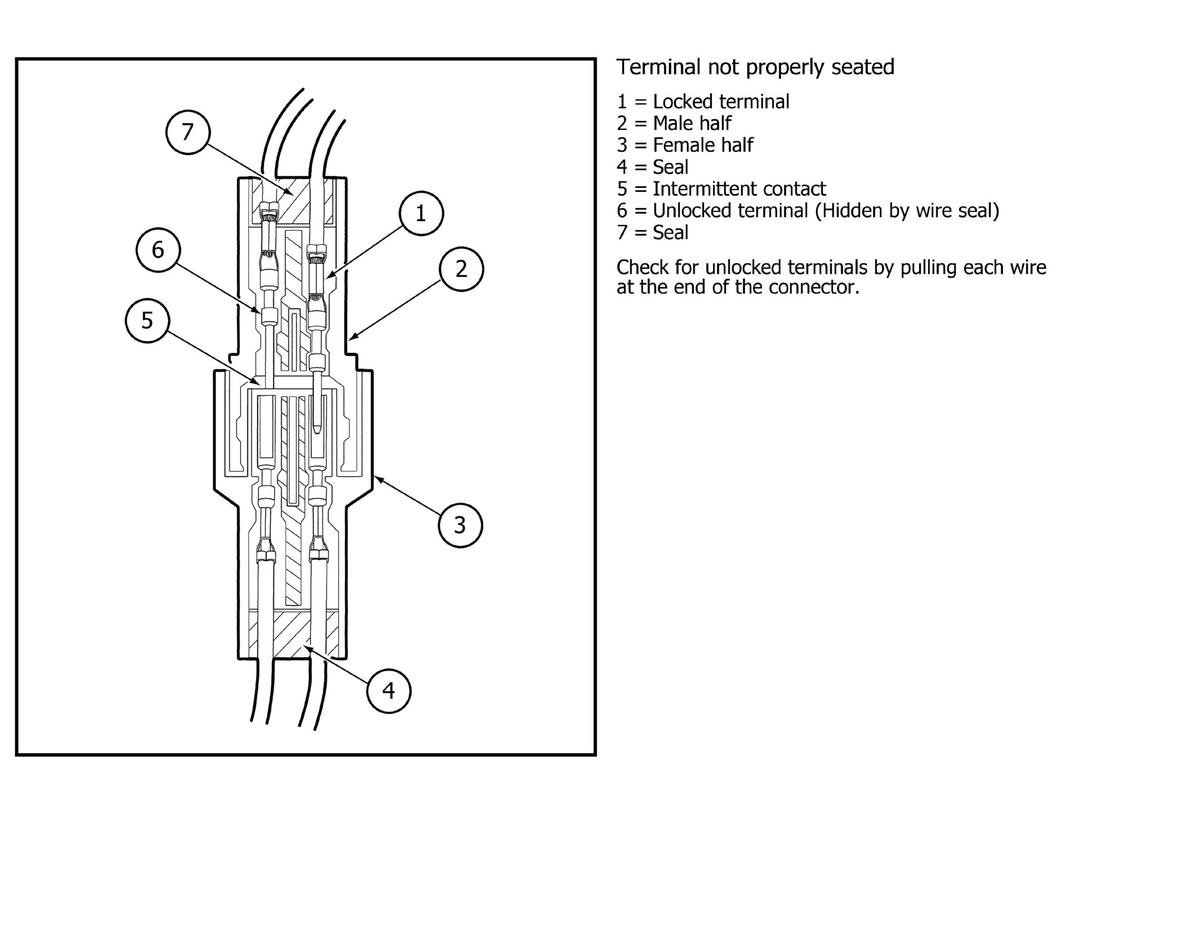

GFDWR145129Courtesy of FORD MOTOR COMPANY

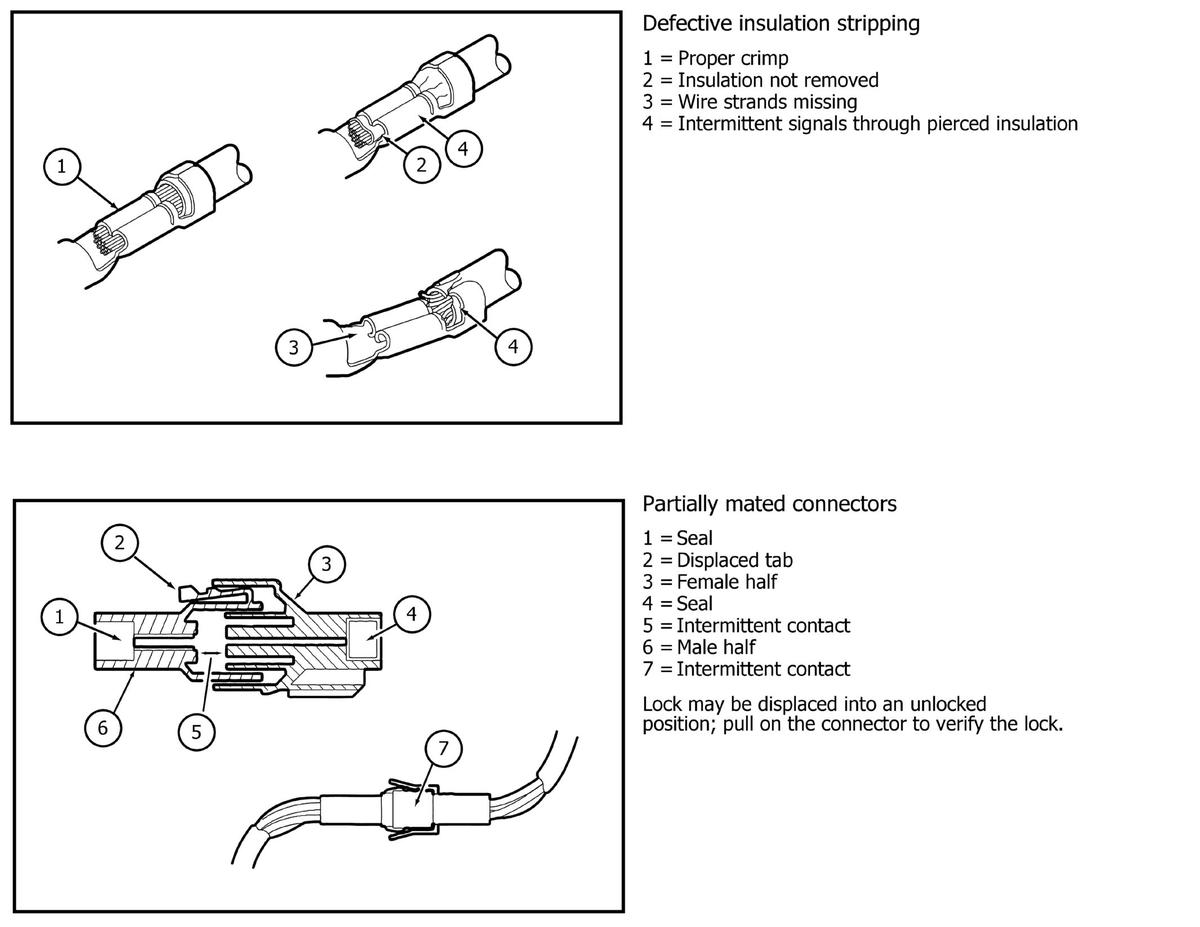

GFDWR145130Courtesy of FORD MOTOR COMPANY

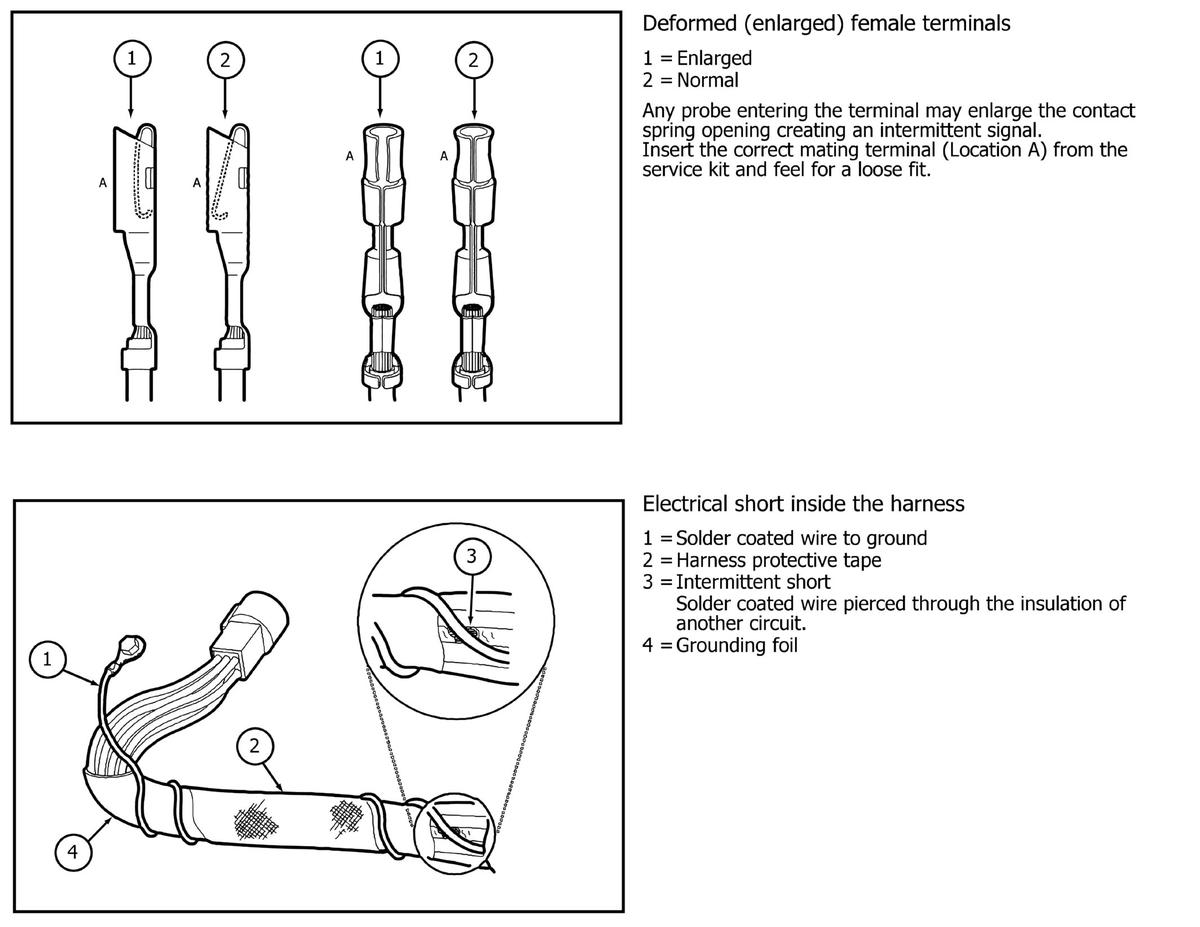

GFDWR145131Courtesy of FORD MOTOR COMPANY

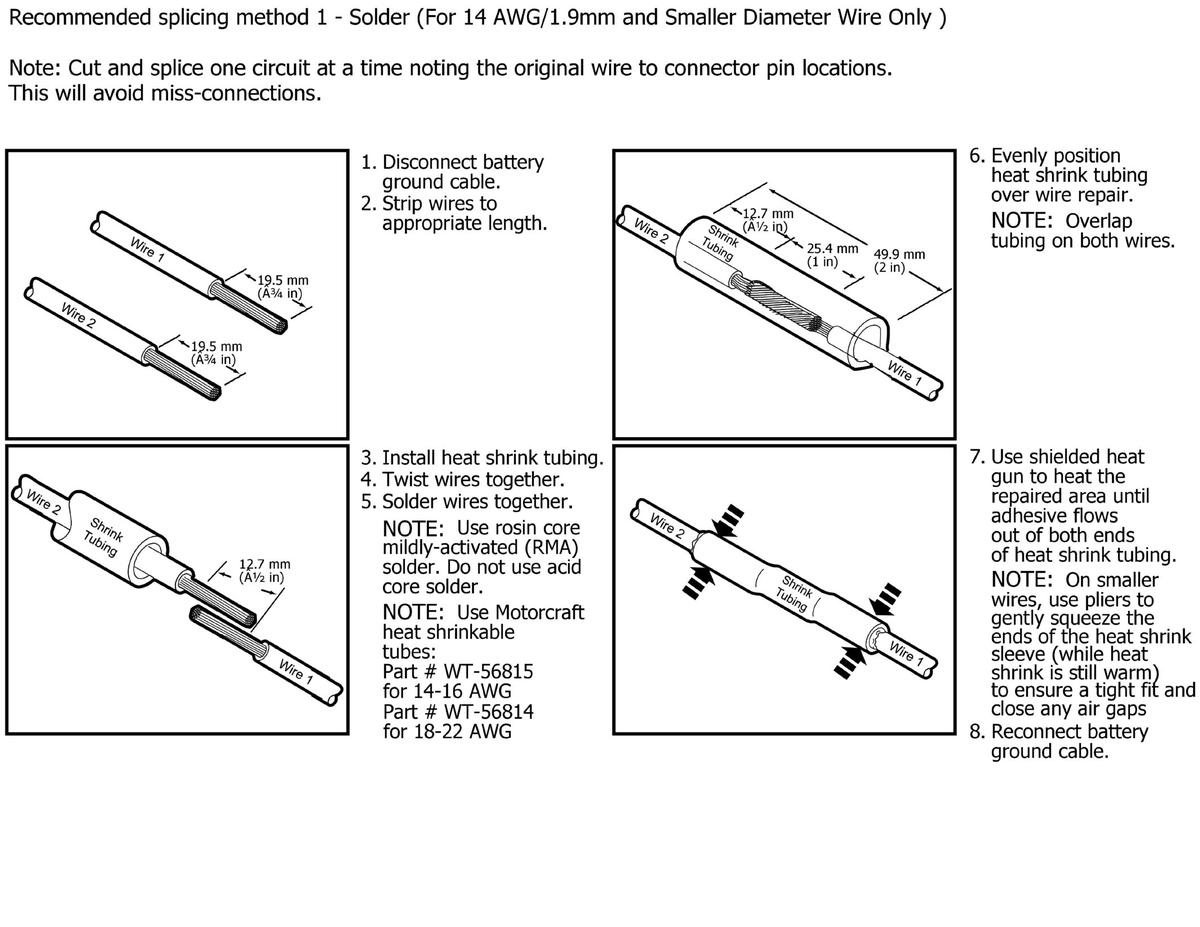

GFDWR145132Courtesy of FORD MOTOR COMPANY

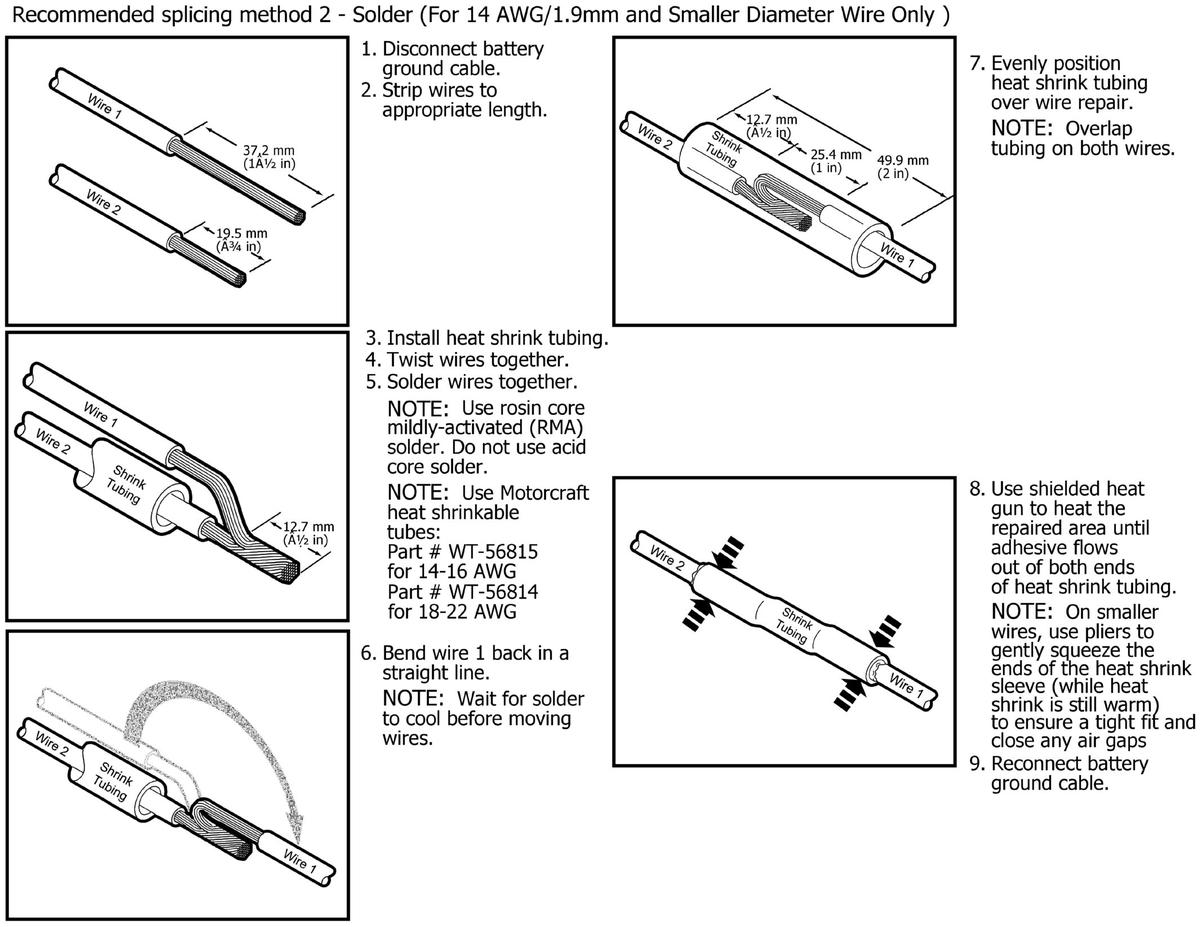

GFDWR145133Courtesy of FORD MOTOR COMPANY

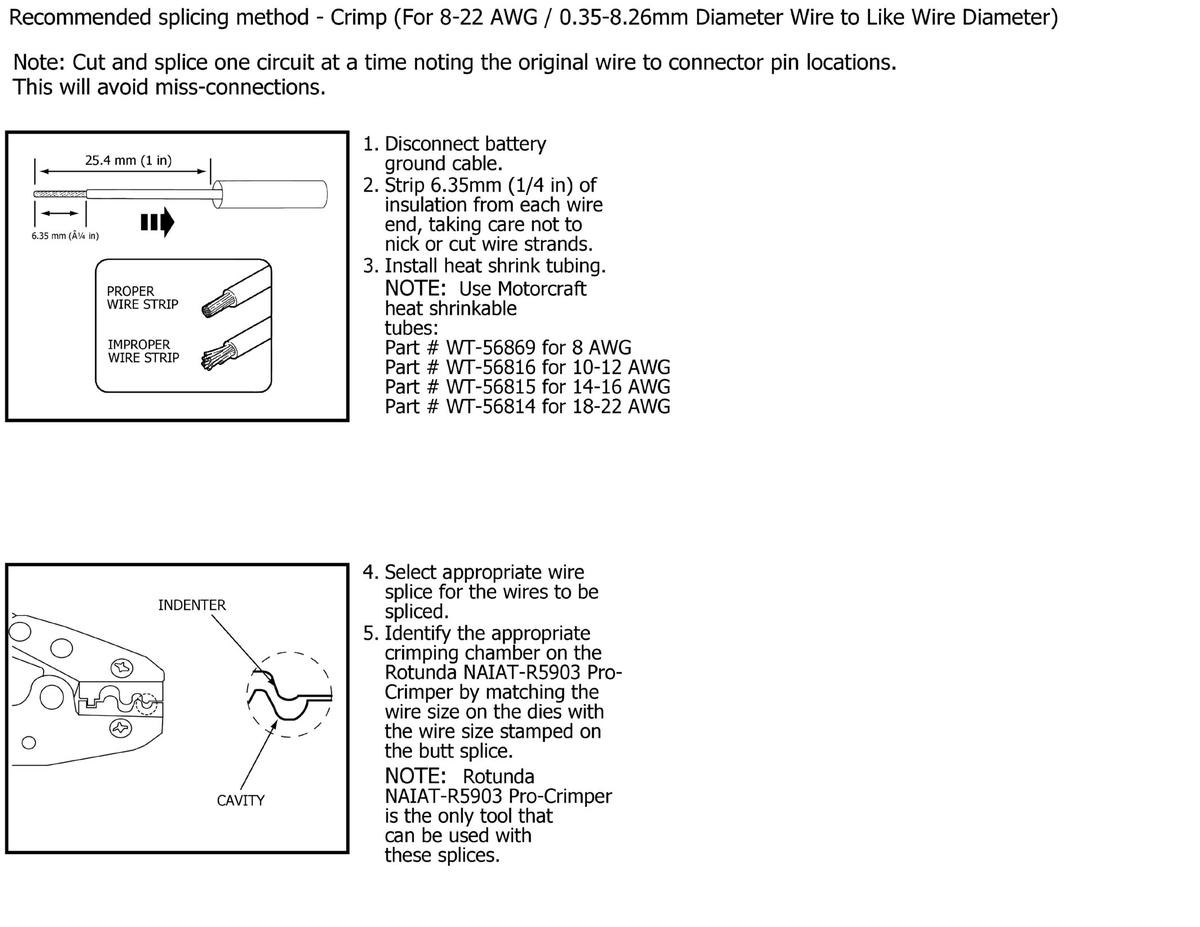

GFDWR145134Courtesy of FORD MOTOR COMPANY

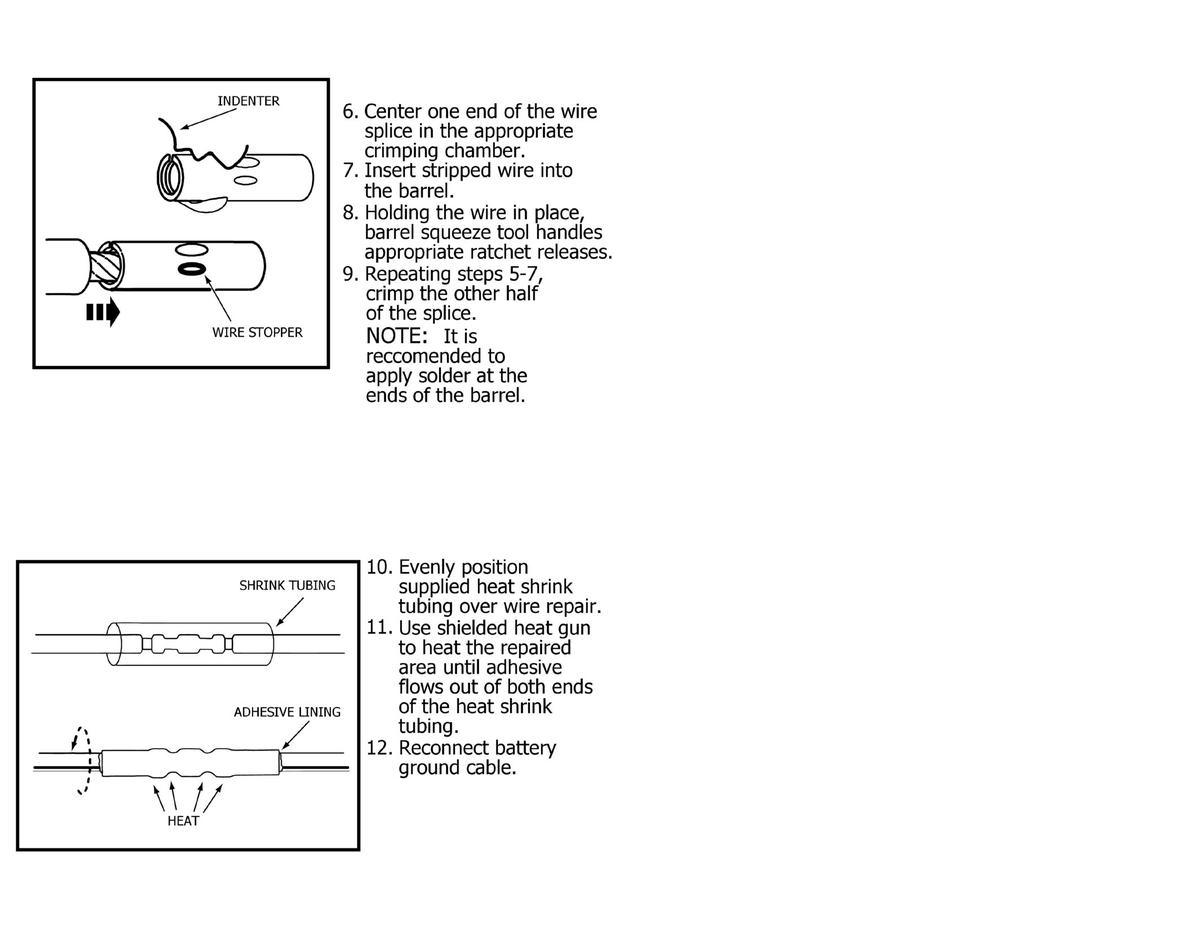

GFDWR145135Courtesy of FORD MOTOR COMPANY

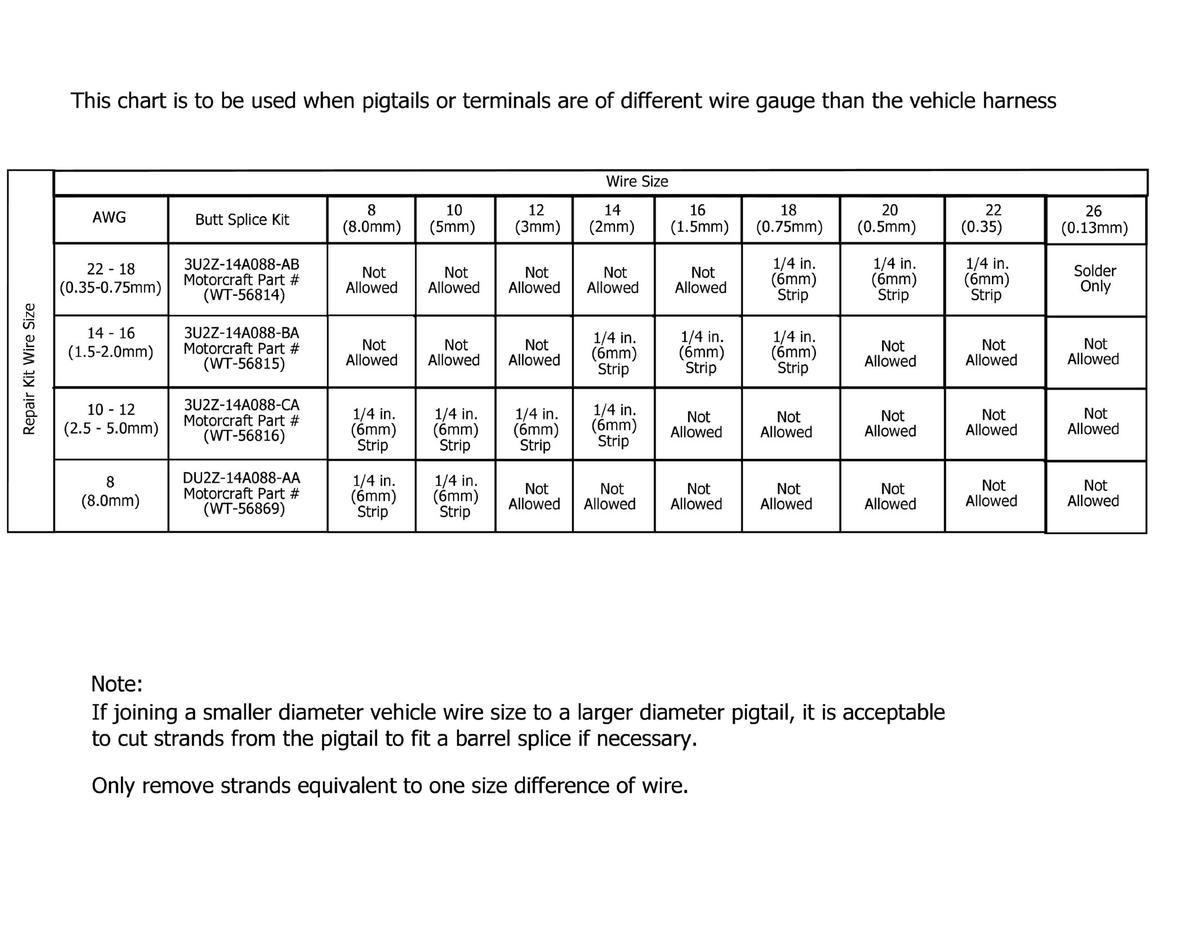

GFDWR145136Courtesy of FORD MOTOR COMPANY
