Steering Gear Boot: Installation

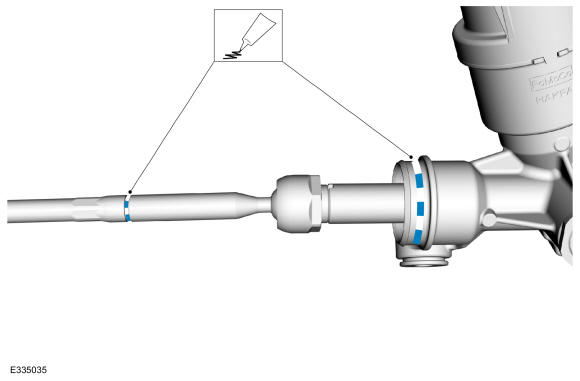

Apply the specified grease to the steering gear-to-bellows boot mating surface and bellows boot groove on the inner tie-rod.
Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

Courtesy of FORD MOTOR COMPANY

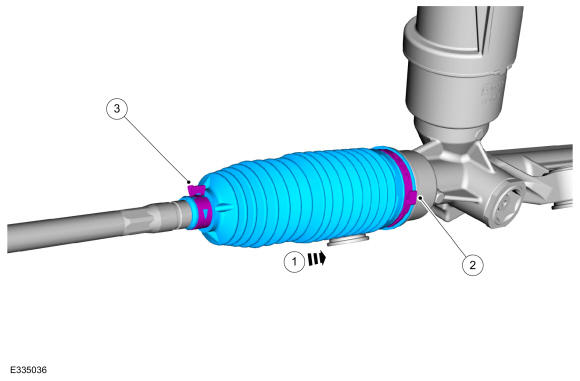

Install the steering gear boot.
1. Install the steering gear boot.
2. Install the new inner steering gear boot clamp. Use the General Equipment: Boot Clamp Pliers
3. Install the new outer steering gear boot clamp.
Courtesy of FORD MOTOR COMPANY
NOTE: Use number of turns recorded during removal.

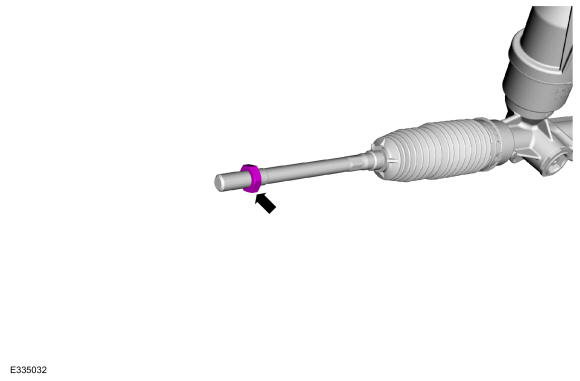

Install the tie rod end jam nut.

Courtesy of FORD MOTOR COMPANY
Install the tie rod end. Refer to: Tie Rod End .
