Gear Shift Module (GSM): Removal
NOTE:
Removal steps in this procedure may contain installation details.

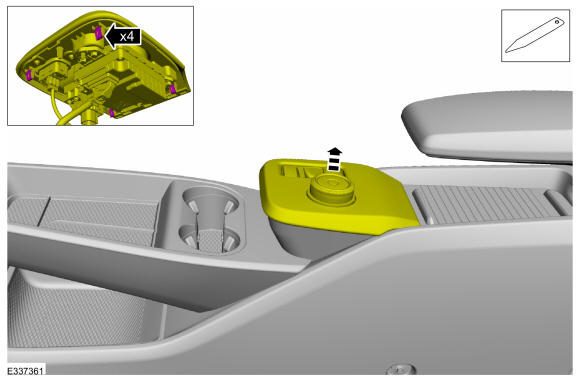

- Release the clips and remove the floor console upper trim panel. Use the General Equipment: Interior Trim Remover
 Courtesy of FORD MOTOR COMPANY
|

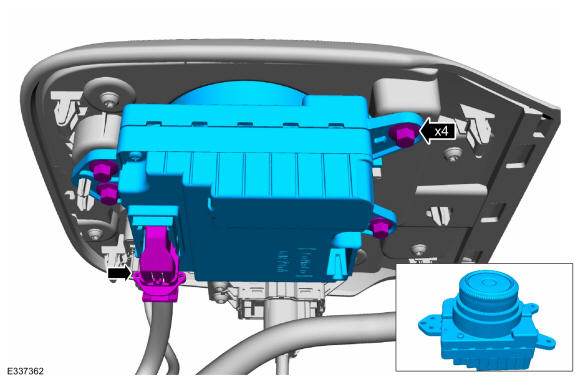

- Disconnect the GSM connector, remove the screws and the GSM.
 Courtesy of FORD MOTOR COMPANY
|
