Module Controlled Functions - Component Location

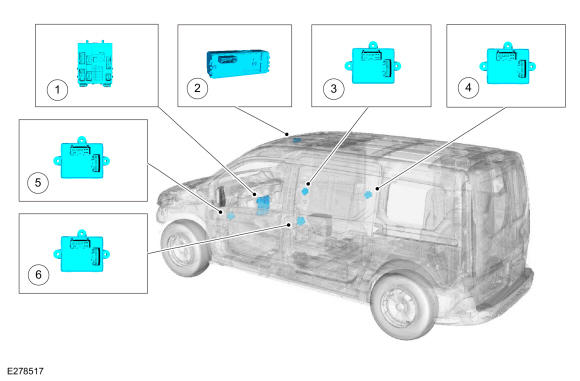

Component Location

GFD573458Courtesy of FORD MOTOR COMPANY
Item Description
1 BCM
2 RTM
3 PDM
4 RDM- RH
5 DDM
6 RDM- LH
