Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: WHEELS AND TIRES .
    1. Disconnect the front wheel speed sensor electrical connector.
    2. Remove the bolt and the front wheel speed sensor.

      Torque

      : 44 lb.in (5 Nm)

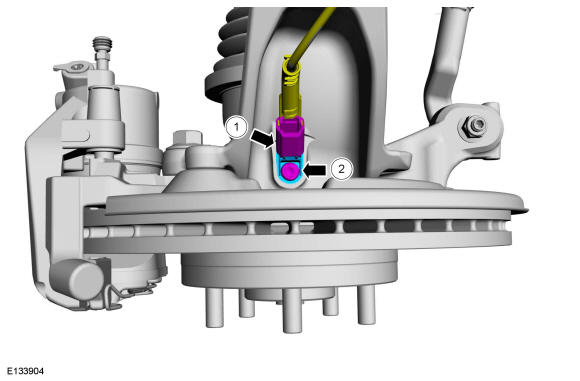

GFD570118Courtesy of FORD MOTOR COMPANY
