OEM Ground Distribution: Grounds

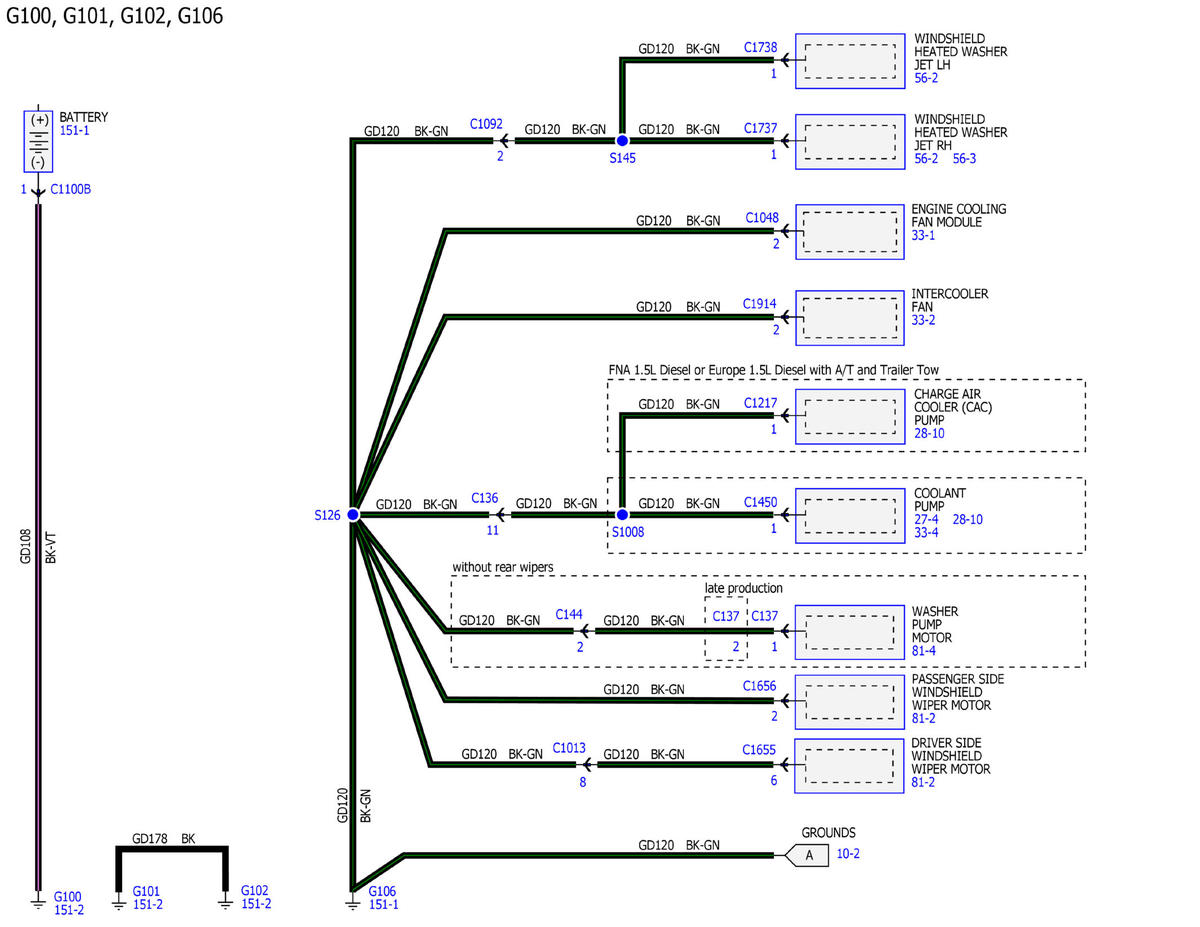

GFDWR130030Courtesy of FORD MOTOR COMPANY

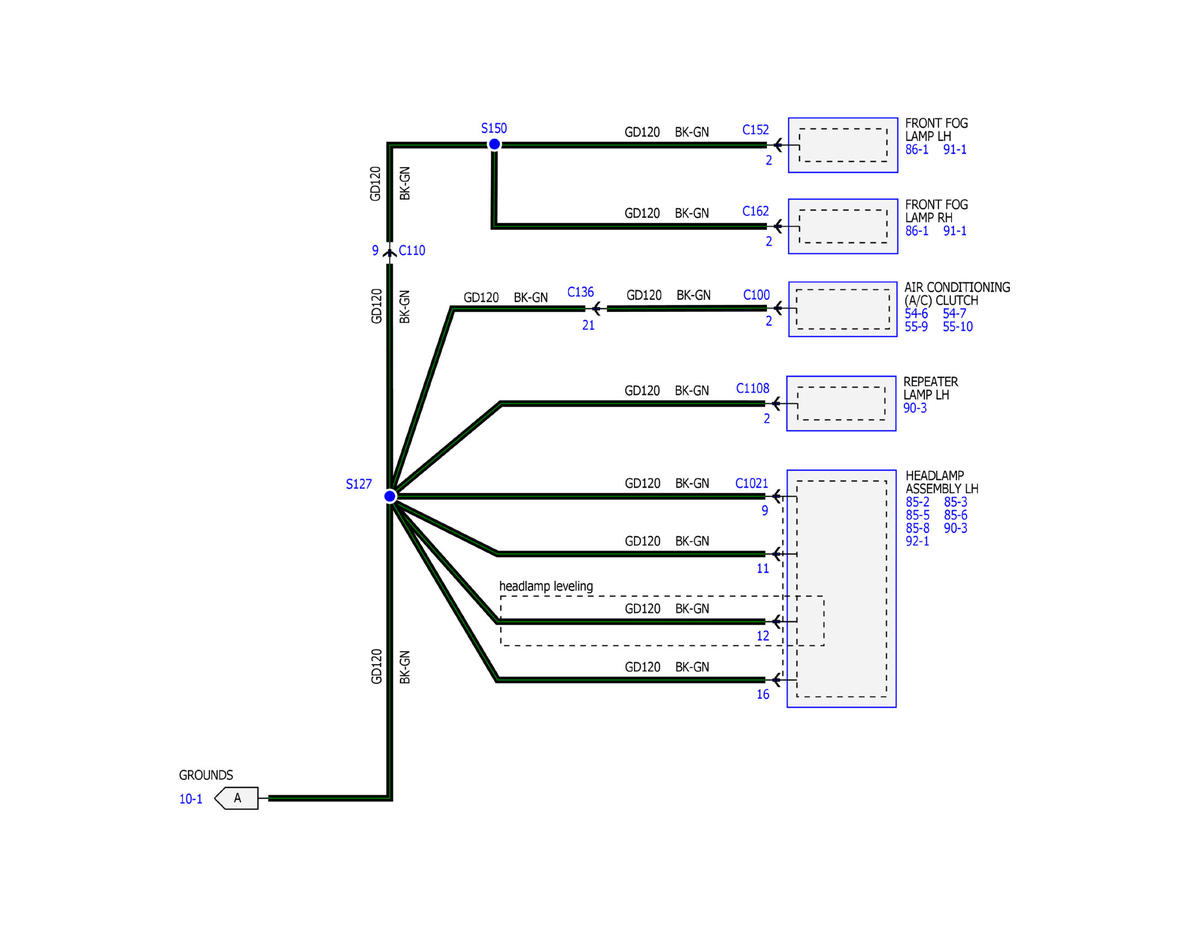

GFDWR130041Courtesy of FORD MOTOR COMPANY

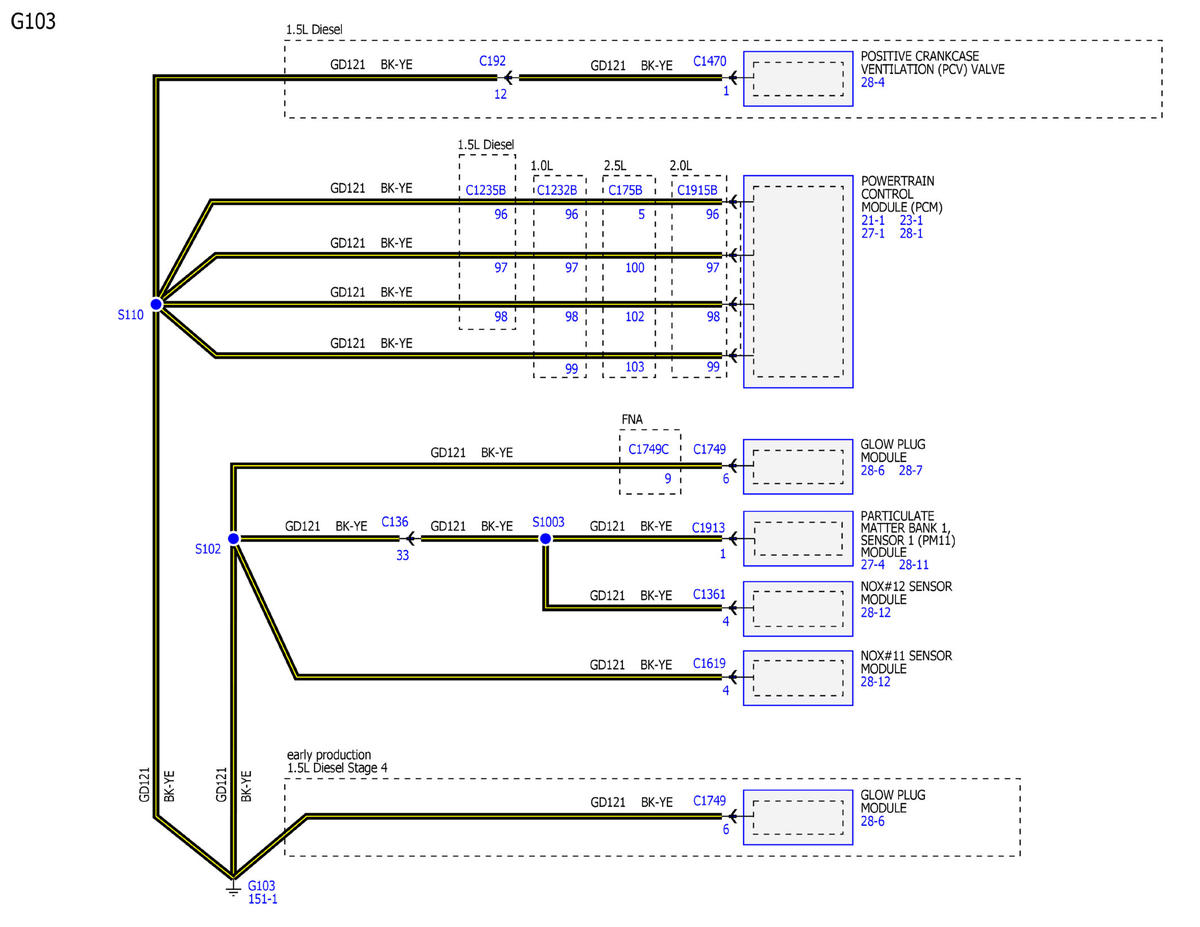

GFDWR130045Courtesy of FORD MOTOR COMPANY

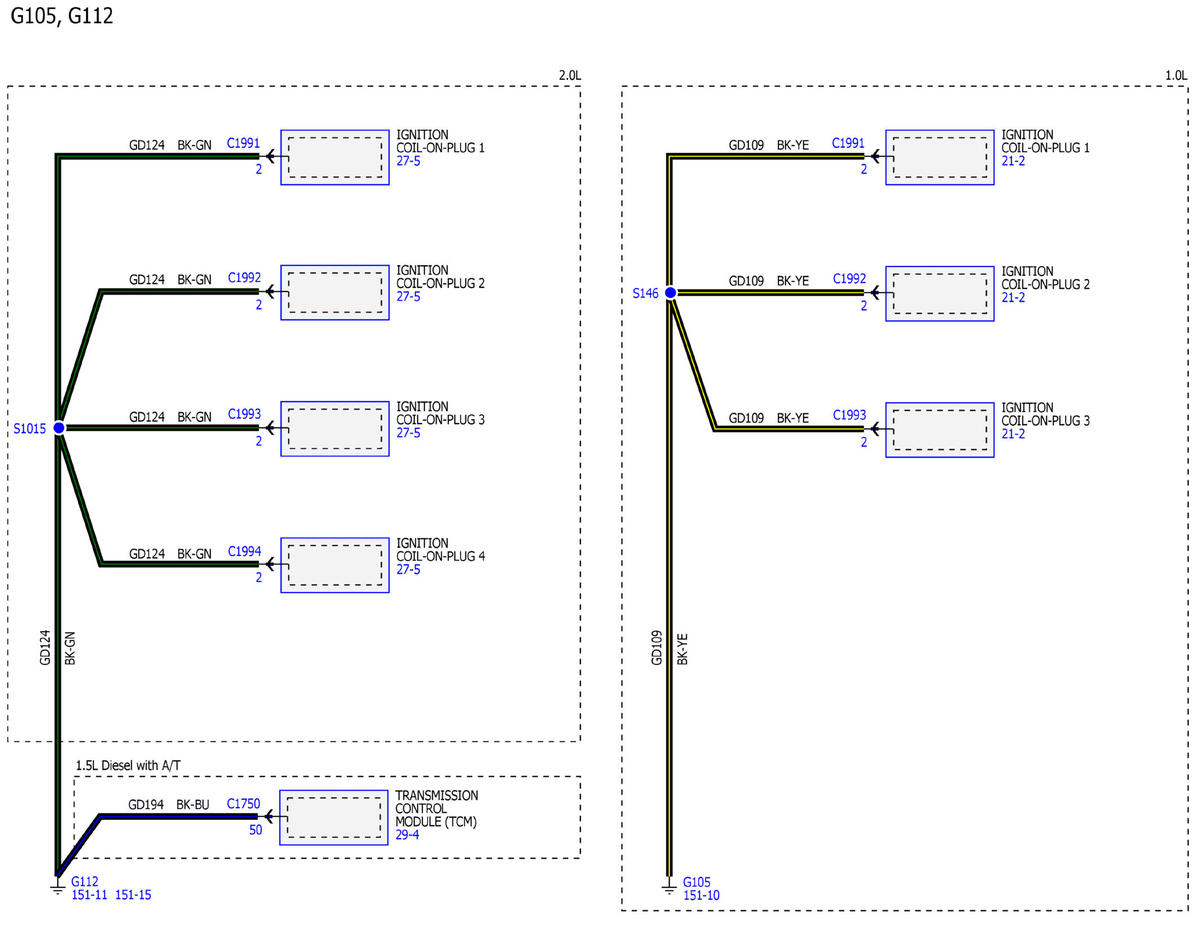

GFDWR130046Courtesy of FORD MOTOR COMPANY

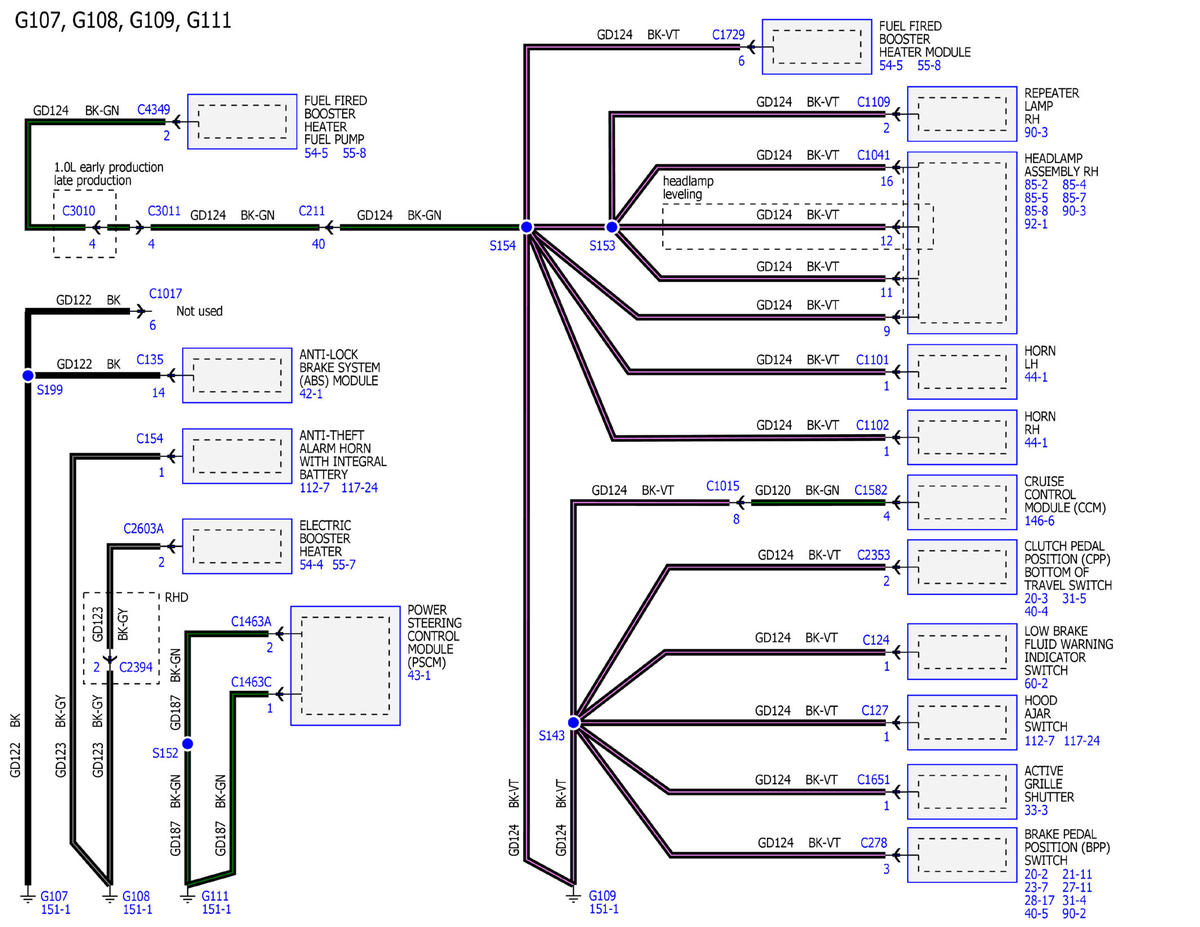

GFDWR130047Courtesy of FORD MOTOR COMPANY

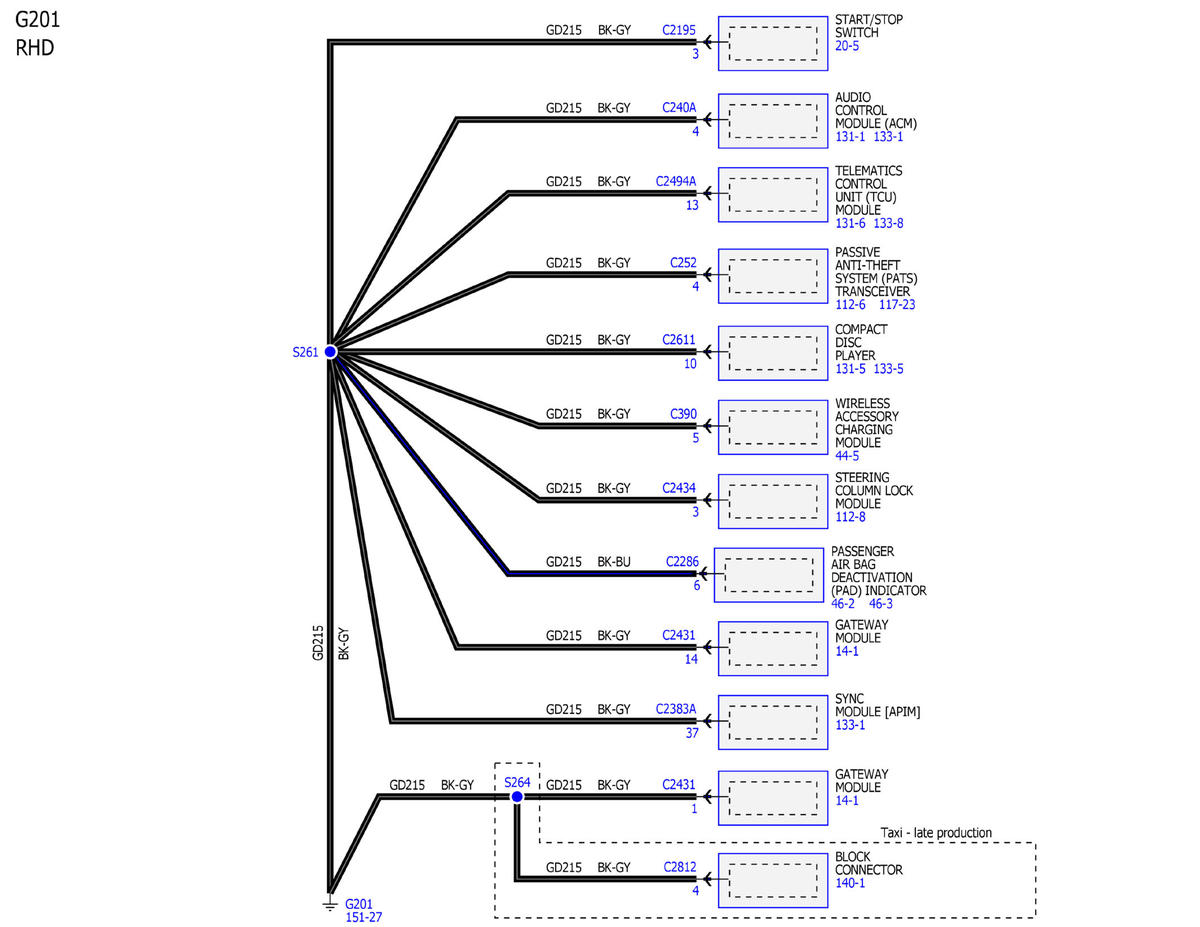

GFDWR130048Courtesy of FORD MOTOR COMPANY

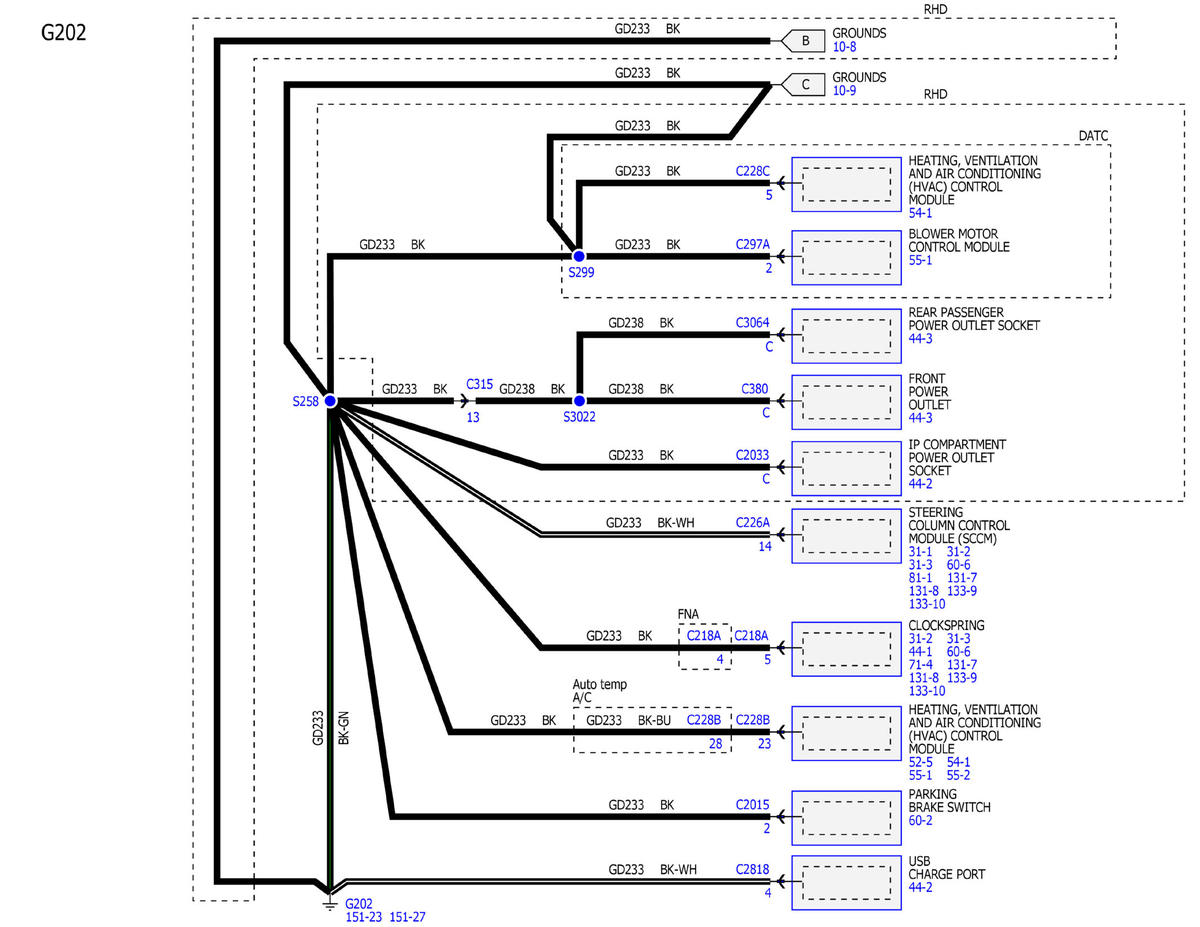

GFDWR130049Courtesy of FORD MOTOR COMPANY

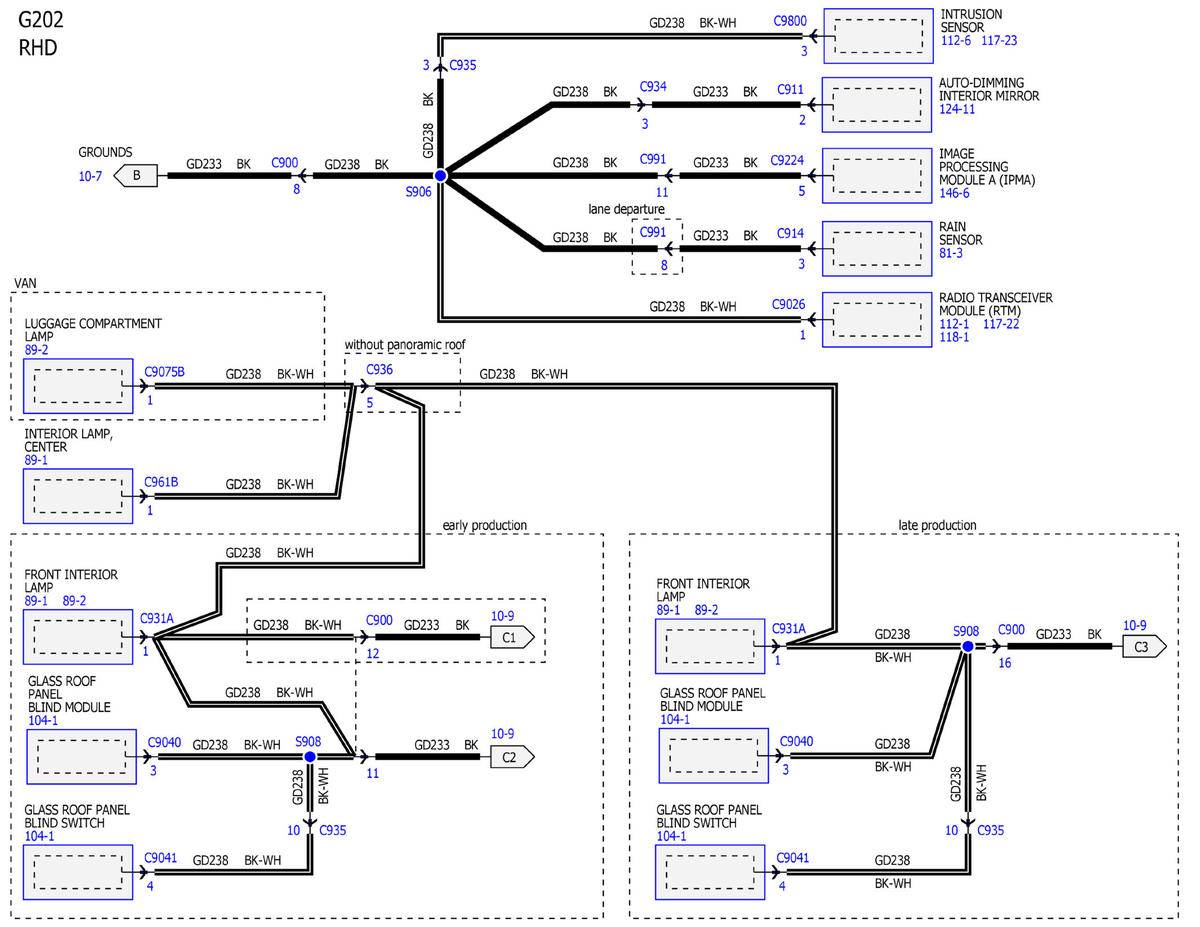

GFDWR130050Courtesy of FORD MOTOR COMPANY

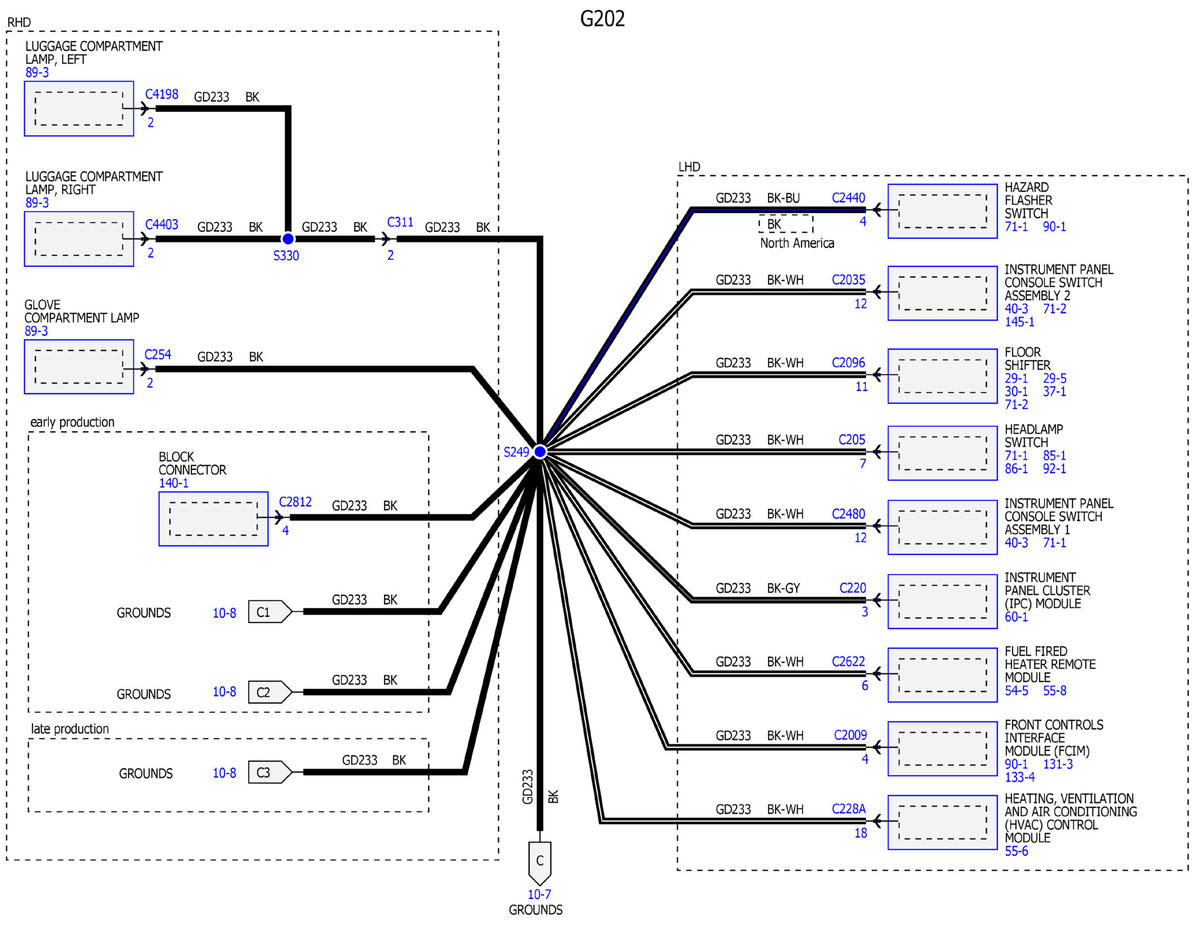

GFDWR130051Courtesy of FORD MOTOR COMPANY

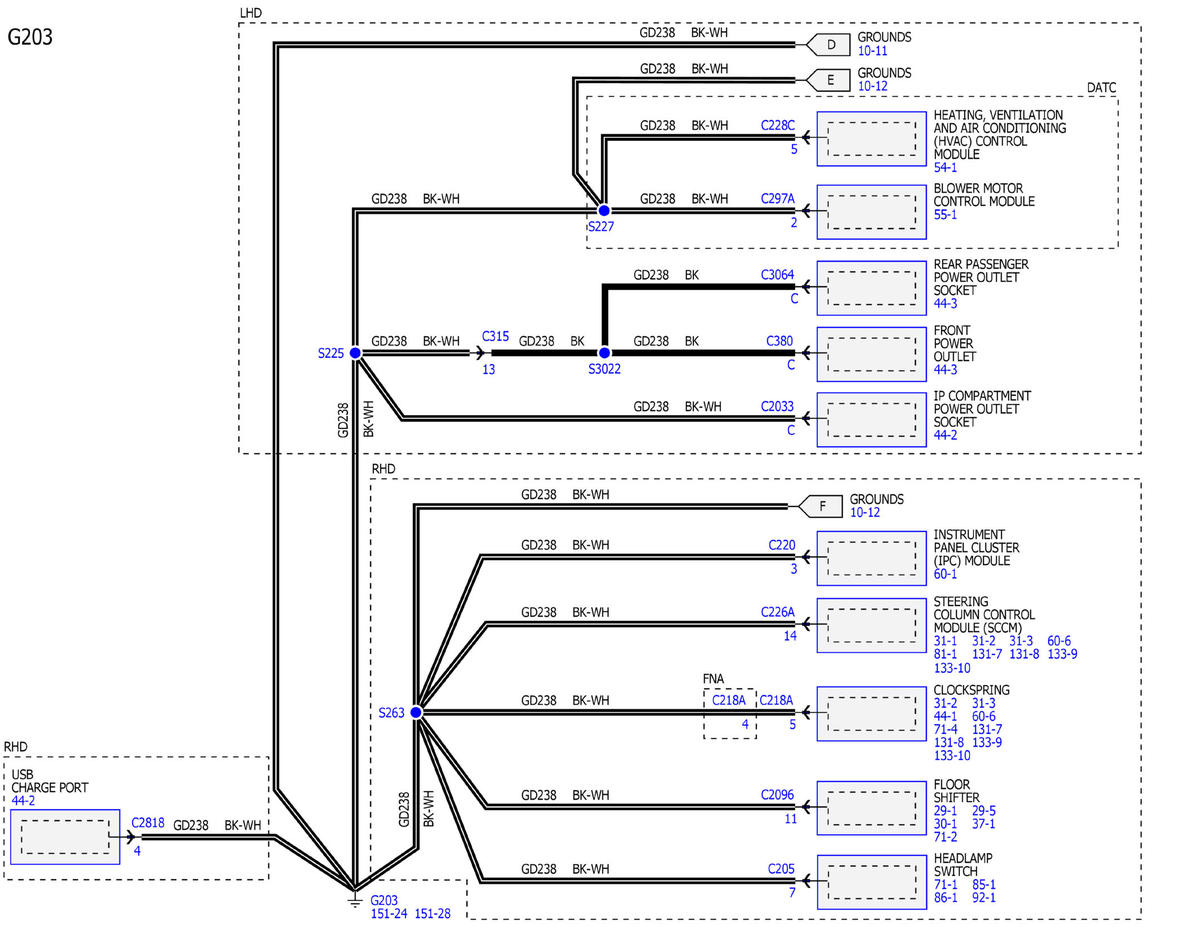

GFDWR130031Courtesy of FORD MOTOR COMPANY

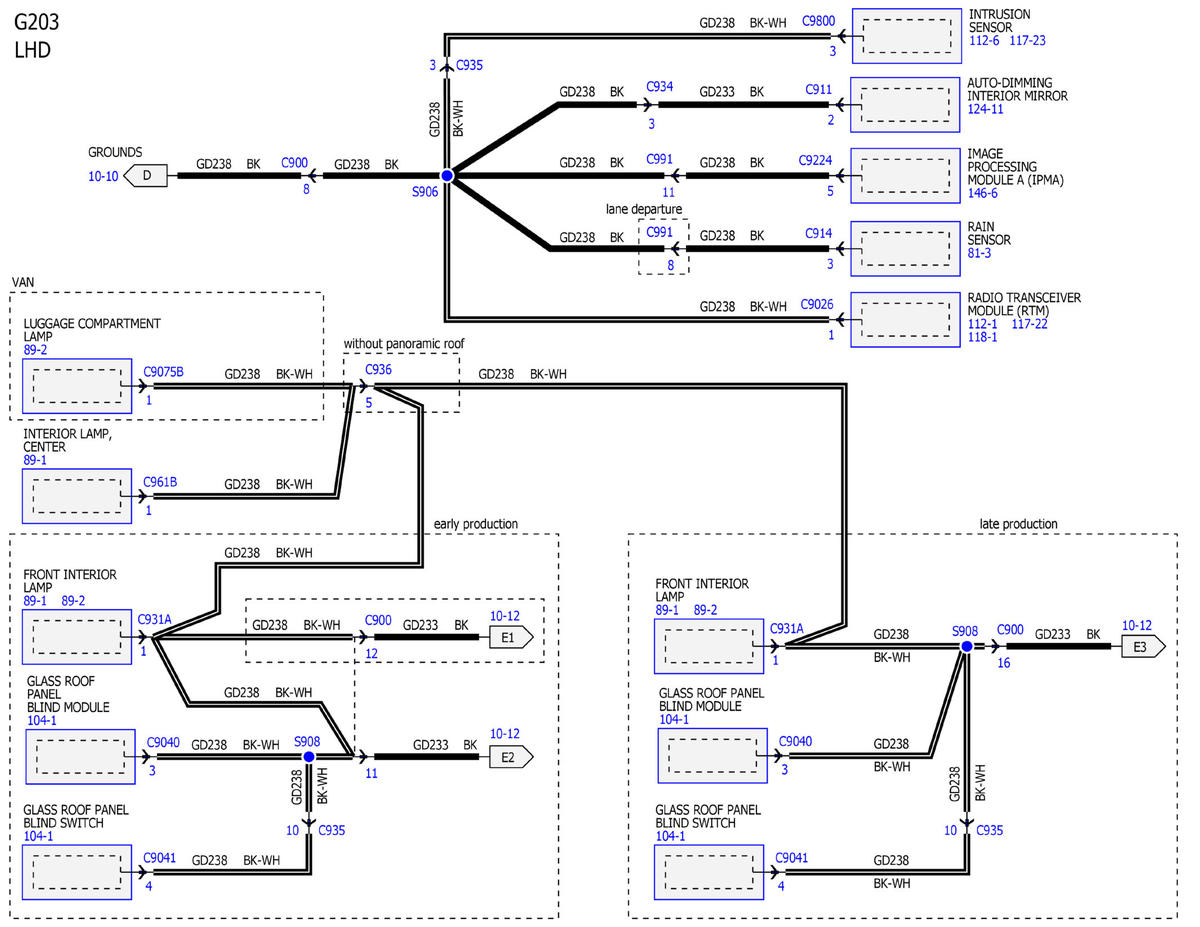

GFDWR130032Courtesy of FORD MOTOR COMPANY

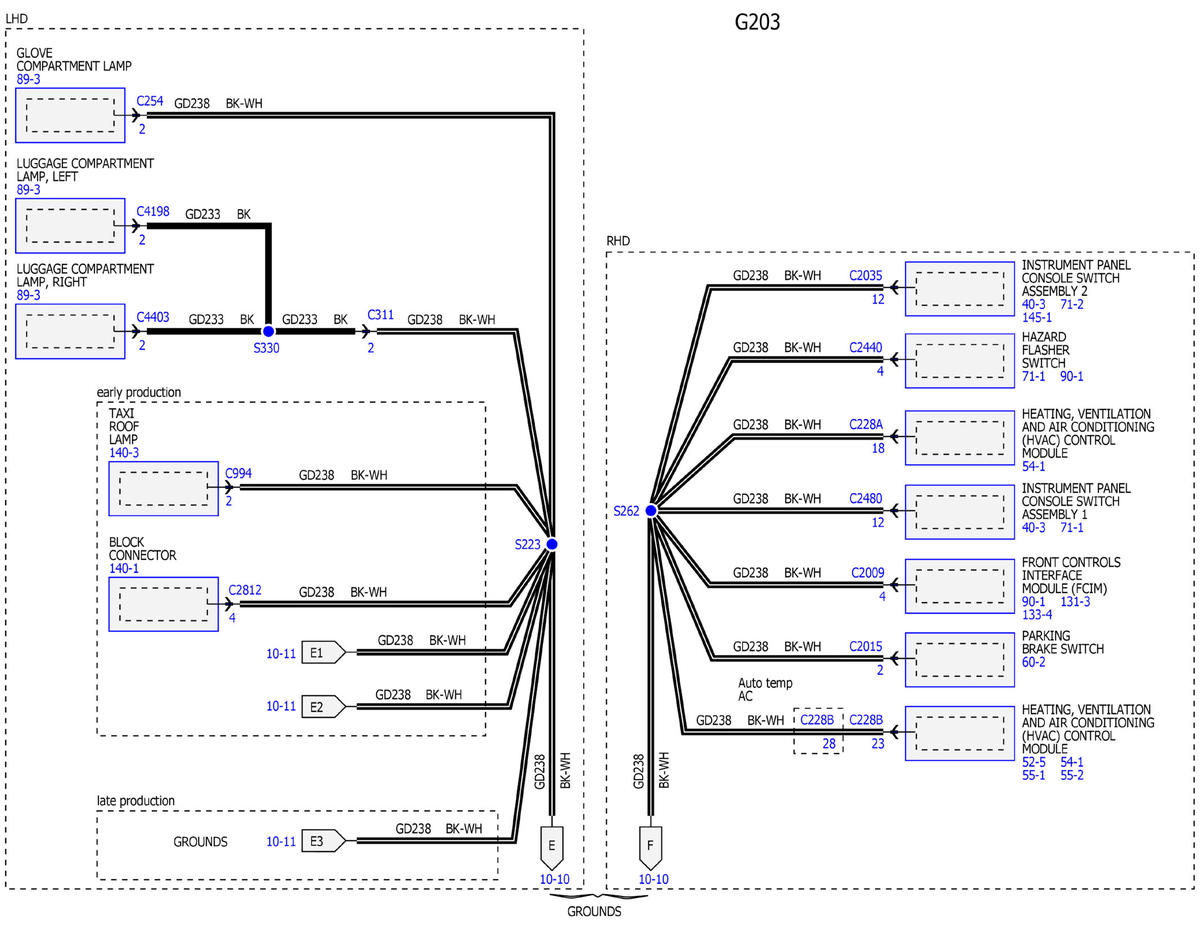

GFDWR130033Courtesy of FORD MOTOR COMPANY

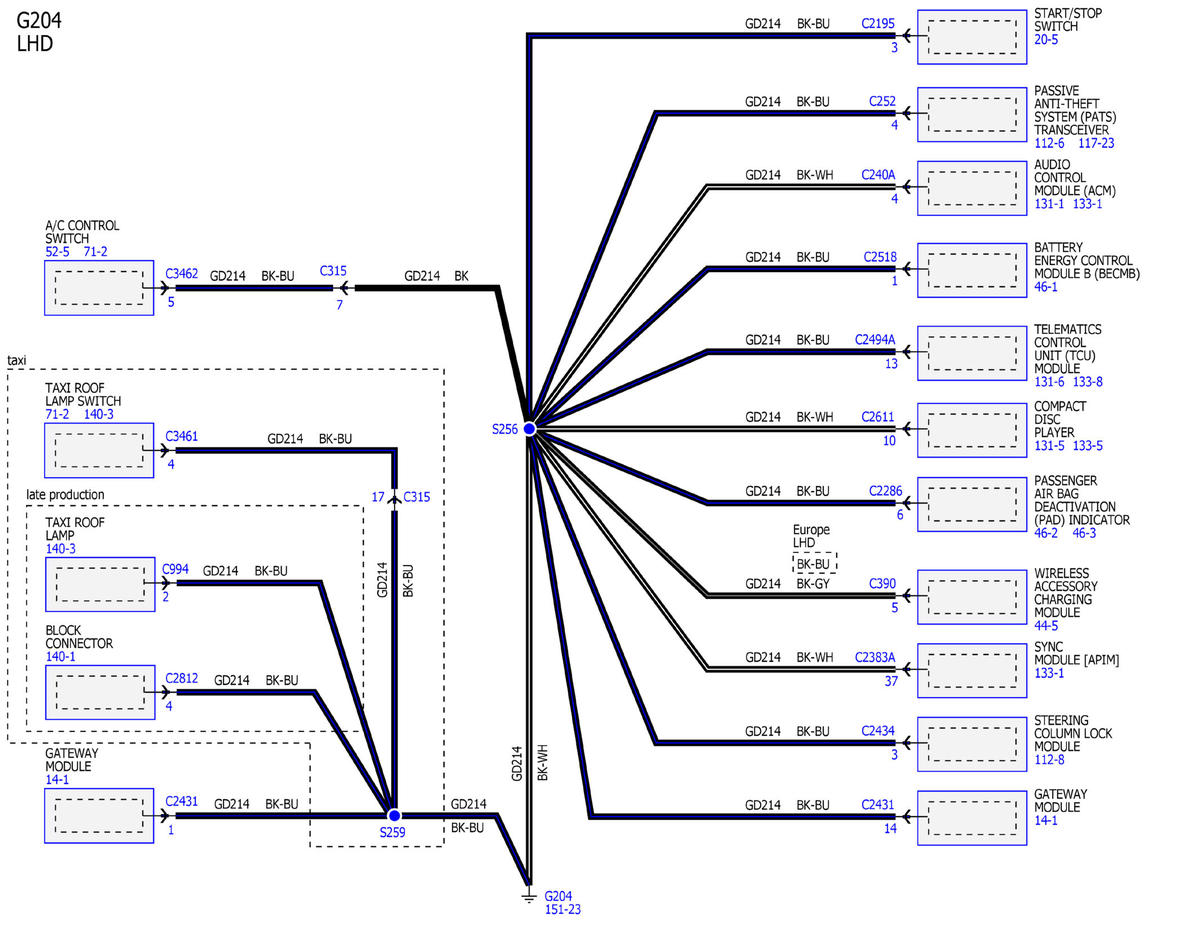

GFDWR130034Courtesy of FORD MOTOR COMPANY

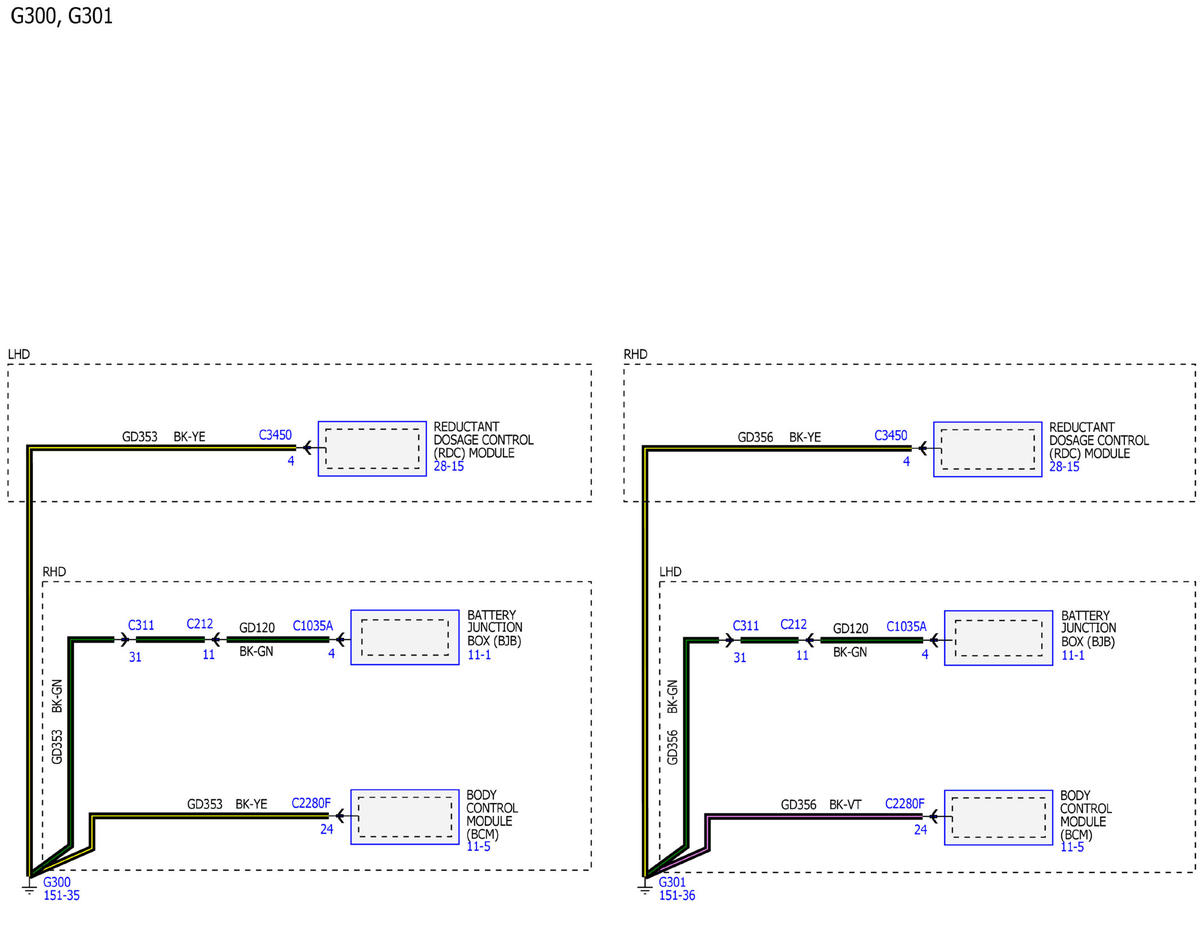

GFDWR130035Courtesy of FORD MOTOR COMPANY

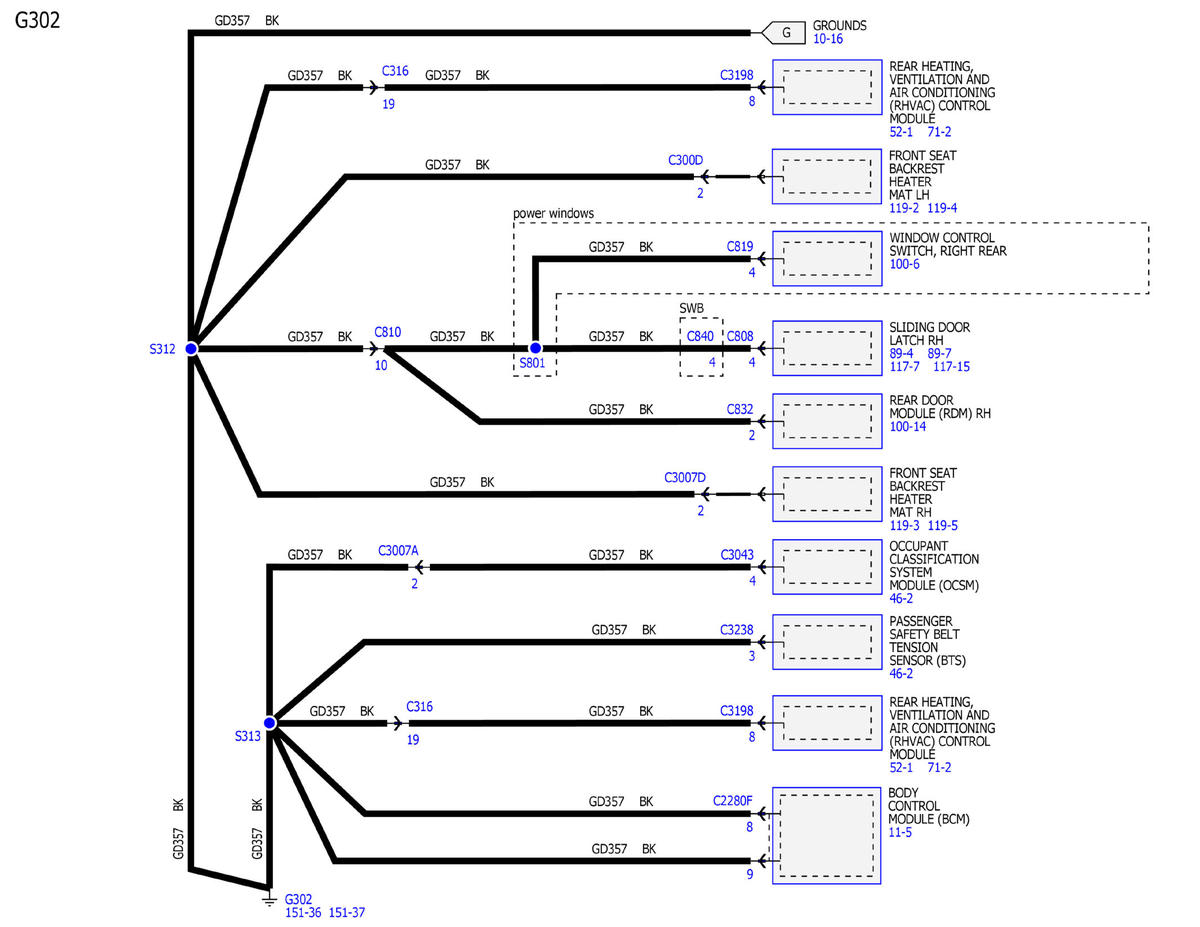

GFDWR130036Courtesy of FORD MOTOR COMPANY

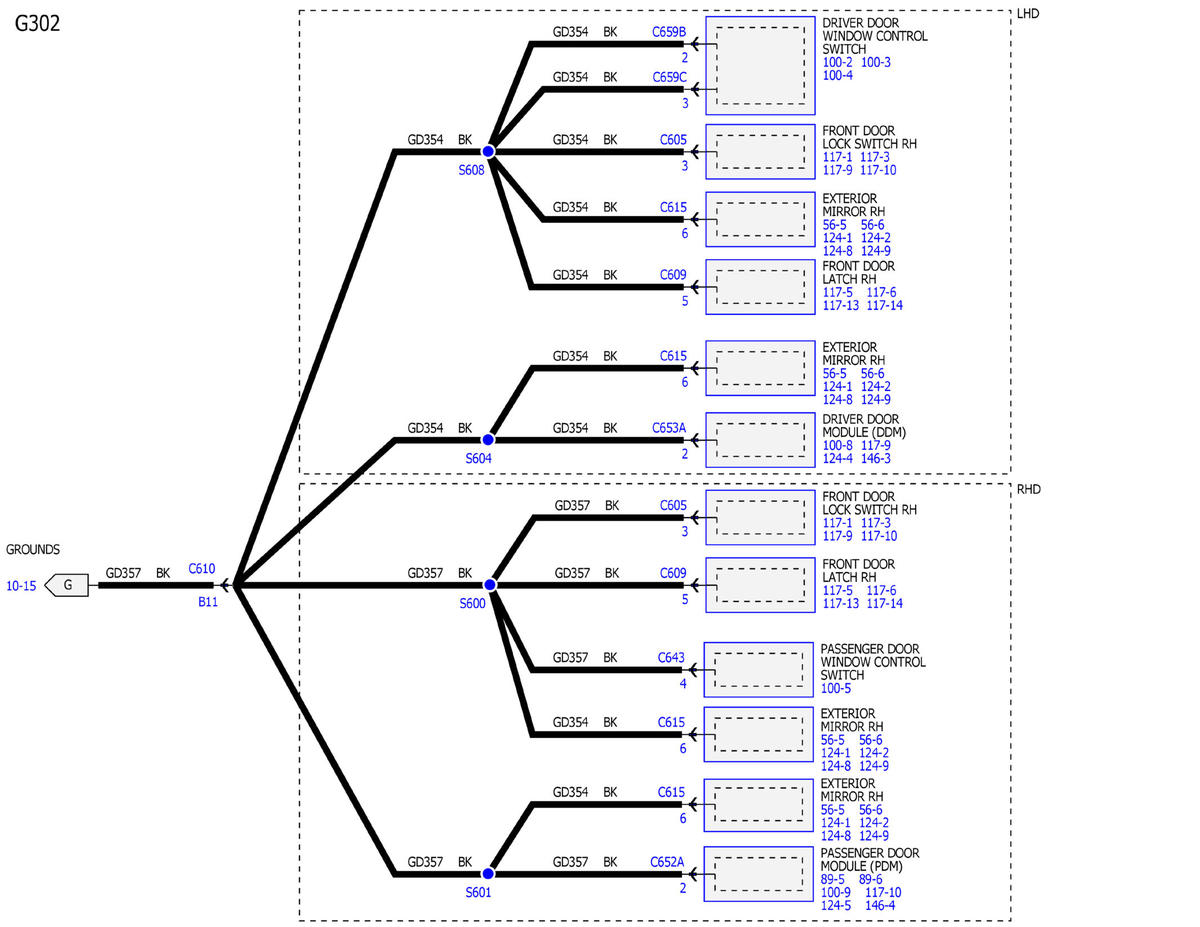

GFDWR130037Courtesy of FORD MOTOR COMPANY

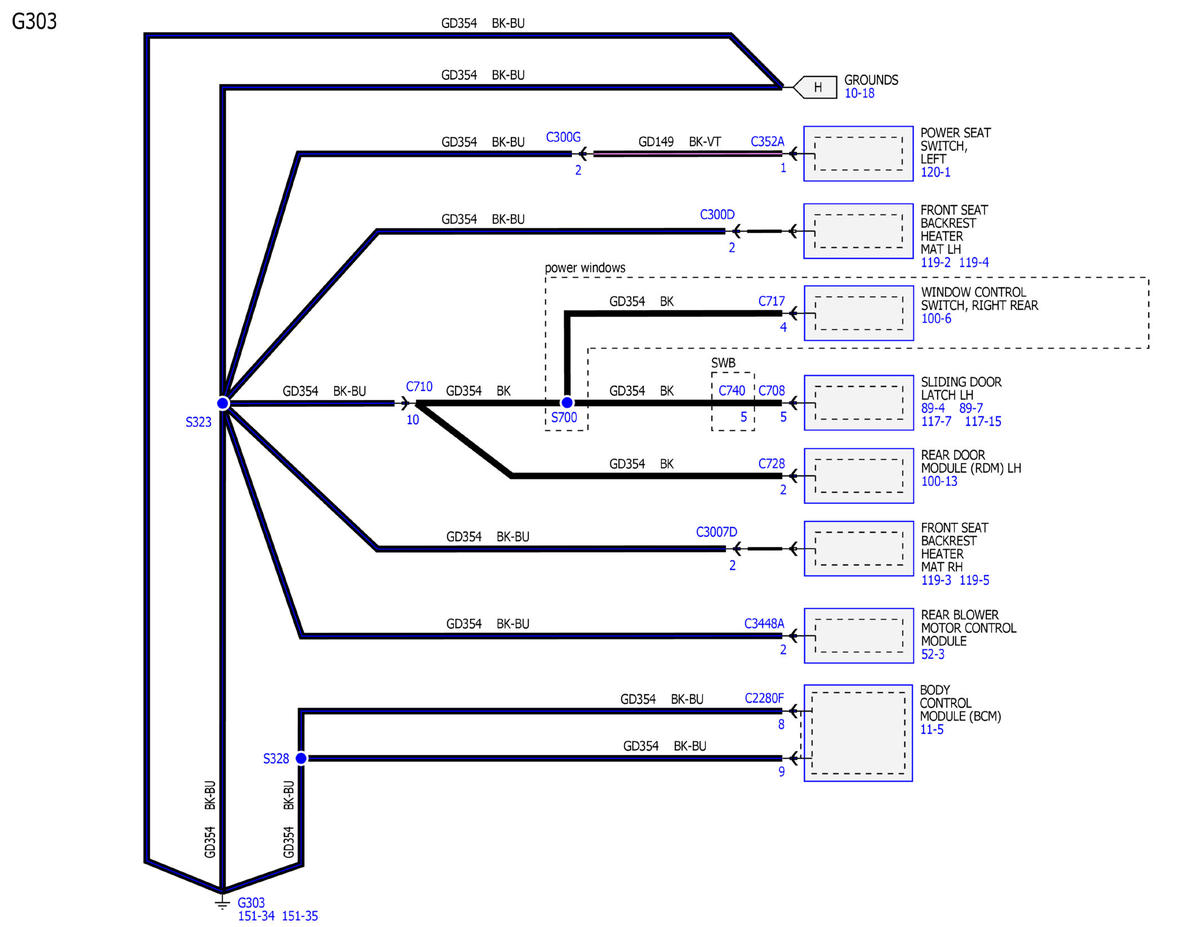

GFDWR130038Courtesy of FORD MOTOR COMPANY

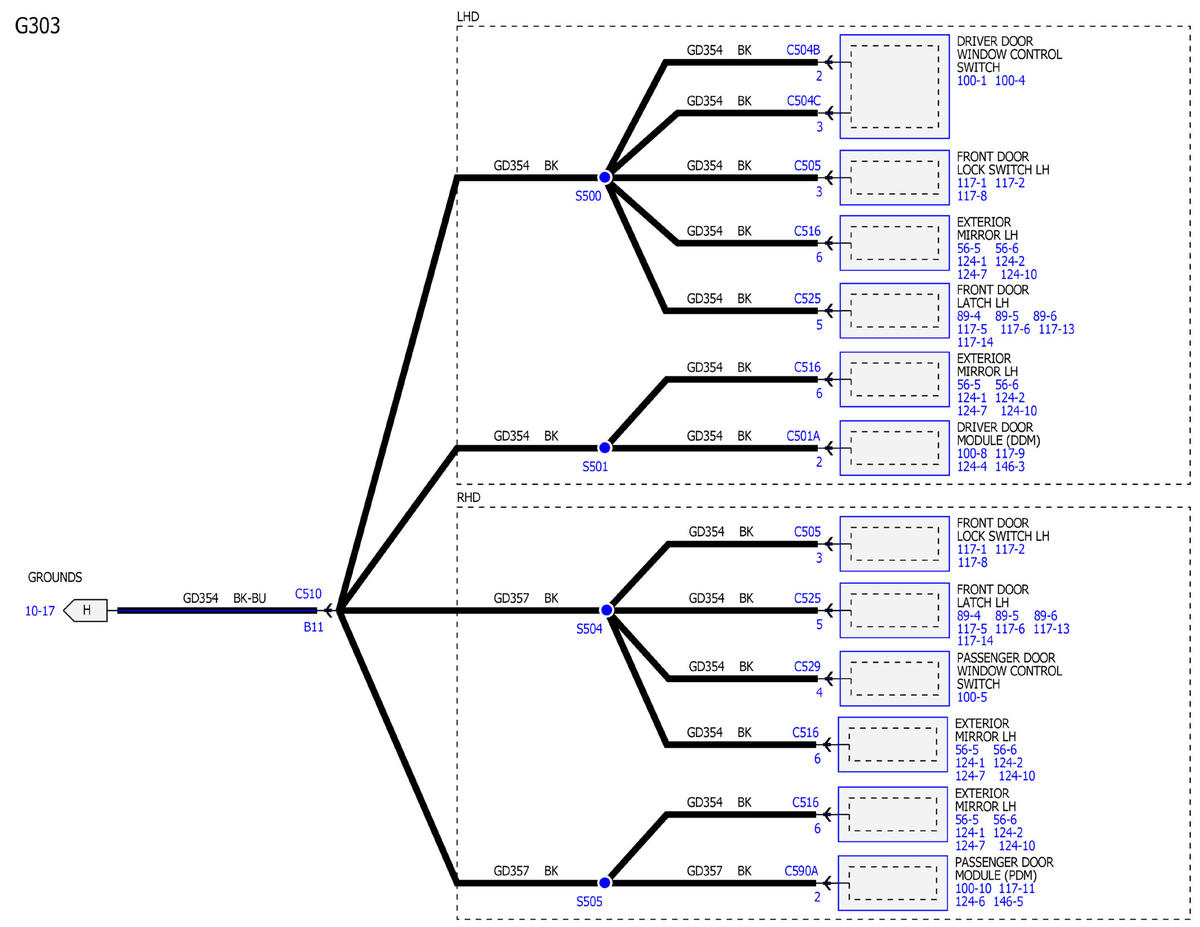

GFDWR130039Courtesy of FORD MOTOR COMPANY

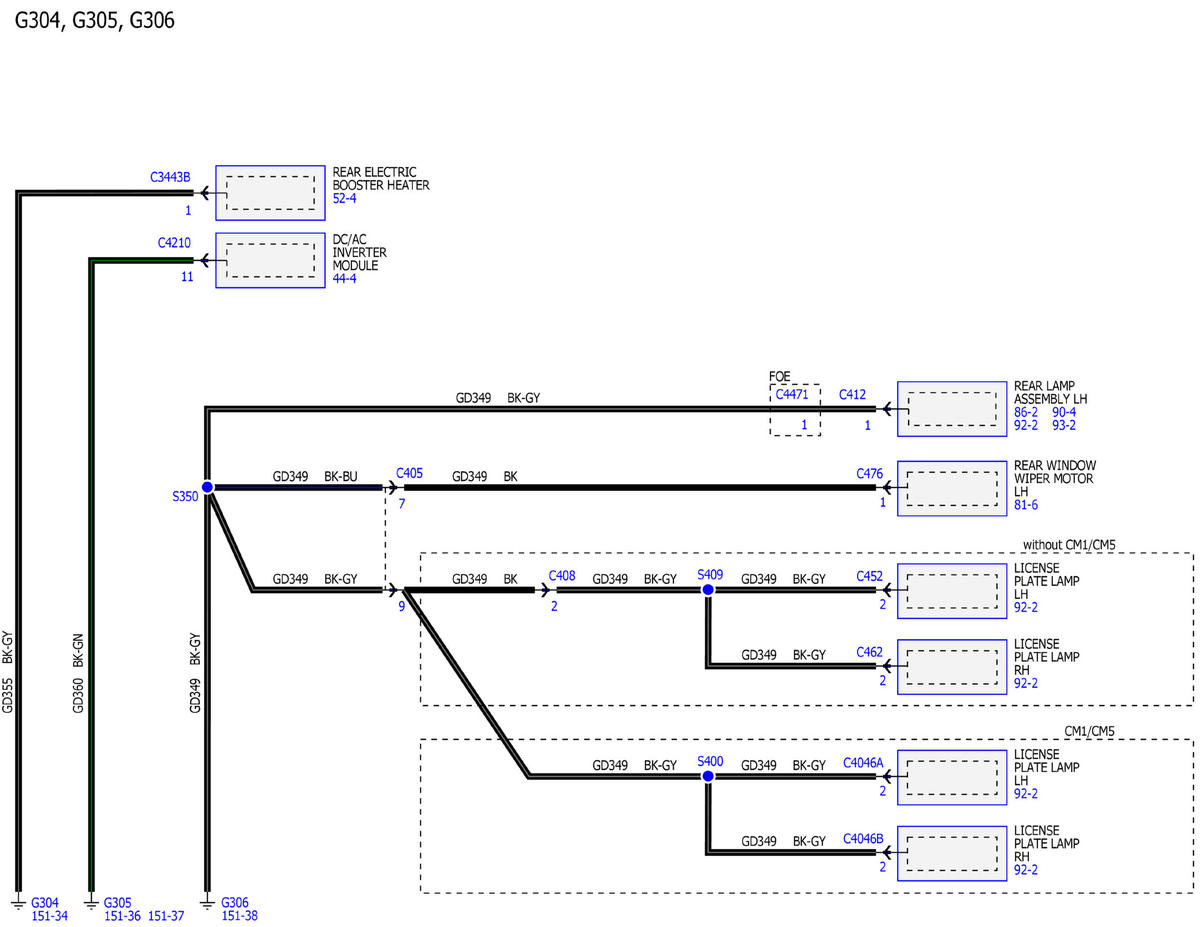

GFDWR130040Courtesy of FORD MOTOR COMPANY

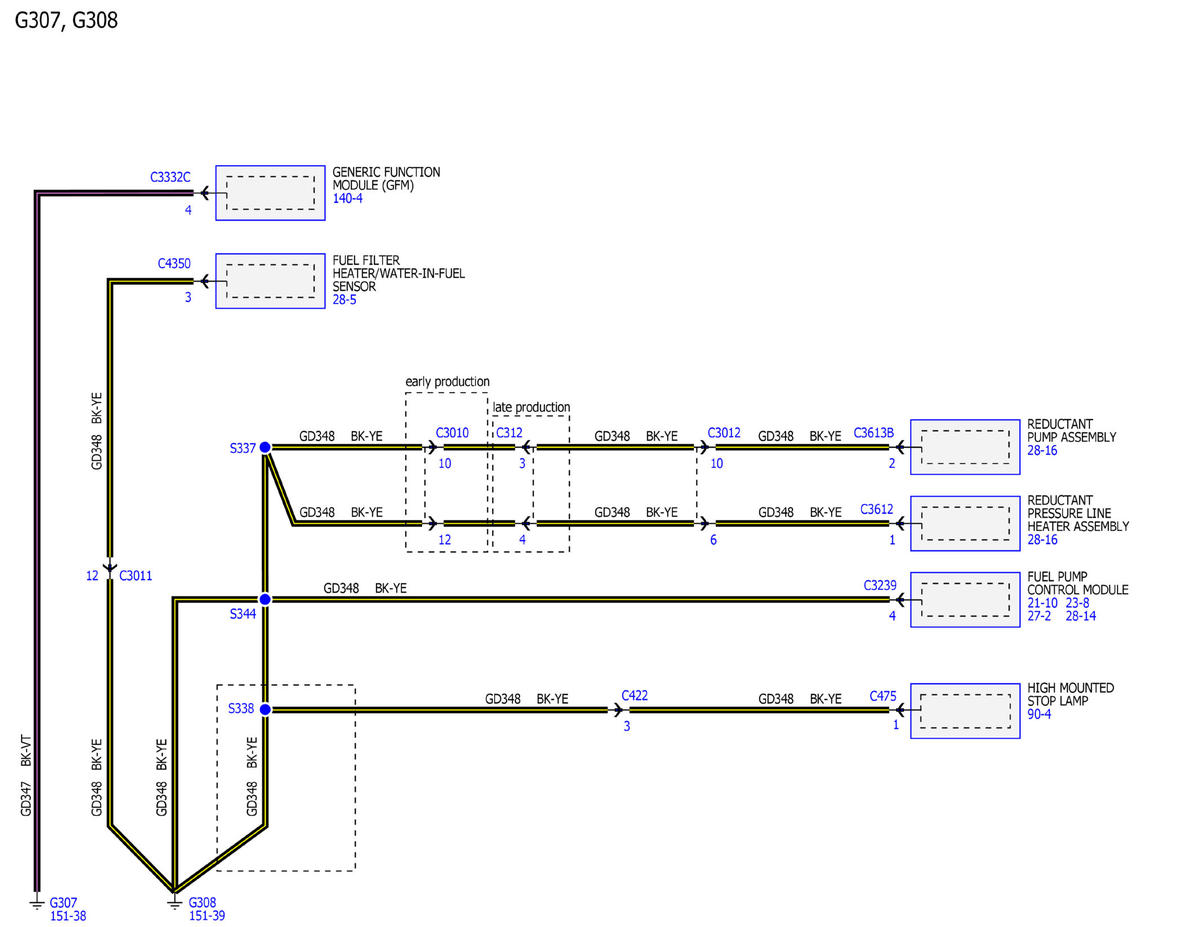

GFDWR130042Courtesy of FORD MOTOR COMPANY

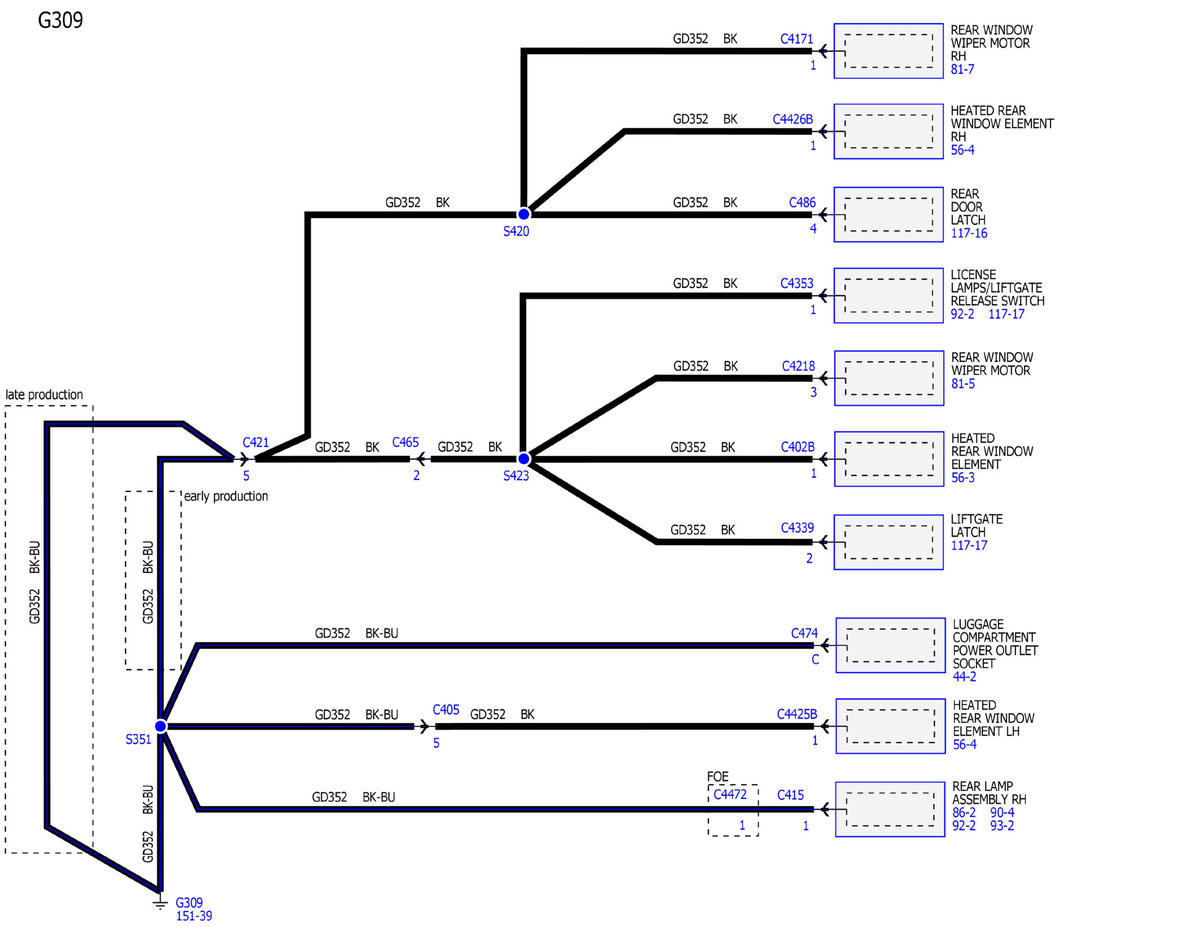

GFDWR130043Courtesy of FORD MOTOR COMPANY

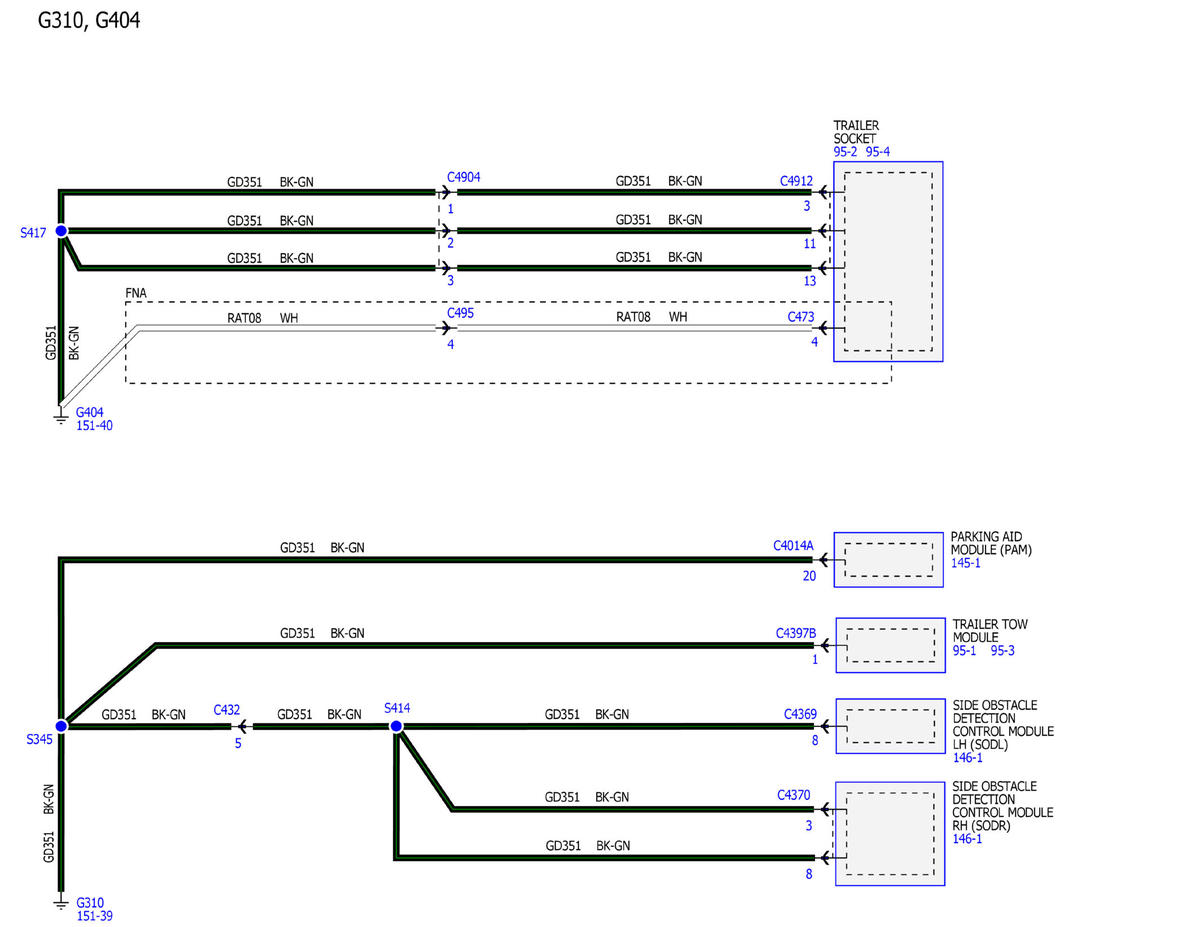

GFDWR130044Courtesy of FORD MOTOR COMPANY
