Selector Lever Cable: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the air cleaner. Refer to: Air Cleaner - 2.5L Duratec (125kW/170PS). Refer to: Air Cleaner - 2.0L Duratec-HE (110kW/150PS) - MI4.
8-Speed Automatic Transmission - 8F35

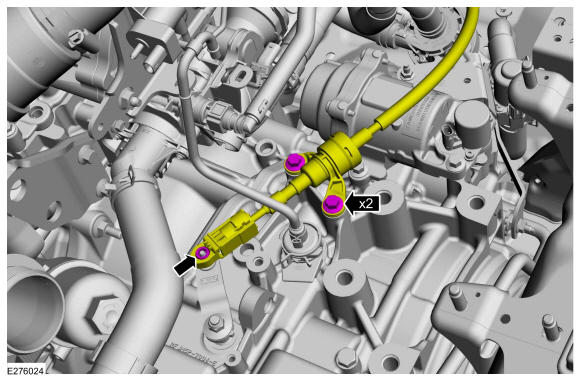

- Disconnect the selector lever cable from the transmission.
- Remove the selector lever cable bracket bolts and position aside the selector lever cable.
  Torque

  : 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

All vehicles

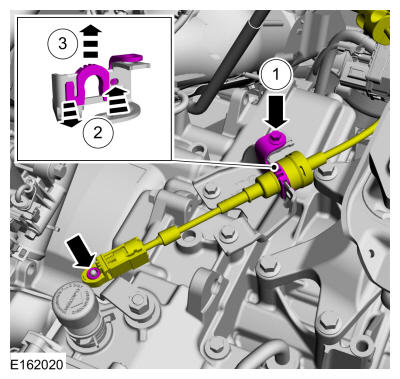

Disconnect the selector lever cable from the transmission.
1. Remove the selector lever cable bracket bolt.
  Torque

  : 62 lb.in (7 Nm)
2. Disengage the selector lever cable holding clip.
3. Disconnect the selector lever cable from the transmission manual lever.
Courtesy of FORD MOTOR COMPANY

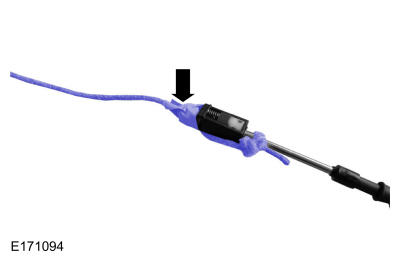

Attach a pull cord to the selector lever cable.
Use the General Equipment: Draw Cord

Use the General Equipment: Adhesive Tape

Courtesy of FORD MOTOR COMPANY
Remove the selector lever assembly. Refer to: Selector Lever Assembly .
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

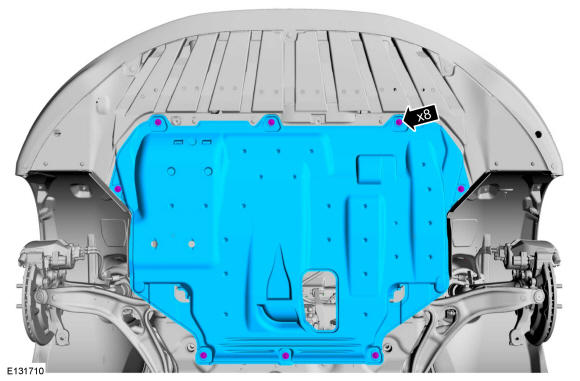

If equipped, remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

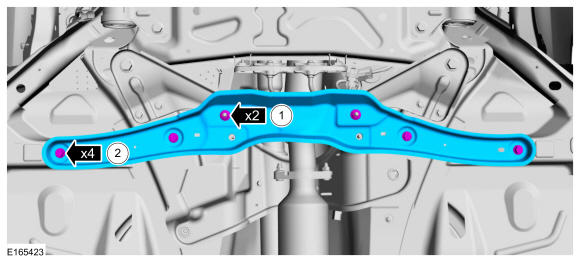

Remove the subframe support bracket.
1. Remove the nuts.
  Torque

  : 35 lb.ft (48 Nm)
2. Remove the bolts and the subframe support bracket.
  Torque

  : 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY

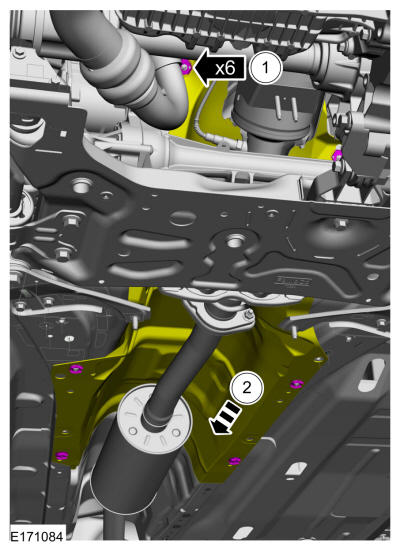

Remove the retainers and position the front floor exhaust system heat shield aside.

Courtesy of FORD MOTOR COMPANY

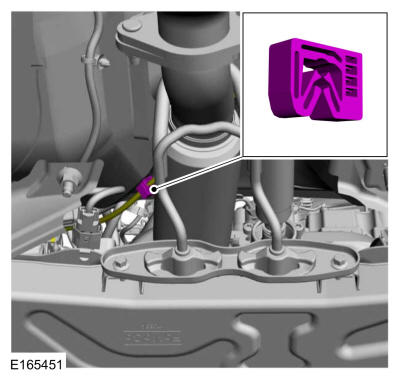

Disconnect the selector lever cable from the clip.

Courtesy of FORD MOTOR COMPANY

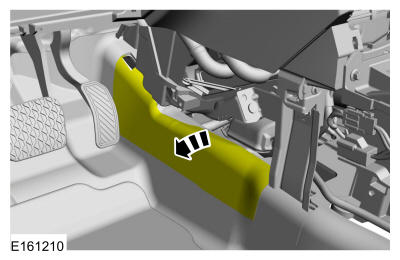

Separate the floor console LH side trim panel.

Courtesy of FORD MOTOR COMPANY

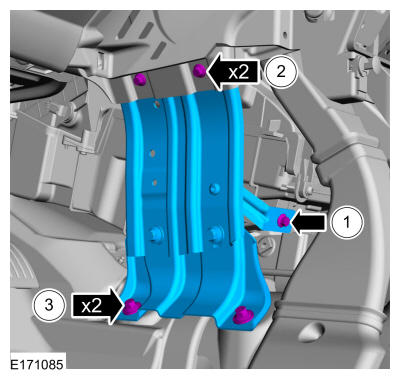

Remove the LH side console housing support bracket.
1. Remove the bolt.
  Torque

  : 80 lb.in (9 Nm)
2. Remove the bolts.
  Torque

  : 18 lb.ft (25 Nm)
3. Remove the bolts and the LH side console housing support bracket.
  Torque

  : 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Gearshift cables must not be kinked or bent.

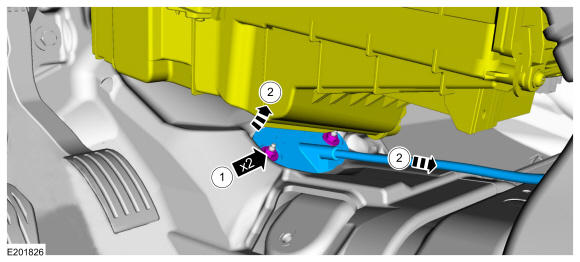

Remove the selector lever cable.
1. Remove the nuts.
  Torque

  : 97 lb.in (11 Nm)
2. NOTE: Take extra care not to damage the edges of the component.

  Lift the A/C evaporator and blower assembly and remove the selector lever cable.
- During installation, make sure cable mount fits flush to floor pan.

Courtesy of FORD MOTOR COMPANY
