Steering Column: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Depower the SRS Refer to: Supplemental Restraint System (SRS) Depowering .
-
NOTE: This step is only necessary when installing a new component.
Remove the SCCM Refer to: Steering Column Control Module (SCCM) .
- Remove the steering column shrouds. Refer to: Steering Column Shrouds .
-
NOTE: Make sure that the steering wheel does not rotate or damage to the clockspring may occur.

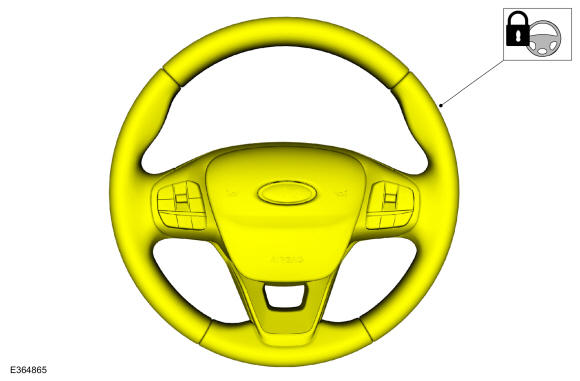

Secure the steering wheel.

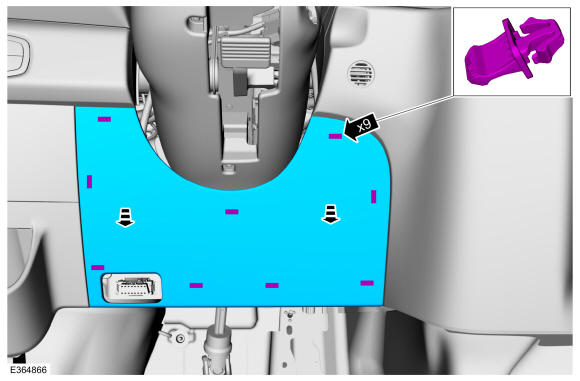

- Release the clips and remove the steering column opening trim panel.
-
WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).NOTE: The steering column is designed to absorb energy in a crash and must be handled carefully. The energy-absorbing steering column shaft cannot be subjected to force or impact shocks. Follow the removal procedure instructions carefully to avoid damage.

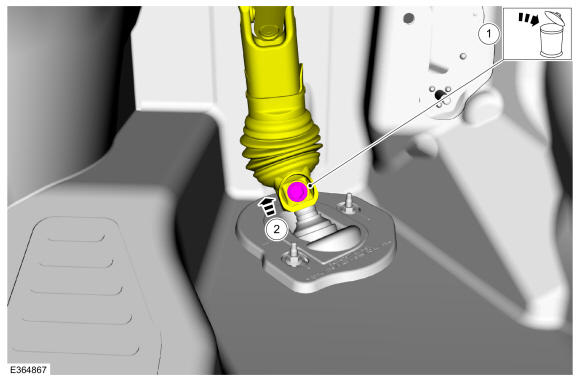

Disconnect the steering column shaft from the steering gear.
- Remove and discard the retainer.
Torque: 21 lb.ft (28 Nm)
- Disconnect the steering column shaft from the steering gear.
- Remove and discard the retainer.

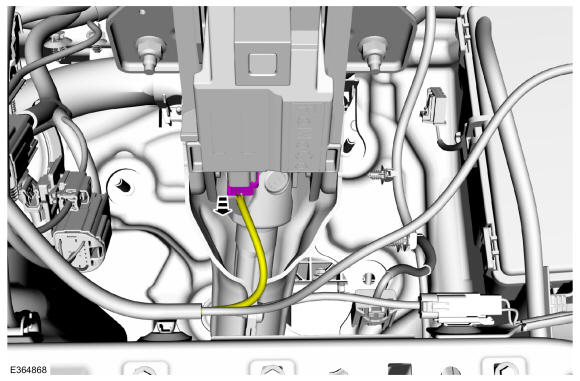

- Disconnect the steering column lock actuator electrical connector.

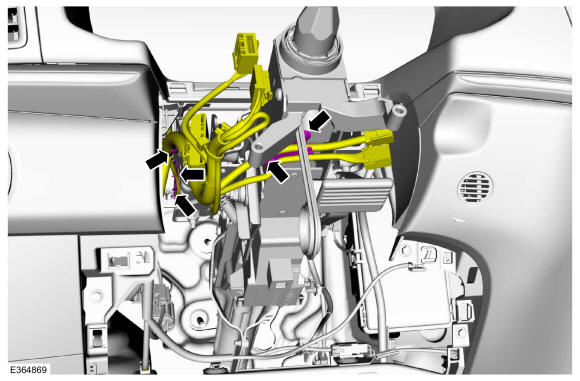

- Unclip and position aside the steering column wiring harness.
-
WARNING: Do not reuse steering column nuts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).NOTE: The steering column is designed to absorb energy in a crash and must be handled carefully. The energy-absorbing steering column shaft cannot be subjected to force or impact shocks. Follow the removal procedure instructions carefully to avoid damage.

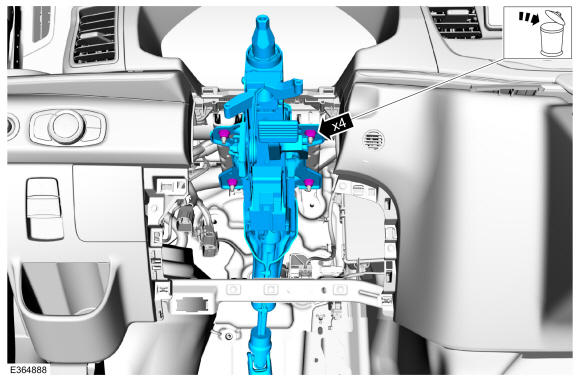

Remove and discard the retainers and remove the steering column.
Torque: 177 lb.in (20 Nm)
