External Controls - Component Location

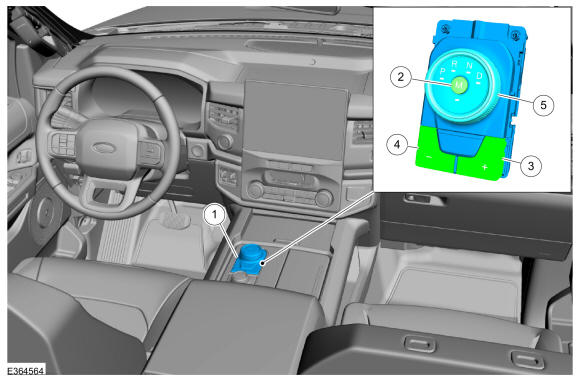

Rotary Gear Shift Knob

GFD702122Courtesy of FORD MOTOR COMPANY
Item Description
1 GSM
2 Manual (M) button
3 Upshift button
4 Downshift button
5 Gear range rotary dial

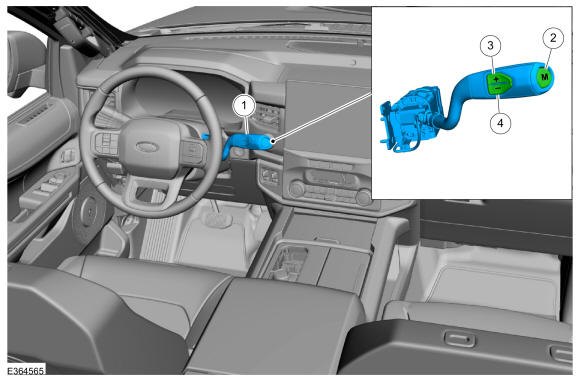

Column Shift Lever

GFD702123Courtesy of FORD MOTOR COMPANY
Item Description
1 GSM
2 Manual (M) button
3 Upshift button
4 Downshift button
