Electronic Engine Controls - Component Location
Electronic Engine Controls- Front
| Item | Description |
|---|---|
| 1 | CMP/Intake sensor |
| 2 | CMP Exhaust sensor |
| 3 | MAPT sensor |
| 4 | Variable Camshaft Timing VCT Oil Control Solenoid Exhaust |
| 5 | Variable Camshaft Timing VCT Oil Control Solenoid Intake |
| 6 | Turbocharger Boost Pressure Sensor |
| 7 | IAT sensor |
| 8 | CKP sensor |
| 9 | PCM |
| 10 | Turbocharger Bypass Valve |
| 11 | Crankcase pressure sensor |
| 12 | Cylinder Head Temperature 2 (CHT2) sensor |

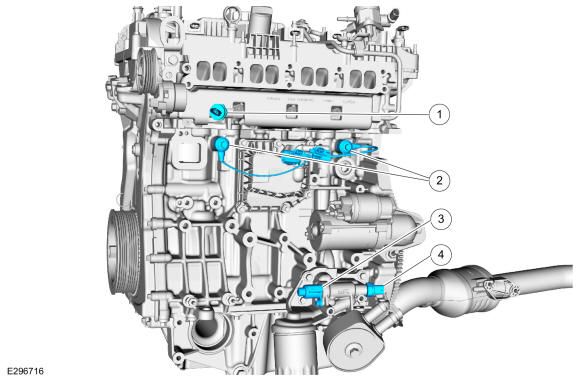

Electronic Engine Controls - LH side
| Item | Description |
|---|---|
| 1 | FRP sensor |
| 2 | KS sensors |
| 3 | Oil Pressure Control Solenoid |
| 4 | EOP sensor |

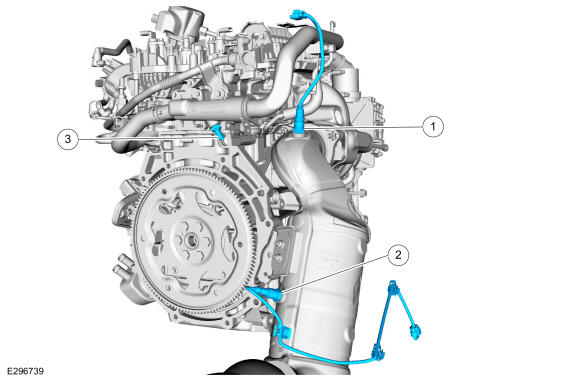

Electronic engine Controls - Rear of engine
| Item | Description |
|---|---|
| 1 | HO2S (HO2S) sensor |
| 2 | Catalyst Monitor sensor |
| 3 | ECT sensor |
Electronic engine Controls
| Item | Description |
|---|---|
| 1 | Fuel low pressure sensor |
