Steering Column Telescopic Motor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column. Refer to: Steering Column
  2. NOTE: Note the position of the component before removal.

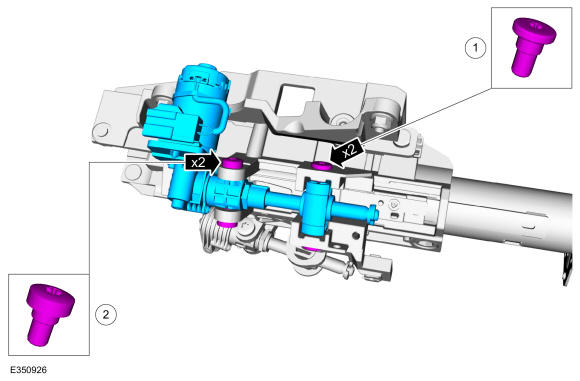

    Remove the telescopic motor.

    1. Remove the trunnion retainers.
    2. Remove the telescopic motor retainers and remove the telescopic motor.

GFD655507Courtesy of FORD MOTOR COMPANY
