Steering Column: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. NOTE: This step is only necessary when installing a new component.
    NOTE: Prior to the removal of the steering column lock module, it is necessary to upload the BCM configuration information to the scan tool. This information must be downloaded back into the same BCM after installation of a new steering column lock module in order to establish the correct configuration of the BCM into the new steering column lock module.

    Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.

  2. NOTE: This step is only necessary when installing a new component.
    NOTE: Prior to the removal of the SASM, it is necessary to upload the ABS configuration information to the scan tool. This information must be downloaded back into the same ABS after installation of the SASM in order to establish the correct configuration of the ABS into the SASM.

    Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.

  3. Remove the steering wheel. Refer to: Steering Wheel  .
  4. Remove the instrument panel. Refer to: Instrument Panel .

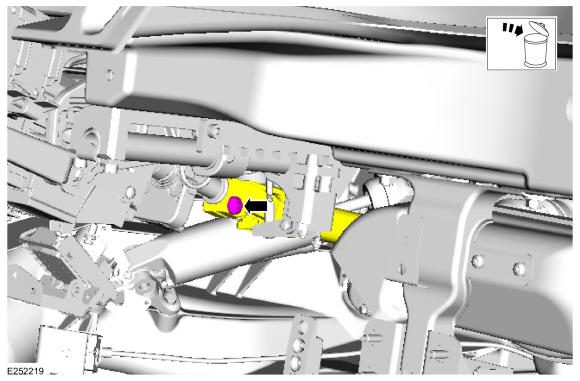

  5. NOTE: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard the bolt and disconnect the steering column shaft.

    Torque: 22 lb.ft (30 Nm)

    GFD344329Courtesy of FORD MOTOR COMPANY

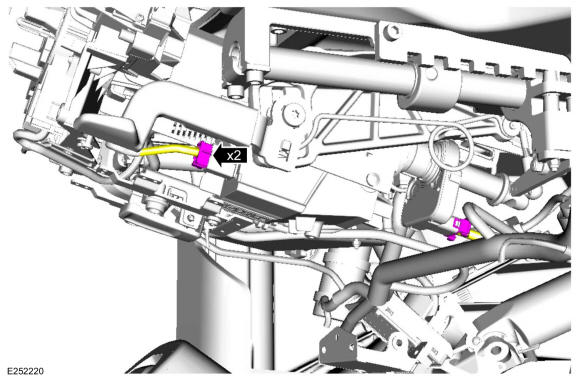

  6. Disconnect the electrical connectors.
    GFD344330Courtesy of FORD MOTOR COMPANY

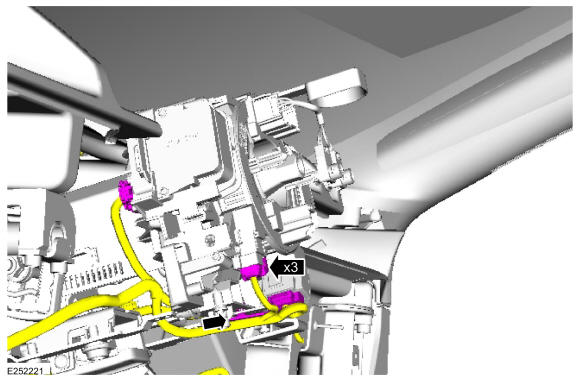

  7. Release the pin-type retainer and disconnect the electrical connectors.
    GFD344331Courtesy of FORD MOTOR COMPANY

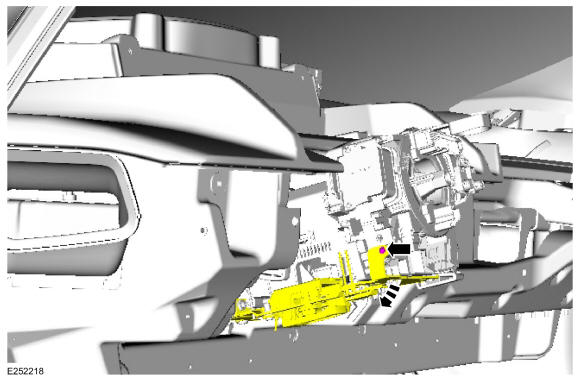

  8. Remove the screw and position the steering column lever bracket downward.
    GFD344332Courtesy of FORD MOTOR COMPANY

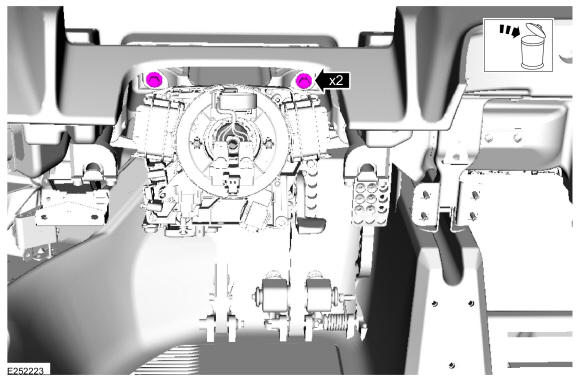

  9. NOTE: Do not reuse steering column bolts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard bolts.

    Torque: 93 lb.in (10.5 Nm)

    GFD344333Courtesy of FORD MOTOR COMPANY

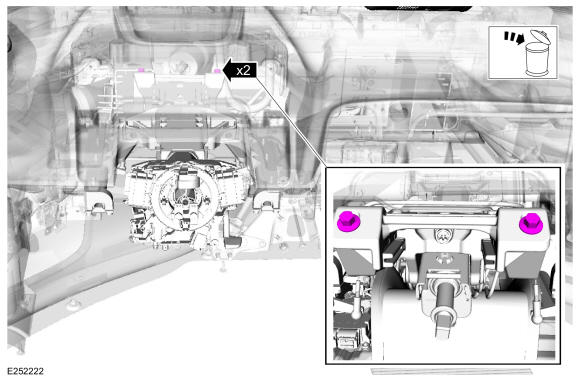

  10. NOTE: Do not reuse steering column bolts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard bolts.

    Torque: 93 lb.in (10.5 Nm)

    GFD344334Courtesy of FORD MOTOR COMPANY

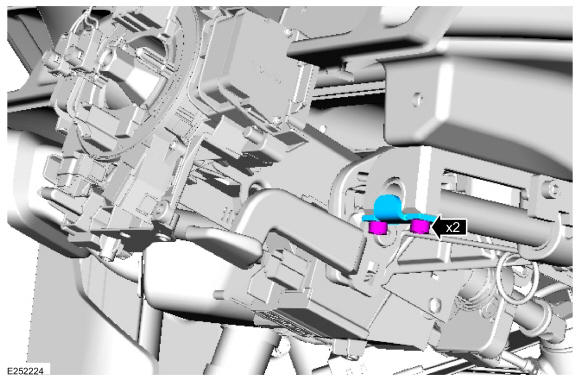

  11. Remove the bolts and the front RH steering column rail cap.

    Torque: 93 lb.in (10.5 Nm)

    GFD344335Courtesy of FORD MOTOR COMPANY

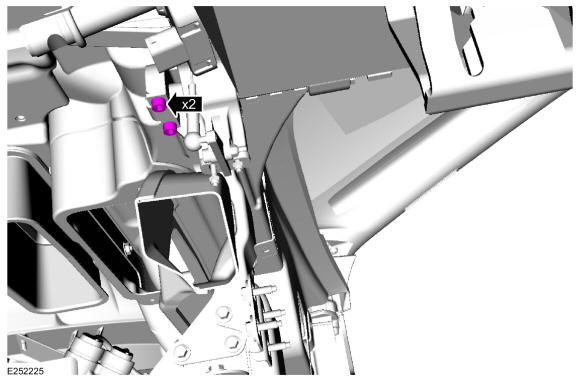

  12. Loosen the rear RH steering column rail cap bolts.

    Torque: 93 lb.in (10.5 Nm)

    GFD344336Courtesy of FORD MOTOR COMPANY

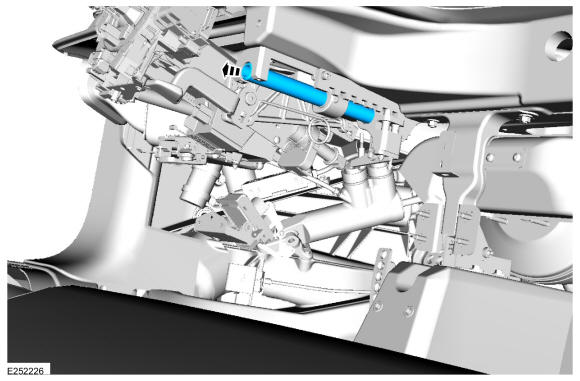

  13. Remove the RH pivot pin.
    GFD344337Courtesy of FORD MOTOR COMPANY

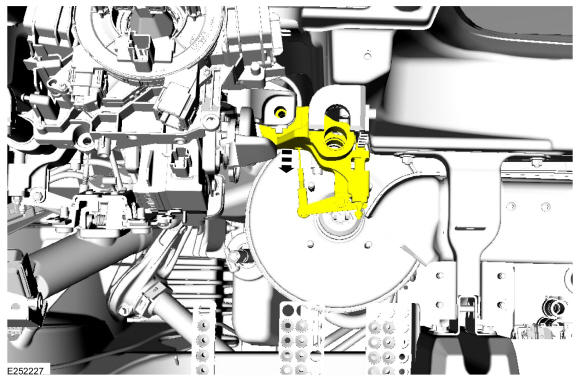

  14. NOTE: Support the steering column when positioning the steering column cable assembly mount.

    Position the RH steering column cable assembly mount downward.

    GFD344338Courtesy of FORD MOTOR COMPANY

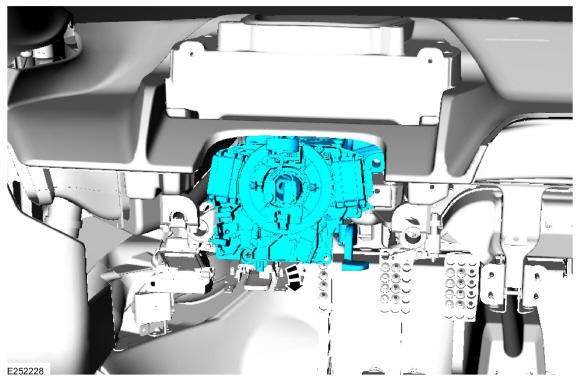

  15. Remove the steering column.
    GFD344339Courtesy of FORD MOTOR COMPANY

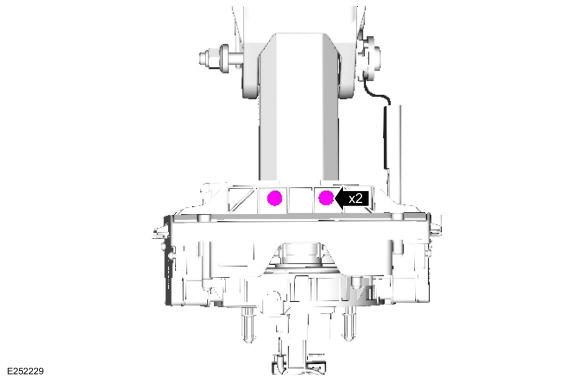

  16. NOTE: This step is only necessary when installing a new component.

    Remove the screws.

    GFD344340Courtesy of FORD MOTOR COMPANY

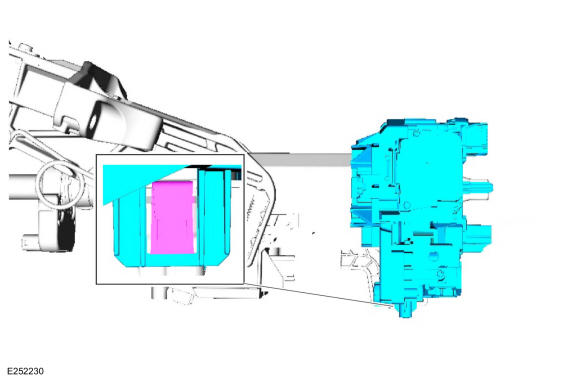

  17. NOTE: This step is only necessary when installing a new component.

    Release the tab and remove the SCCM.

    GFD344341Courtesy of FORD MOTOR COMPANY

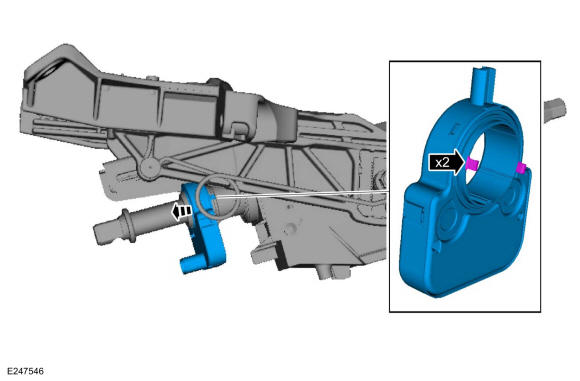

  18. NOTE: This step is only necessary when installing a new component.

    Release the tabs and remove the SASM.

GFD344342Courtesy of FORD MOTOR COMPANY
