Piston Selection
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Check
NOTE:
Refer to the appropriate article in the Engine system repair information
for the specifications.
-
NOTE: The cylinder bore must be within the specifications for taper and out-of-round before fitting a piston.

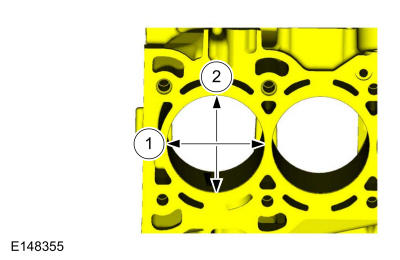

- Measure the cylinder bore in 2 directions.
- Select a piston size based on the cylinder bore.
-
NOTE: For precision fit, new pistons are divided into 3 categories within each size range based on their relative position within the range. A paint spot or specific size grade on a new piston indicates the position within the size range.
Choose the piston with the correct paint color or specific size grade.
