Valve Stem Diameter
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Check
NOTE:
Refer to the appropriate article in the Engine system repair information
for the specification.

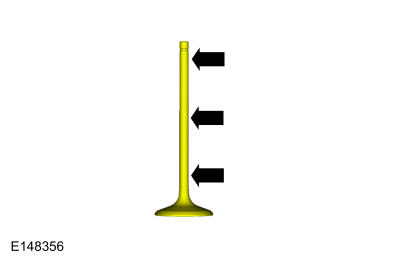

- Measure the diameter of each intake and exhaust valve stem at the points shown. Verify the diameter is within specification.
