VIN Locator

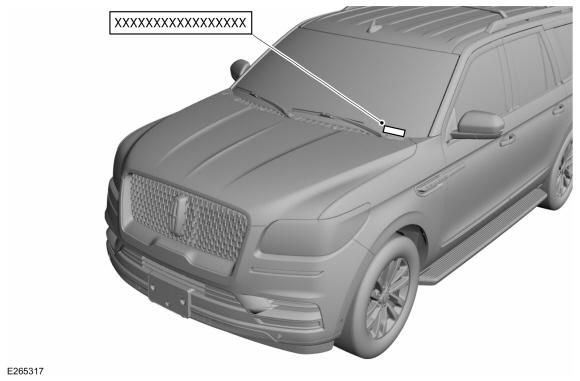

The VIN is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN is also found on the VC label. If the VIN plate requires replacement, authorized dealers must contact their respective regional office.

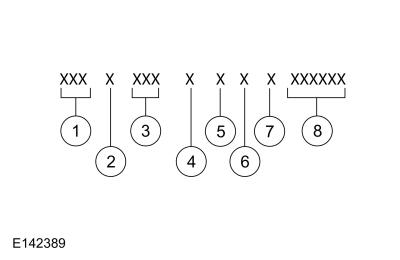

| Item | Description |
|---|---|
| 1 | WMI (World Manufacturer Identifier) |
| 2 | Restraint-type and GVWcode |
| 3 | Vehicle line, series, body-type code |
| 4 | Engine-type code |
| 5 | Computer-generated check digit |
| 6 | Model year code |
| 7 | Assembly plant code |
| 8 | Production sequence number |
World Manufacturer Identifier
The first 3 VIN positions are the WMI (World Manufacturer Identifier).
- 5LM - Lincoln, USA, MPV (Multi-Purpose Vehicle)
Restraint Type
The fourth VIN position is the vehicle restraint and GVW code.
- J - 7, 001-8, 000 lb GVW, active safety belts (all positions), driver and front passenger air bags and side impact inflatable restraints (1st, 2nd and 3rd row)
Vehicle Line, Series and Body Type
Positions 5 through 7 indicate vehicle line, series and body type.
- J2K - Navigator, Reserve, RWD
- J2L - Navigator, Reserve, 4WD
- J2M - Navigator, RWD
- J2N - Navigator, 4WD
- J2R - Navigator, Preferred, 4WD
- J2S - Navigator, Presidential, 4WD
- J2T - Navigator, Black Label, 4WD
- J3K - Navigator L, Reserve, RWD
- J3L - Navigator L, Reserve, 4WD
- J3M - Navigator L, RWD
- J3N - Navigator L, 4WD
- J3S - Navigator L, Presidential, 4WD
- J3T - Navigator L, Black Label, 4WD
Engine Type
The eighth VIN position identifies the engine type, displacement and number of cylinders.
- T - 3.5L, V6, GTDI (gasoline turbocharged direct injection), electronic fuel injection
Check Digit
The ninth VIN position is a government-assigned, computer-generated check digit.
- 0 - 9
Model Year
The tenth VIN position is the model year code.
- N - 2022
Assembly Plant
The eleventh VIN position is the assembly plant code.
- E - Kentucky Truck (Jefferson County, Kentucky)
Production Sequence Number
The last 6 VIN positions are a numeric code for the vehicle build sequence. This is also the vehicle serial and warranty number. The serial number can also be found on the engine block, transmission and frame.
- A00001 - G99999
