Accelerator Pedal: Removal

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: To prevent setting Diagnostic Trouble Codes (DTCs), make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connector.

NOTE: Vehicles with adjustable pedals, position the driver's seat to the full rearward position and, if possible, adjust the pedals to the full forward position.

Vehicles equipped with adjustable pedals

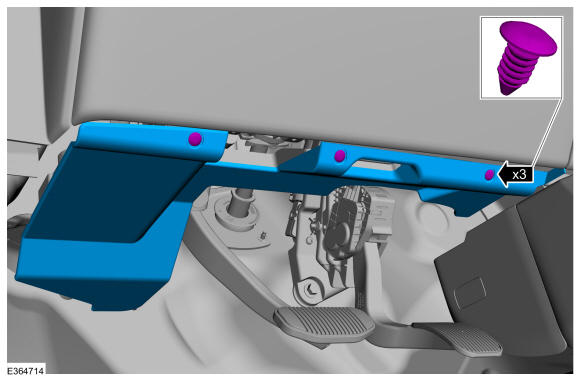

Detach the trim pin and remove the lower cover.

Courtesy of FORD MOTOR COMPANY

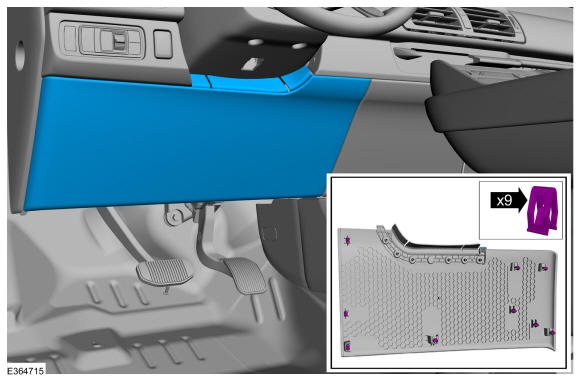

Release the clips and remove the lower steering column trim panel.

Courtesy of FORD MOTOR COMPANY

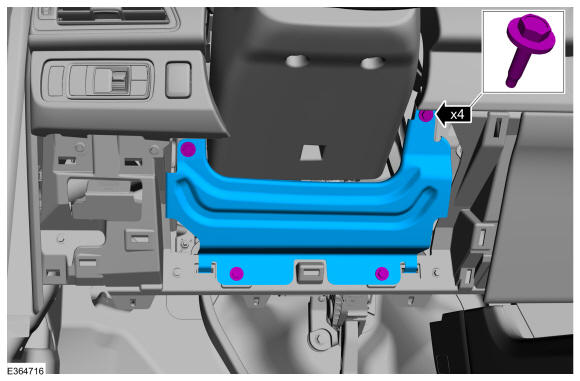

Release the bolts and the steering column opening reinforcement panel.
Torque: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY
Carry out the adjustable pedal indexing procedure. Refer to: Adjustable Pedal Indexing .

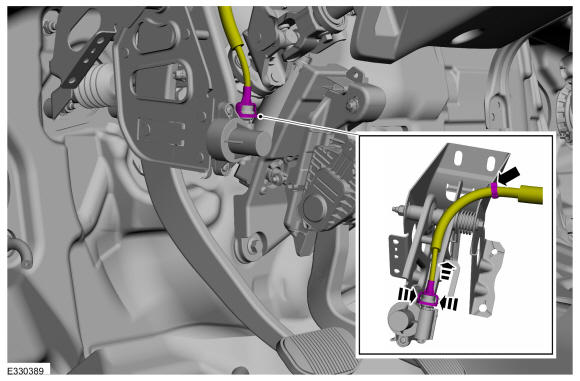

Disconnect the adjustable pedal motor drive cable from the adjustable brake pedal drive.

Courtesy of FORD MOTOR COMPANY

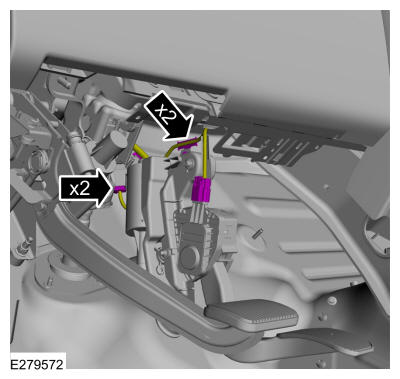

- Disconnect the 2 accelerator pedal electrical connectors.
- Remove the wiring harness clips.
Courtesy of FORD MOTOR COMPANY

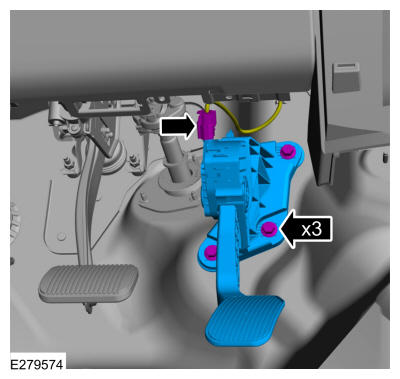

- Remove the 3 bolts and the accelerator pedal assembly.
  Torque: 155 lb.in (17.5 Nm)
Courtesy of FORD MOTOR COMPANY

Accelerator Pedal -- Fixed
Disconnect the accelerator pedal sensor electrical connector.
Remove the bolts and the accelerator pedal assembly.
Torque: 155 lb.in (17.5 Nm)

Courtesy of FORD MOTOR COMPANY
