VC Codes

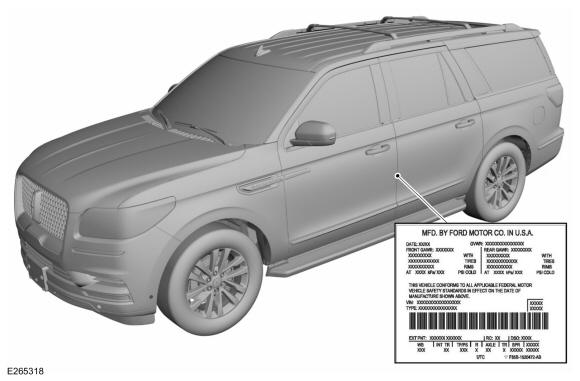

VC Label Locator

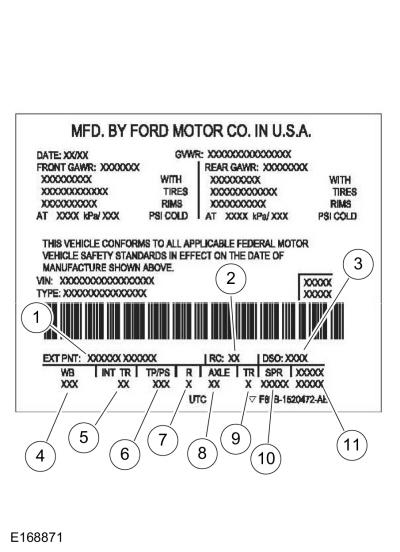

The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes GVW and tire information. If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.
| Item | Description |
|---|---|
| 1 | Exterior paint code |
| 2 | Region code |
| 3 | DSO (District Special Order) code |
| 4 | Wheelbase code |
| 5 | Interior trim code |
| 6 | Tape/paint stripe code |
| 7 | Radio code |
| 8 | Axle code |
| 9 | Transmission code |
| 10 | Spring code |
| 11 | Powertrain calibration information |
Paint Codes
Paint codes are listed as a 2-part code. The first set of numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color. All paint codes are a base/clear coat finish.
Primary Body Color
- AB - Ocean Drive Blue
- AZ - Star White/Prestine White (Tri-Coat)
- C8 - Fight Blue
- EB - Chroma Crystal Blue
- FU - Manhattan Green
- GS - Ceramic Pearl Metallic Tri-Coat
- HY - Dark Matter/Starlight Gray
- JS - Iconic Silver/Silver Radiance
- UM - Infinite Black
- XF - Chroma Cavier Dark Grey Metallic
Wheelbase Codes
The following identifies the vehicle wheelbase:
- 123 - 3, 112 mm (122.5 in) wheelbase
- 132 - 3, 342 mm (131.6 in) wheelbase
Interior Trim Codes
Interior trim codes are listed as a 2-part code. The first digit listed indicates the seat type and fabric style. The second digit indicates the interior trim color.
Interior Trim Type
- B - Leather with Lincoln Star perf
- C - Luxury Micro Perforated leather 2
- E - Perforated leather 2 low back bucket seats
- F - Leather with Diamond perforated
- G - V/L Vinyl w/Micro perforated Venetian leather
- P - Luxury perforated leather 40/40 low back bucket seats
- V - Luxury Micro Perforated leather 1
Interior Trim Color Codes
- 2 - Black Onyx/Russet
- B - Green
- F - Cashmere
- N - Sandstone
- R - Blue
- W - Black Onyx
Tape/Paint Stripe Codes
Tape and paint stripe codes do not apply.
Radio Codes
The following lists available radio codes:
- 7 - AM/ FM stereo, Digital A2B (Automobile Audio Bus)
- F - Branded AM/ FM stereo, HD (High-Definition), SDARS (Satellite Digital Audio Receiver System), Digital A2B (Automobile Audio Bus)
Axle Type
The following lists the available axle ratios and associated codes:
- 3L - 3.73 ratio, electronic limited slip
Transmission Codes
Available transmissions are as follows:
- U - 10-speed automatic (10R80)
Spring Codes
Spring codes are listed as a 2-part code. The first 2 characters identify the RH and LH front springs. The third and fourth characters identify the RH and LH rear springs.
Front Springs
- AA - 5L14-3C098-AB
- BB - 5L14-3C098-BB
- CC - 3L1J-18B036-AA
- DD - 5L74-3C098-AC
- FF - 3L14-18B036-BA
- HH - 3L14-18B036-DA
Rear Springs
- 11 - 4L14-18W002-AA
- 33 - 5L14-5A965-BB
- 44 - 5L14-5A965-AB
- 55 - 4L1J-18W002-AA
- 66 - 5L74-5A965-AB
