Connector Repair Procedures

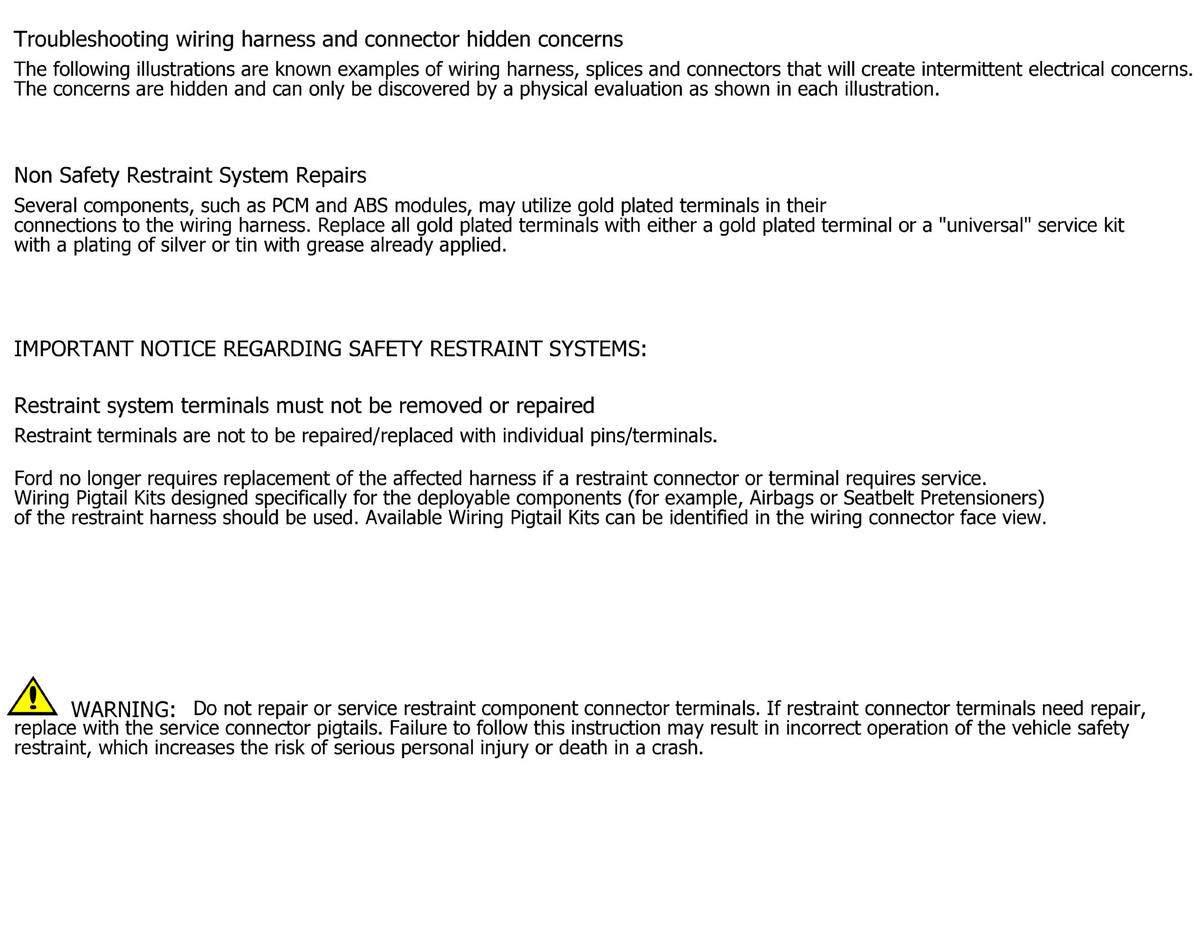

GFDWR163554Courtesy of FORD MOTOR COMPANY
GFDWR163555Courtesy of FORD MOTOR COMPANY

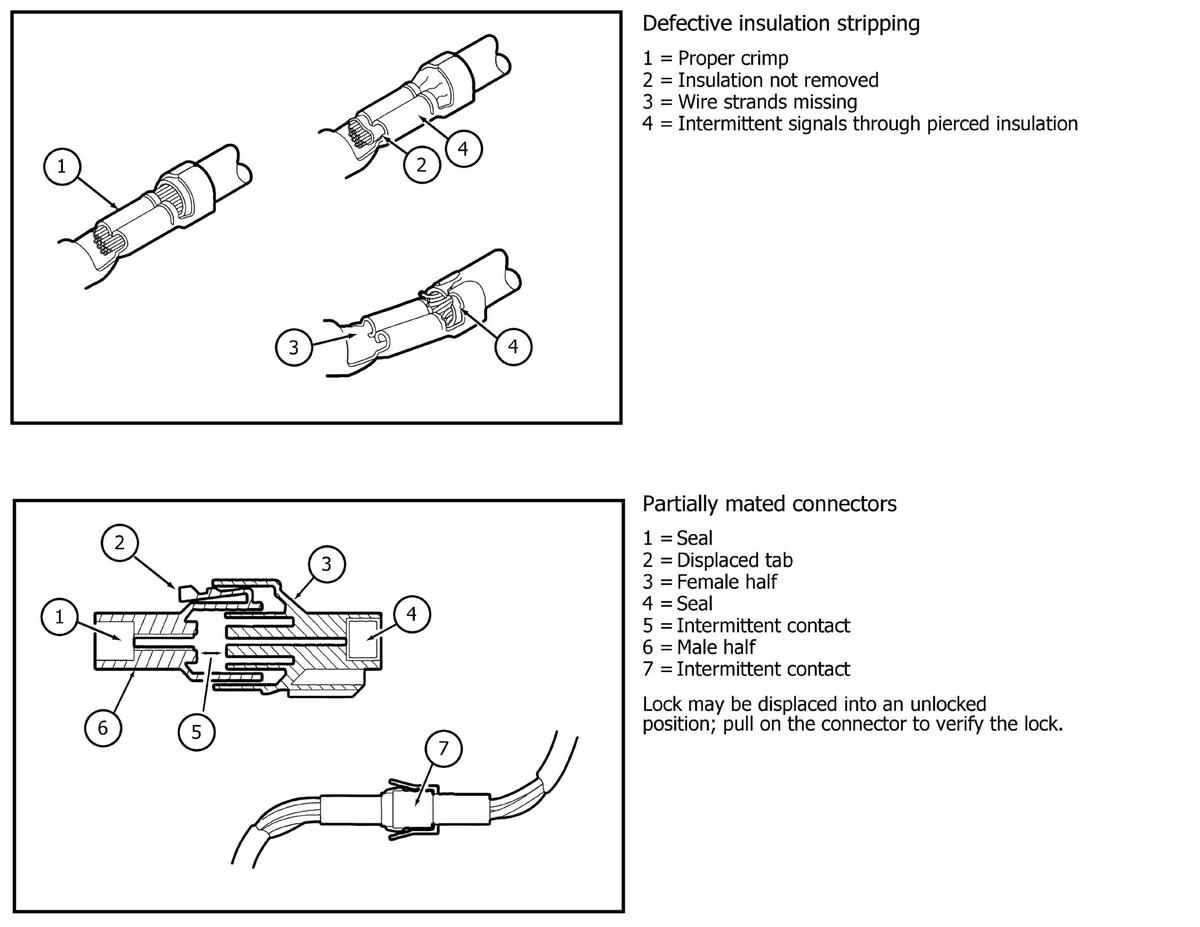

GFDWR163556Courtesy of FORD MOTOR COMPANY

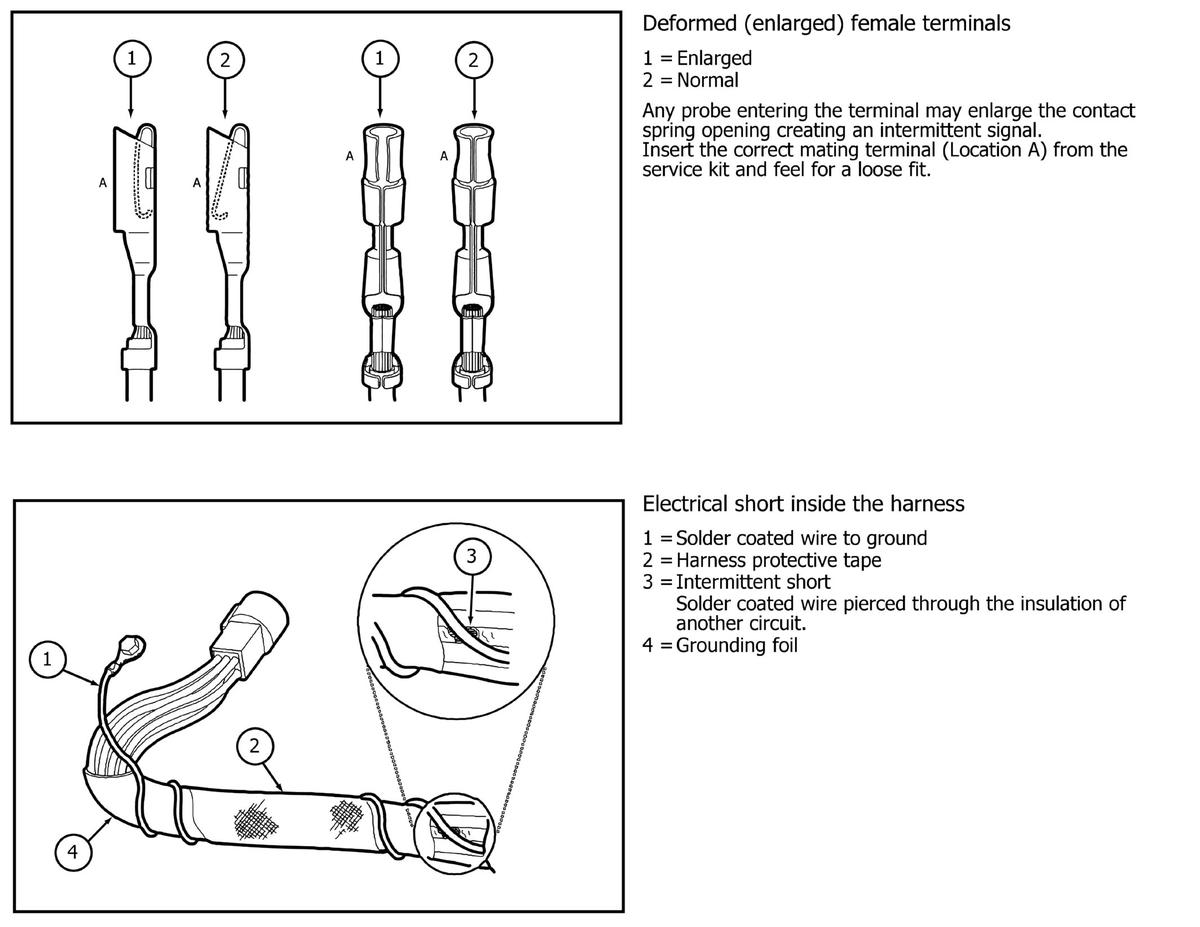

GFDWR163557Courtesy of FORD MOTOR COMPANY

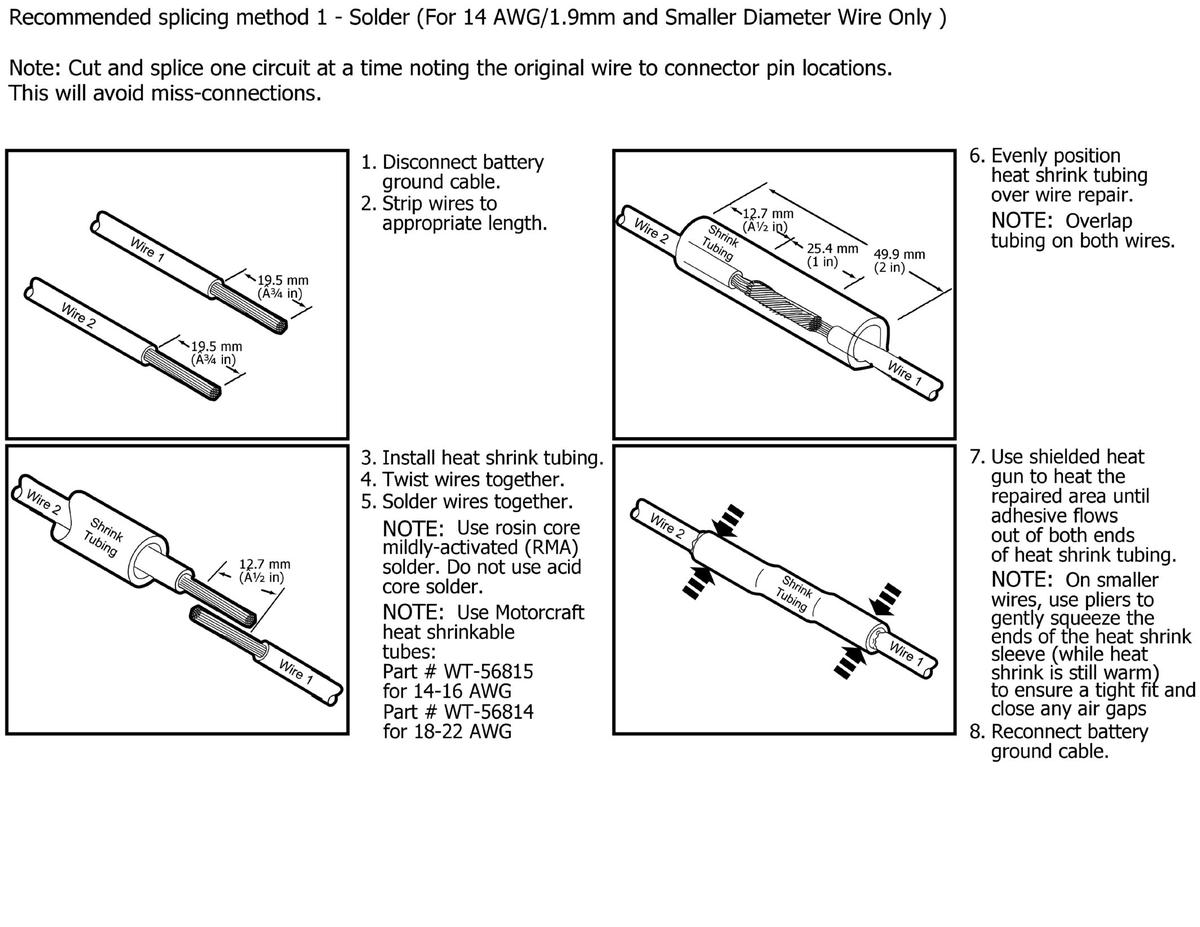

GFDWR163558Courtesy of FORD MOTOR COMPANY

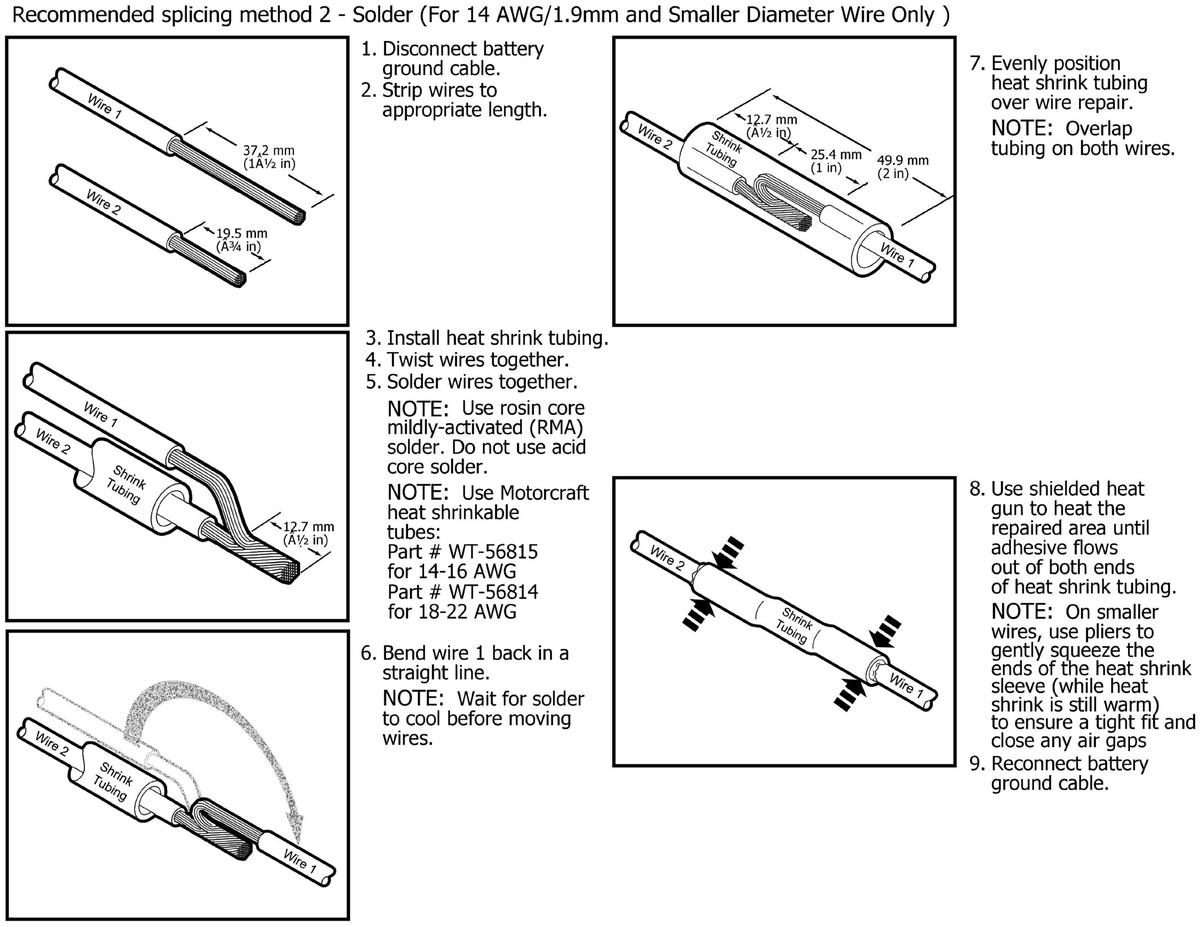

GFDWR163559Courtesy of FORD MOTOR COMPANY

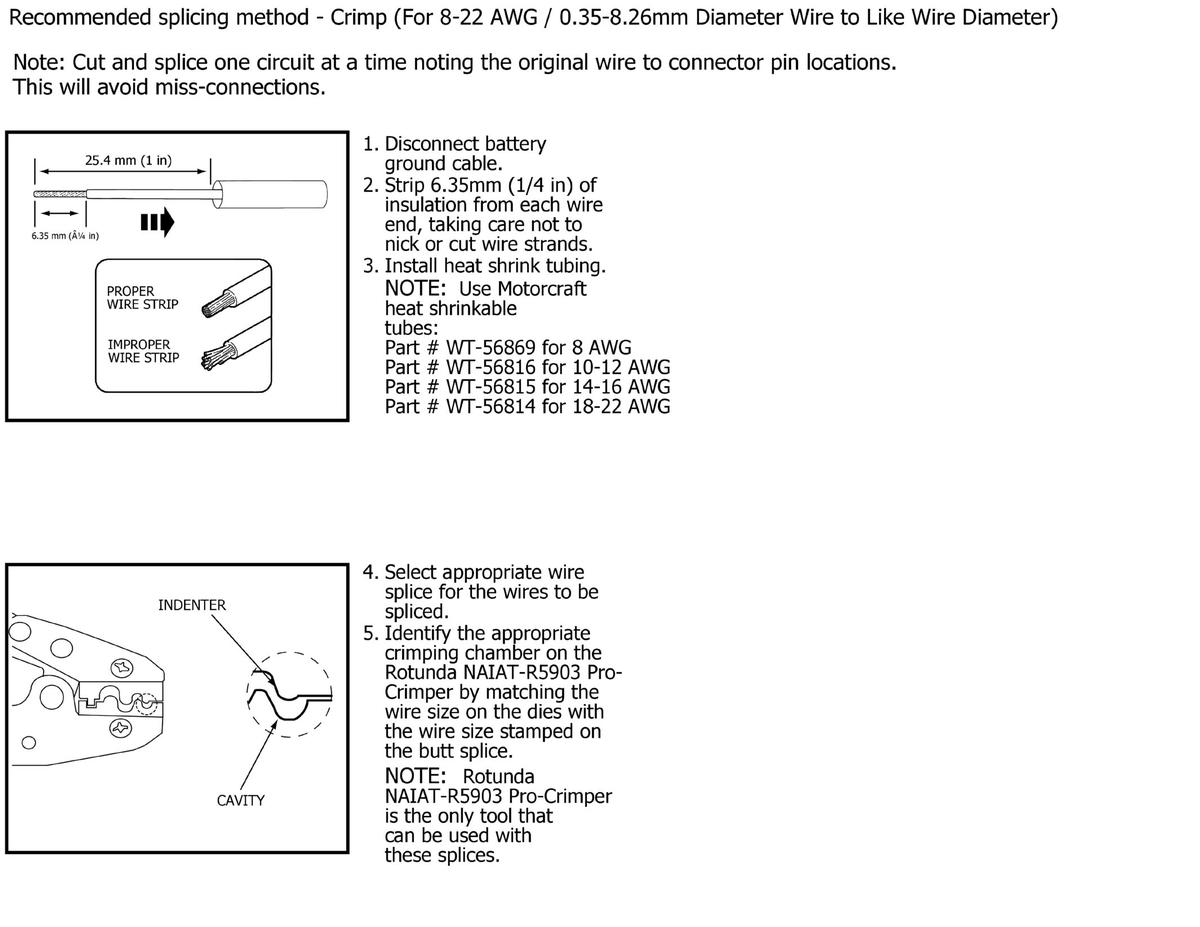

GFDWR163560Courtesy of FORD MOTOR COMPANY

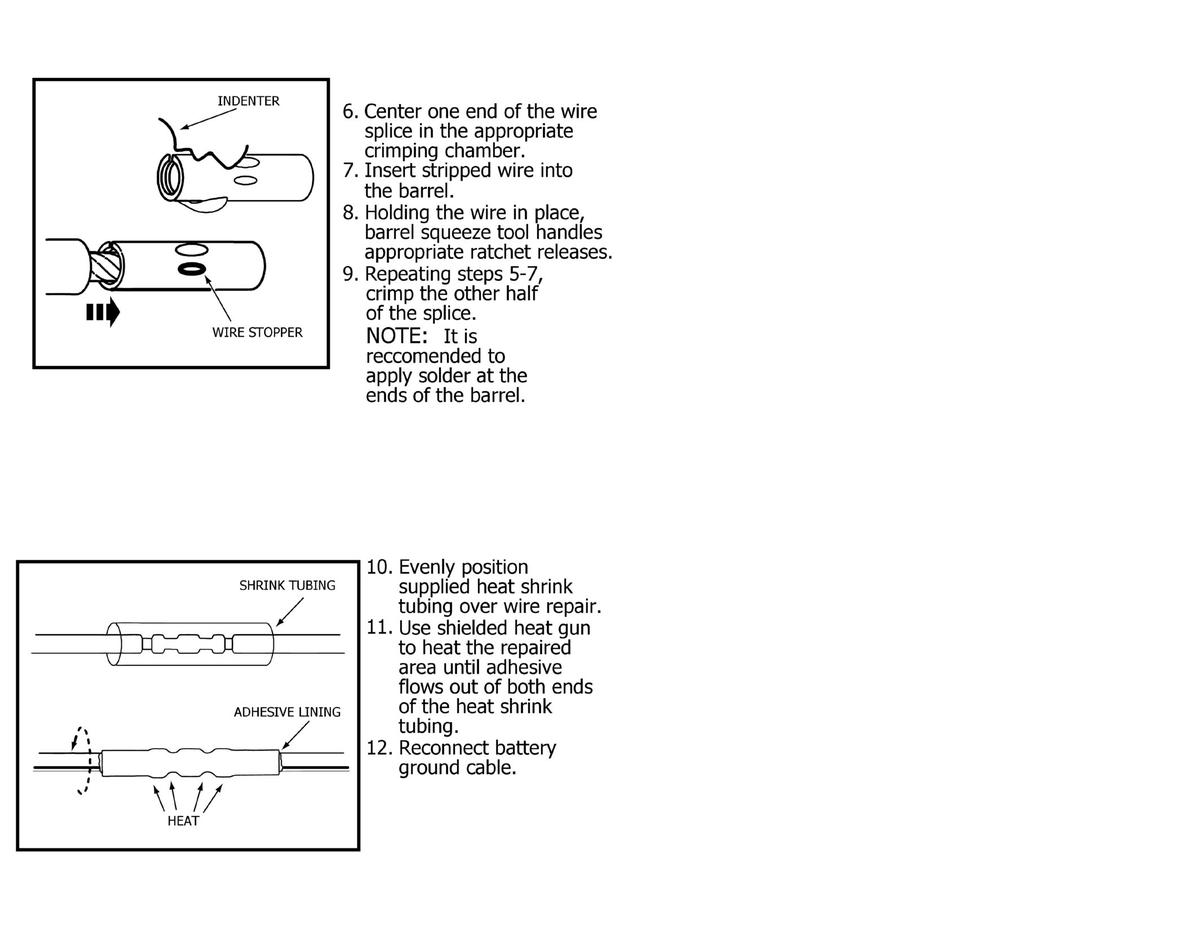

GFDWR163561Courtesy of FORD MOTOR COMPANY

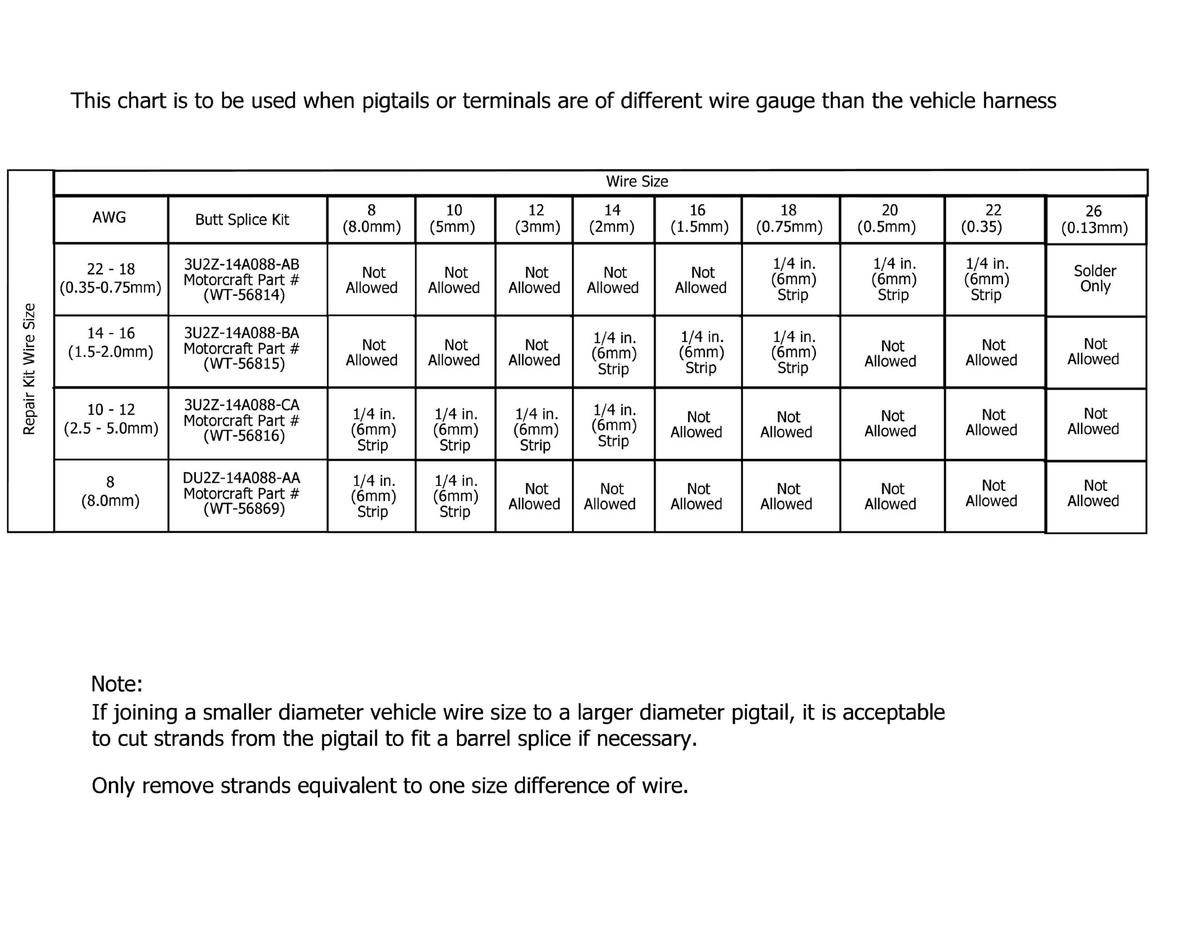

GFDWR163562Courtesy of FORD MOTOR COMPANY
