Steering Column: Installation
- To install, reverse the removal procedure.

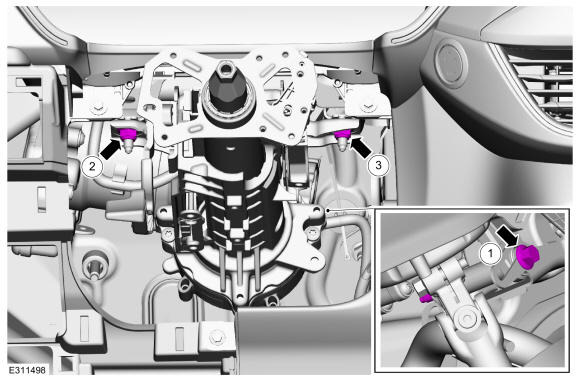

- Tighten the fasteners following the sequence shown.
Torque:1: 18 lb.ft (25 Nm)2: 18 lb.ft (25 Nm)3: 18 lb.ft (25 Nm)
- Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
-
NOTE: This step is only necessary when installing a new component.
If a new steering column was installed, download the PSCM configuration from the scan tool to the new PSCM. Refer to: Module Configuration - System Operation and Component Description .
-
NOTE: This step is only necessary when installing a new component.
To relearn steering angles, drive the vehicle above 64km/h (40 mph) for a minimum of 1 mile while maintaining the steering wheel in a straight ahead position with minimal steering input for at least 30 seconds.
