Throttle Body: Removal
- Remove the air cleaner and the air cleaner outlet pipe. Refer to: Air Cleaner . Refer to: Air Cleaner Outlet Pipe .
-
NOTE: When disconnecting the throttle body electrical connector disengage the red locking tab on the throttle body electrical connector by sliding it to the rear of the throttle body electrical connector, away from the throttle body. Squeeze the throttle body electrical connector while removing.
Detach the wire retainer, then disconnect the throttle body electrical connector.

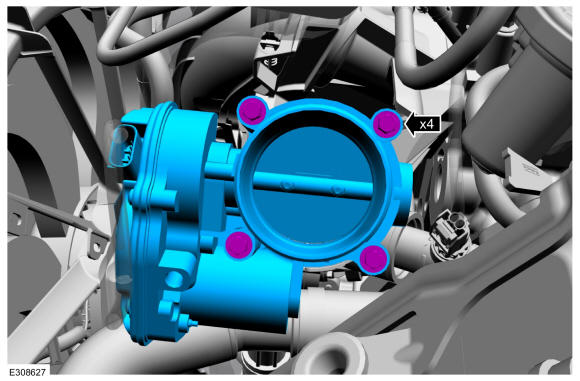

- Remove the throttle body bolts, then remove the throttle body.
