VC Codes

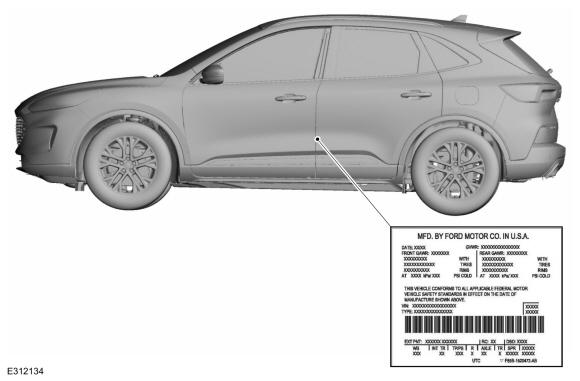

VC Label Locator
The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes GVW and tire information. If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.

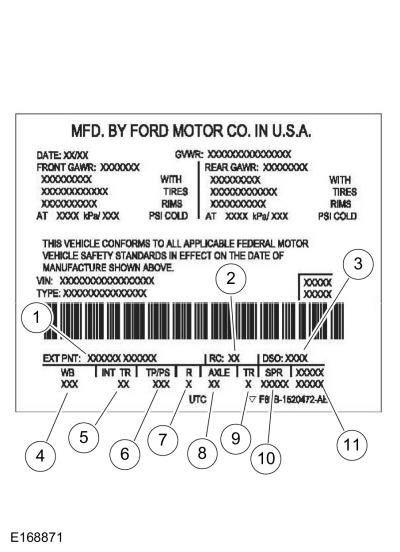

| Item | Description |
|---|---|
| 1 | Exterior paint code |
| 2 | Region code |
| 3 | DSO (District Special Order) code |
| 4 | Wheelbase code |
| 5 | Interior trim code |
| 6 | Tape/paint stripe code |
| 7 | Radio code |
| 8 | Axle code |
| 9 | Transmission code |
| 10 | Spring code |
| 11 | Powertrain calibration information |
Paint Code
Paint codes may be listed as a 2-part code. The first set of paint code numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color. All paint codes are a base coat/clear coat finish.
- Blank - No Paint
- AZ - Star White Metallic (tri-coat)
- B3 - Atlas Blue Metallic
- D4 - Lucid Red / Red Carpet (tri-coat)
- JS - Silver Radience
- K1 - Vapor Blue
- L8 - Cinnebar Red
- M7 - Carbonized Gray Metallic
- UM - Agate Black Metalic
- YZ - Oxford White
Wheelbase
The following identifies the vehicle wheelbase:
- 107 - 106.7 in (2, 710 mm) wheelbase
Interior Trim Codes
Interior trim codes are listed as a 2-part code. The first digit listed indicates the seat and fabric style. The second digit listed indicates the interior trim color.
Interior Trim Type
- C - Kylo/Eton cloth seats
- D - Salerno full leather seats
- E - Premium Vinyl seats
- H - Syntactic/Lux Vinyl activex trimmed seats
- V - Moonwalk/soft stitch cloth seats
Interior Trim Color Codes
- B- Ebony Black
- H - Ebony
- M - Ebony W/Red stitch
- W - Space Gray
Tape/Paint Stripe Codes
Tape and paint stripe codes do not apply.
Radio Codes
The following lists available radio codes:
- 1 - AM / FM stereo, 6 - Speakers, ICE Pack 21
- 2 - AM / FM stereo, CD player, 6 - Speakers, ICE Pack 27
- 3 - AM / FM stereo, CD player, 6 - Speakers, ICE Pack 22
- 4 - B and 0 Play® AM / FM stereo with SDARS (satellite digital audio receiver system), 10 - Speakers, ICE Pack 23
- 5 - AM / FM stereo with SDARS (satellite digital audio receiver system), 6 - Speakers, ICE Pack 24
- 6 - AM / FM stereo with SDARS (satellite digital audio receiver system), 6 - Speakers, ICE Pack 25
Axle Type
The following lists the available axle ratios and associated codes:
- 32 - 3.32 axle ratio
- 47 - 3.47 axle ratio
- 81 - 3.81 axle ratio
- 91 - 2.91 axle ratio
Transmission Codes
Available transmissions are as follows:
- 5 - automatic (H4F45 w/o ODC HEV / PHEV)
- 8 - 8 - speed automatic (8F35)
Spring Codes
Spring codes are listed as a 2-part code. The first 2 characters identify the RH and LH front springs. The third and fourth characters identify the RH and LH rear springs.
Front Springs
- Base part number - 5310
Rear Springs
- Base part number - 5560
