Front Brake Disc Shield: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- Remove the brake disc. Refer to: Brake Disc .

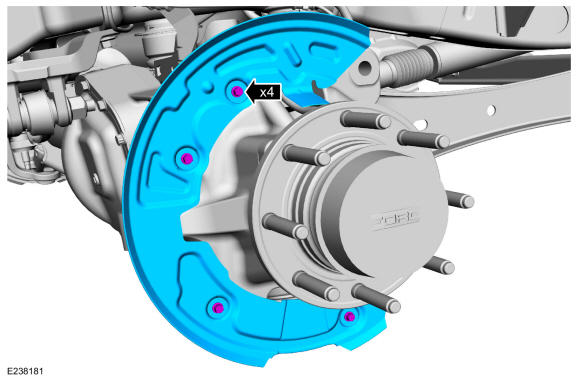

Vehicles with twin I-beam axle
- Remove the bolts and the brake disc shield.
Torque: 133 lb.in (15 Nm)

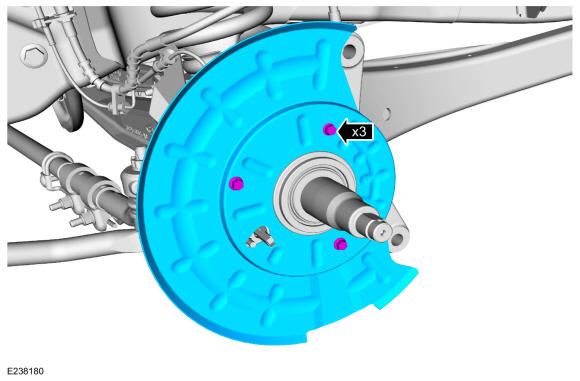

Vehicles with monobeam axle
- Remove the bolts and the brake disc shield.
Torque: 133 lb.in (15 Nm)
