Accelerator Pedal: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
To prevent setting Diagnostic Trouble Codes (DTCs), make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connector.
NOTE:
Vehicles with adjustable pedals, position the driver's seat to the full rearward position and, if possible, adjust the pedals to the full forward position.
Vehicles equipped with adjustable pedals

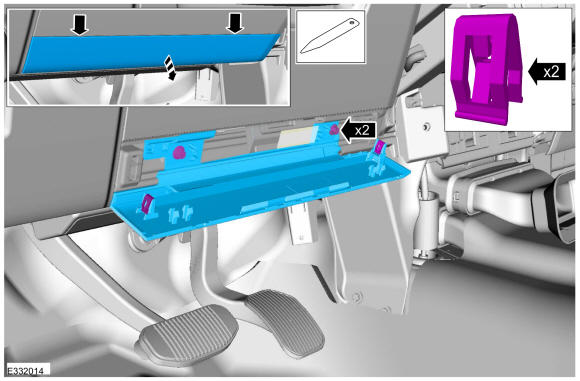

- Release the clips to open the access panel, remove the bolts and the access panel.
Torque
: 22 lb.in (2.5 Nm)

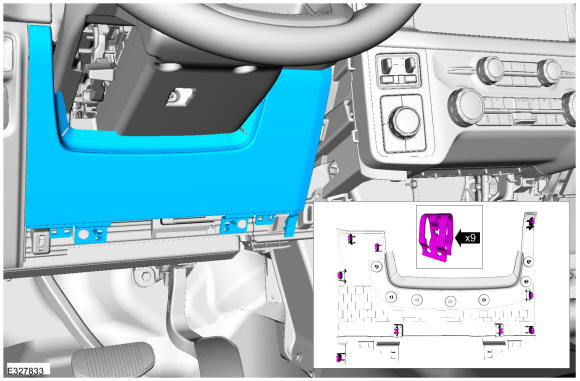

- Release the clips and remove the lower steering column trim panel.
-
NOTE: The door frame weather strip may need to be partially relocated.

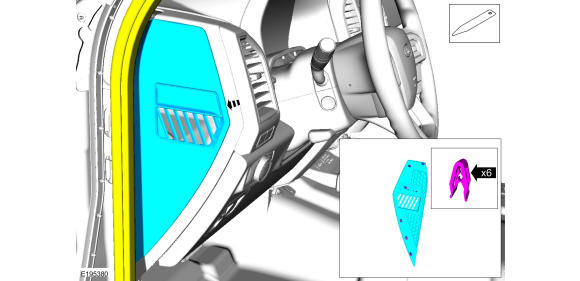

Release the clips and remove the LH instrument panel finish panel. Use the General Equipment: Interior Trim Remover
- Remove the following items:

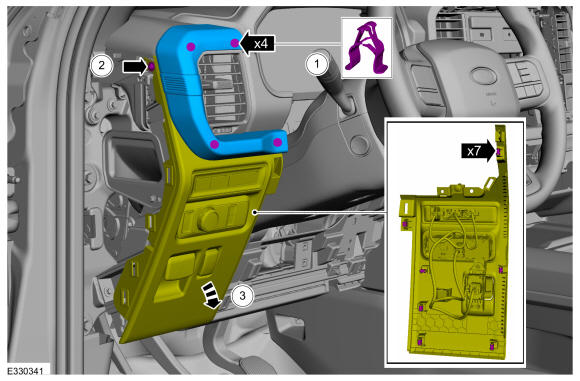

- Release the clips and remove the LH instrument panel finish panel.
- Remove the bezel assembly instrument panel cover upper mounting screw.
Torque
: 27 lb.in (3 Nm)
- Pull out the bezel assembly instrument cover by detaching the 7 clips and position the cover downward.
- Carry out the adjustable pedal indexing procedure. Refer to: Adjustable Pedal Indexing .

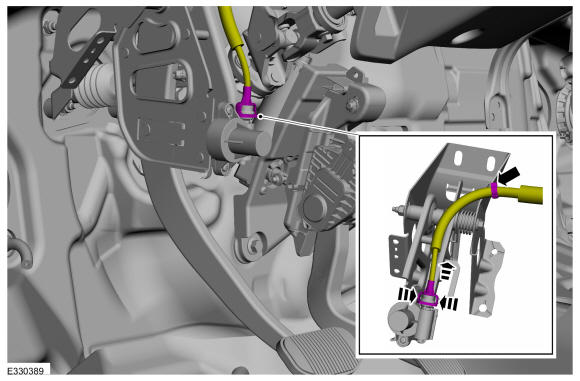

- Disconnect the adjustable pedal motor drive cable from the adjustable brake pedal drive.
-
- Disconnect the 2 accelerator pedal electrical connectors.

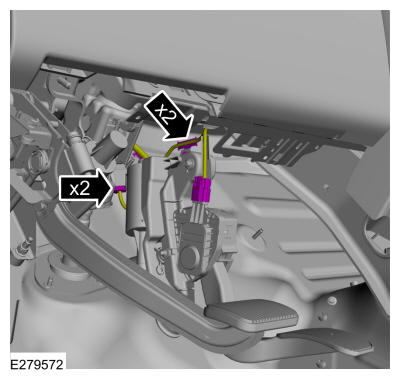

- Remove the wiring harness clips.
-

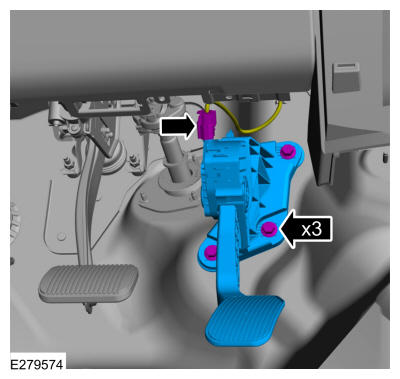

- Remove the 3 bolts and the accelerator pedal assembly.
Torque
: 155 lb.in (17.5 Nm)
Accelerator Pedal -- Fixed

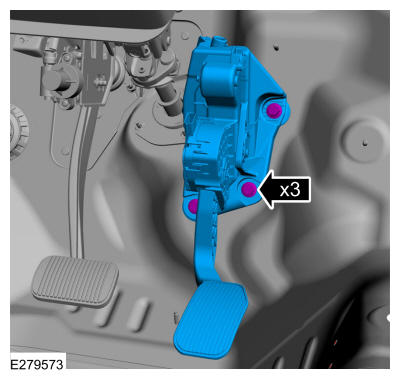

- Remove the 3 bolts and the accelerator pedal assembly.
- Disconnect the accelerator pedal sensor electrical connector.
- Remove the bolts and the accelerator pedal assembly.
Torque
: 155 lb.in (17.5 Nm)
